Automatic Roll To Roll Screen Printing Machine
Specfication of machine
Name |
Automatic Screen Printing Machine |
|
Model |
LTA-6080 |
|
Print Area |
mm |
600*800 |
Print Speed |
t/h |
0-2500 |
Screen Frame Area |
mm |
9000*1200 |
Max. Paper Width |
mm |
620 |
Air Source |
MPA |
0.4-0.6 |
Power |
V/W/A |
Single Phase 220V 3kw 15A |
Frame Regulating Variable |
mm |
60 |
Printing Material Thickness |
mm |
0.02-0.5 |
Weight |
kg |
950 |
Gross Weight |
kg |
1100 |
Machine Size |
mm |
L3380*W1260*H1650 |
Packing Size |
mm |
L3530*W1460*H1950 |

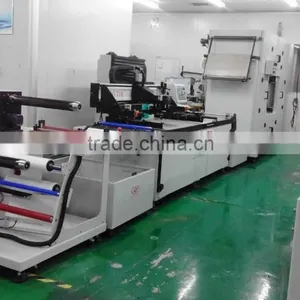

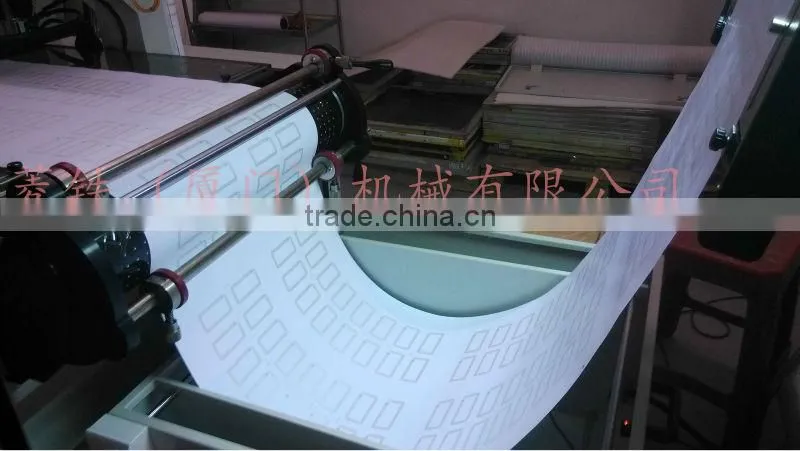

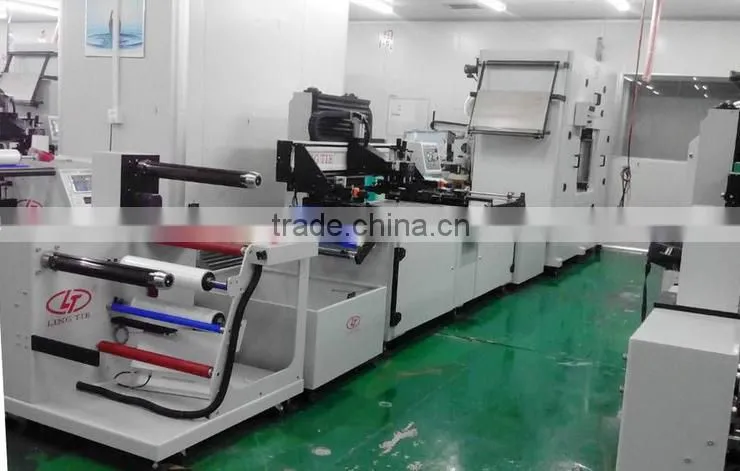

Picture of machine
Main features
Machine process
Raw material →Automatic feeding machine (double-sided dedusting,removing film,electrostatic eliminating)→Automatic printing ( automatic punching, printing, QC, automatic feeding )→Automatic oven (be self-polishing , protective film, attach tape, release paper ) →Automatic receiving →Automatic punching machine( cut)→End product.
FAQ
Q: Are you manufactory or trade company?
A: We are the manufactory in Xiamen,Fujian province,China
Q: Can you make particular design according to our requirements?
A: Yes,we can make a special change according to your requirement.
Q: What’s the covering area of complete equipment,and how many worker for the whole process?
A: About 7m length 3m width,only 1-2 people to operate. directly save costs.
O: What’s the speed of your equipment?
A: 20-70 print per minute(about 20 meters), about 3000 papers/hour. More than 6 times of production efficiency than semi-automatic.
Q: What are your payment terms?
A : 30% deposit and balance T/T against copy of Bill of Landing or L/C at sight.
Q; Where certificate can you pass?
A: CE, IAF and ISO90001:2008.
Q: What is your company’s production capacity?
A: 30 Set/ Set/ Month
After-sales service
1,We have a rich experience,technical good,service awareness ahead of the professional team, can be timely and effective solve the problem for you.
2,Installation and debug machine for you without any charge.Also,giving a technical training for your employees.
3,All of our machines can have one year guarantee and lifelong maintenance.
4,We can also provide you with printing materials, printing ink and solvents and other raw materials.
Contact us
TEL:86-13559215189
FAX:86-592-3780909
SKYPE:lingtiexm
Contact person: Charlie Liu
