Home > Products > Rigid-Flex PCB > Gold Plated HF Antenna PCB

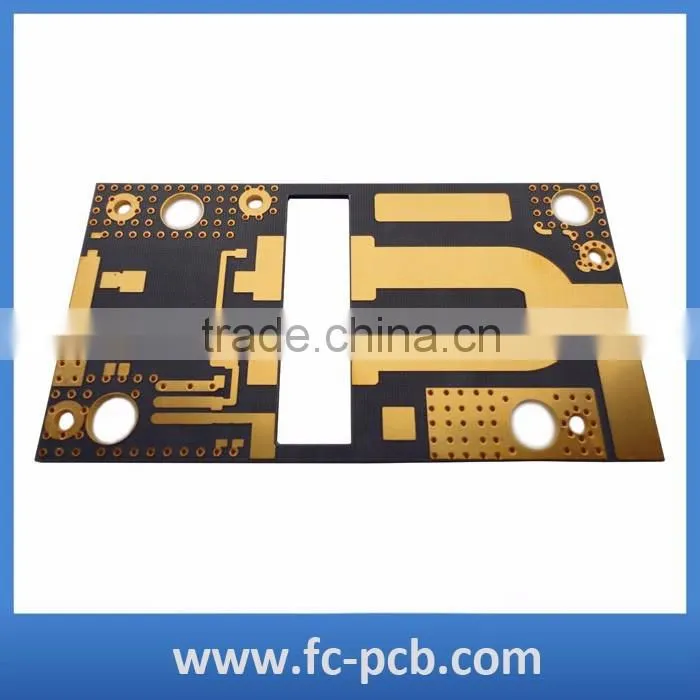

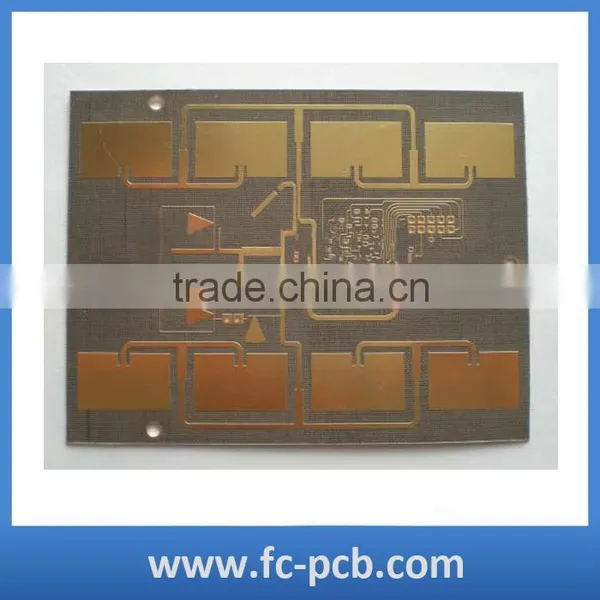

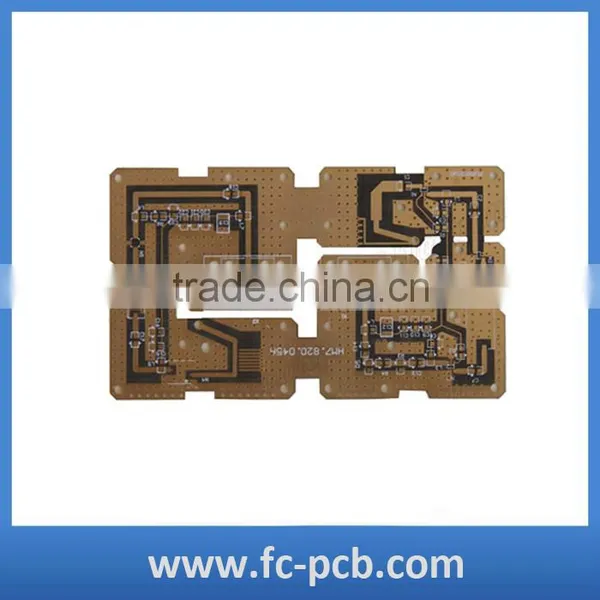

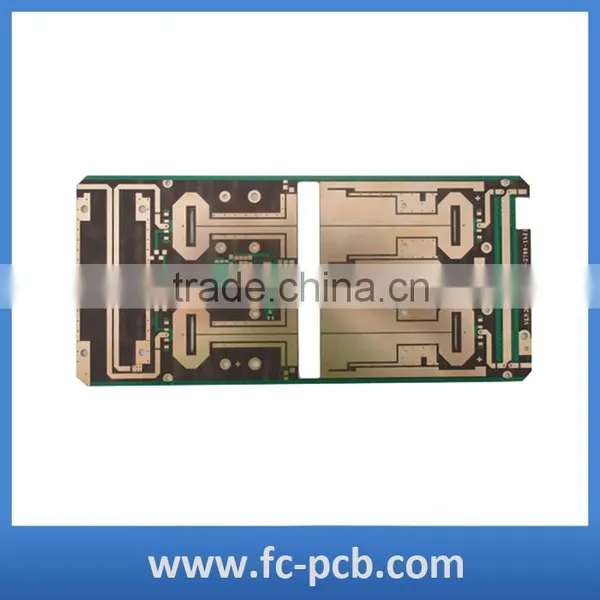

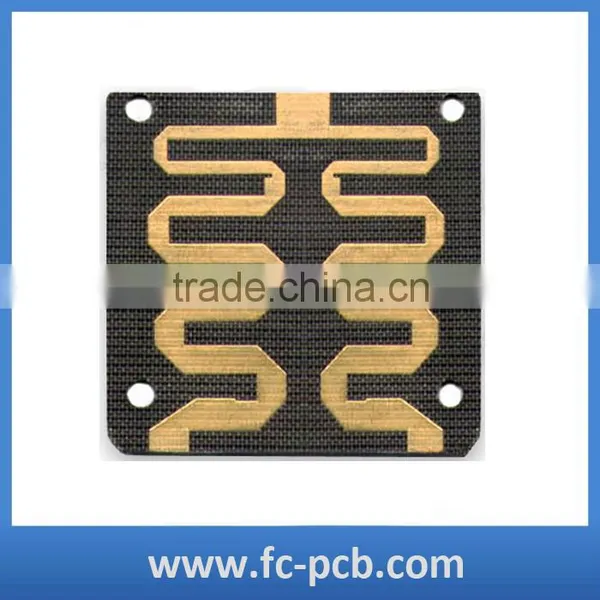

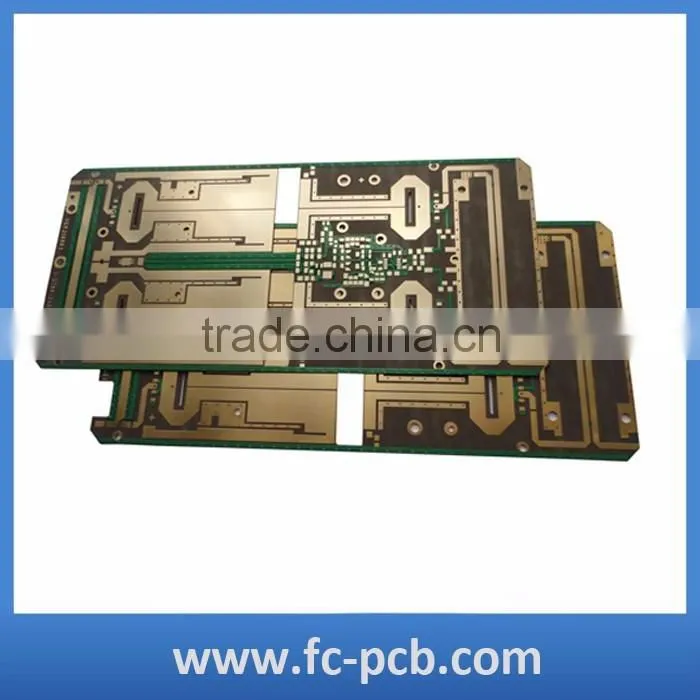

Gold Plated HF Antenna PCB
- 30000 Square Meter / Square Meters per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FC | Model Number: | fc-pcb |
Base Material: | fr-4 | Copper Thickness: | 1OZ | Board Thickness: | 1.6 |
Min. Hole Size: | 0.15mm | Min. Line Width: | 0.075mm | Min. Line Spacing: | 0.075mm |
Surface Finishing: | ENIG, Gold Plating, HAL, Plating Pb-Sn |
Product Description
Gold Plated HF Antenna PCB
Product Description |
|
HF pcb
HF Antenna pcb
Antenna pcb
Company Info |
|
We product all kinds of Flex pcb and Rigid flex pcb which are widely used in modern portable electronics and devices.such as Cell pone, key board, LCD module, Disk cable and etc.
1.With 12 years experience in circuit board,Printed Circuit Board field to serve your needs
2.Competitive circuit board, Printed Circuit Board price with high quality
3.Excellent service and prompt delivery
4.Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet ROHS REACH standard
Our services |
|
- OEM/ODM/EMS Services for PCBA:
- PCBA, PCB Board assembly: SMT & PTH & BGA
- PCBA and enclosure design
- Components sourcing and purchasing
- Quick prototyping
- Plastic injection molding
- Metal sheet stamping
- Final assembly
- Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
- Custom clearance for material importing and product exporting
Factory and Technical Info |
|
- Capability - SMT
- Lines 9(5 Yamaha,4KME)
- Capacity 52 million placements per month
- Max Board Size 457*356mm.(18”X14”)
- Min Component size 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
- Speed 0.15 sec/chip,0.7 sec/QFP
- Capability - PTH
- Lines 2
- Max board width 400 mm
- Type Dual wave
- Pbs status Lead-free line support
- Max temp 399 degree C
- Spray flux add-on
- Pre-heat 3
- Technical Data:
- Lead Time For Production Orders:
PCB Category | Sample Lead time | Mass production lead time |
Single sided PCB | 1~3 days | 4~7 days |
Double sided PCB | 2~5 days | 7~10 days |
Multilayer PCB | 7~8 days | 10~15 days |
PCB and Assembly | 8~15 days | 15~30 days |
Testing |
|
AOI Testing
- Check for solder paste
- Check for components dow n to 0201"
- Check for missing components, off set, incorrect parts, polarity
- BGAs
- Micro BGAs
- Chip scale packages
- Bare boards
- Power-up Test
- Advanced Function Test
- Flash Device Programming
- Functional testings
Packing and Transportation |
|
Our partners |
|
FQA |
|
Are my design files secure when I send them to you?
Your files are held in complete safety and security while Fulltronis is in possession of them. Your files are never shared nor will any third parties have access to your design files.
Do you have a formal,documented Quality System?
If yes,which model is your Quality System based on?
Yes,our quality system is based on TS 16949,ISO9001
Do you have after-sales product servicing available for your customers?
Yes,for any quality problems Fulltronics will take our responsibility to solve it for you any time. And problems make us grow up.
Quote Requirements for PCB and PCB Assembly:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
FQA |
|
Contact Us
- Shenzhen Fulltronics Technology Co., Ltd.
- Contact nameJasen Ho
- Phone86-755-83975258
- Address31C,Block 2,DuShiYangGuang Building,No.6017,ShenNan Rd,Futian,Shenzhen,China Shenzhen,Guangdong
