Rigid-flex circuit boards

Name: Rigid-flex circuit boards
Brand: OEM
Price: Negotiable

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 25000 Square Meter / Square Meters per Month
Port shenzhen hongkong
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	OEM	Base Material:	FR4
Copper Thickness:	1oz	Board Thickness:	1.6mm	Min. Hole Size:	0.1mm
Min. Line Width:	0.1mm	Min. Line Spacing:	0.1mm	Surface Finishing:	Immersion Gold

Product Description

Specifications

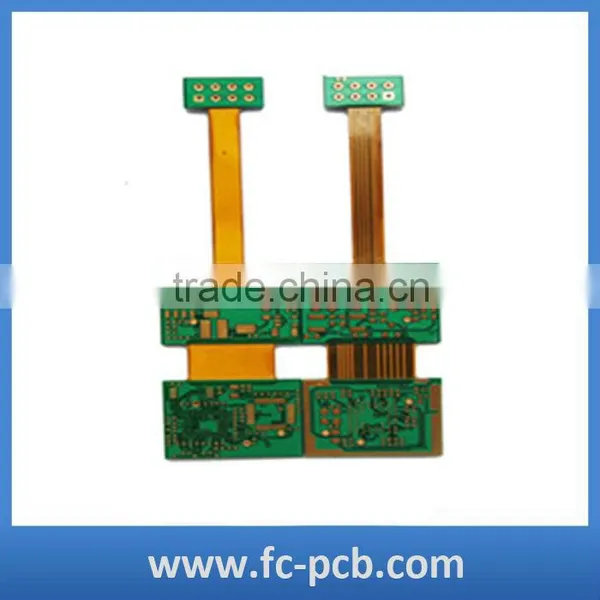

Rigid-flex circuit boards
Efficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Delivery

Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly

Flex & Rigid-flex circuit boards

1. Material Combination Polyimide & FR4

2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count

3. Improves design freedom

4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.

ADVANTAGES:

We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.

TECHNICAL DATA:

Capabilities	Standard Production	Advanced Production
Layer Count / Technology	2 layer - 10 Layer	2 layer - 12 Layer
PCB Thickness Range	75µm - 1600µm	50µm - 2000µm
Materials	Polyimide / FR4	Polyimide / FR4
Thinnest Core	50µm without adhesive	25µm without adhesive
Copper thickness	9µm / 12µm / 18µm / 35µm	9µm / 12µm / 18µm / 35µm
Copper Plating Holes	20µm (25µm)	13µm / 20µm / 25µm
Min. Line / Spacing	125µm / 125µm	65µm / 65µm ( LDI )
Soldermask Registration	+/- 100µm (Photoimageable)	+/- 50µm (Photoimageable)
Min. Soldermask Dam	100µm	65µm
Soldermask Color	amber (green)	amber (green)
Cover Layer Polyimide	laser cutting / punching / drilled	laser cutting / punching / drilled
Production Panel	609,6 mm x 457,2 mm 250 mm x (250 - 410 mm)	609,6 mm x 457,2 mm 250 mm x (250 - 410 mm)
Min. Annular Ring	150µm	150µm
smallest drill	0,28 mm	0,2 mm
smalles Routing bit	0,8 mm	0,8 mm
Surfaces	OSP / Immersion Tin Immersion Ni/Au Plated Ni/Au	OSP/ Immersion Tin Immersion Ni/Au Plated Ni/Au
ID print	White	White
Adhesive Tape	Yes	Yes
SMT Service	Yes	Yes
Stiffner material	FR4,PI	FR4,PI

LEAD TIME FOR PRODUCTION ORDERS:

	Sample Lead time	Mass production lead time
Single sided PCB	1~3	4~7
Double sided PCB	2~5	7~10
Multilayer PCB	7~8	10~15
PCB and Assembly	8~15	15~20

QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
