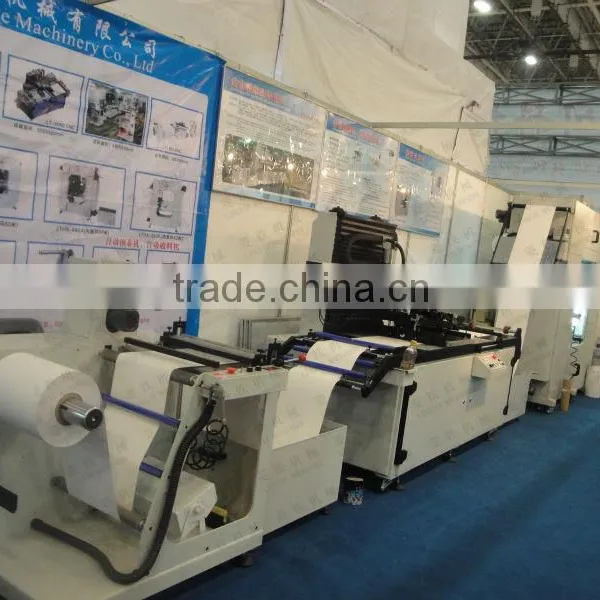

Help CenterMachinery of the Press to Print IMD,IML,FPC,rubber Vulcanization
Related Products
-
IMD IML Printing MachineryUS$ 20,000 - 50,000MOQ: 1 Set -
IML FPC Roll Style Screen Printing Machinery for SaleUS$ 40,000 - 60,000MOQ: 1 Set
-
Reel Transparent Film Ceramic Decals Printing Machine,silk Screen Printing MachineUS$ 25,000 - 40,000MOQ: 1 Set
-
Silk Screen Printing IMD,IML,FPC,rubber Vulcanization,FactoryUS$ 20,000 - 50,000MOQ: 1 Set
-
Roll to Roll Screen Printer for Various Nameplate,IMD,IML,FPC,rubber VulcanizationUS$ 30,000 - 70,000MOQ: 1 Set
Model No. |
LTA-50120 |
Printing material thickness |
0.02-0.5 mm |
Screen Frame Area |
1600x800mm |
Squeegee angle |
0-30° |
Max. Print Area |
500x1200mm |
Frame regulating variable |
60 mm |
Max. Paper Width |
520mm |
Bench height |
930 mm |
Printing Speed |
20-50 t/min |
Height of screen frame |
25 mm |
Power |
Main Drive Motor |
0.4kw |
|
Pulling Drive Motor |
0.75 kw |
||
Air Suction Motor |
0.75kw |
||
UV Drier UV |
5.5x2kw (optional) |
||
Machine Weight |
Net Weight |
1200kg |
|
Gross Weight |
1400kg |
||
Power |
220V 3kw (single-phase power) |
||
Remark: can be designed against your need | |||
Machine Size |
L3960 x W1160 x H1650 mm |
||
Packing size |
L4060 x W1260 x H1800 mm |
||
1. Adopt Japan servo motor and CNC control system.running stability, high precision,high torque,fast speed and wear resistance.
2.Adopt Mitsubishi (Japan) frequency converter and adjusting device,easy to regulate speed, 20-70 prints/minute
3.Import Germany magic eye,good for color match and accurate.
4.Pre-set the quantity of sheets by electronic counter.QC lamp for chromatism.
5.Photo sensor auto-detection system for no films.
6.Double-sided scraper,extend service life.
7.Electrostatic painting,stoving varnish and solvent-resistance on the surface of machine.
8.Connecte to corona/die-cutting/slittingQC/ UV dryer and rewinder machine accroding to actual situation.
9.Only one person to operate,replace traditional and semi-automatic method.Improve six times of production efficiency, which reduce cost effectively.
Q: Are you manufactory or trade compamy?
A: We are the manufactory in Xiamen,Fujian province,China
Q: Can you make particular design according to our requirements?
A: Yes,we can make a special change according to your requirement.
Q: what’s the covering area of complete equipment,and how many worker for the whole process?
A: About 7 minters length 3 minters width,only 1-2 people to operate. directly save costs.
O: What’s the speed of your equipment?
A: 20-70 print per minute(about 20 meters), about 3000 papers/hour. More than 6 times of production efficiency than semi-automatic.
Q: What are your payment terms?
A : 30% deposit and balance T/T against copy of Bill of Landing or L/C at sight.
Q; Where certificate can you pass?
A: CE, IAF and ISO90001:2008.
1,Good technical,rich experience to help you solve the problem timely and effectively.
2,Install and modify equipment without auy charge. give a technical training for your emplyees.
3,One year guarantee,lifelong maintenance
