large dimension led aluminium PCB

Specifications

large dimension led aluminium PCB
Efficient Quote,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast delivery



Your Source for Printed Circuit Board Manufacturing & Assembly

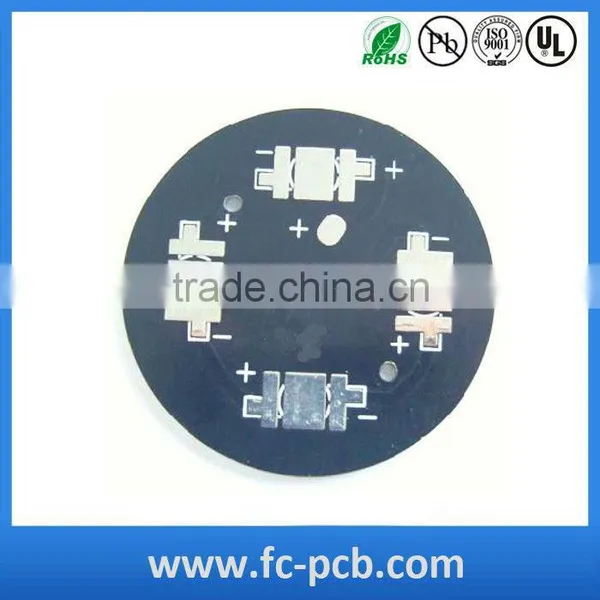

LED Star board PCB



FC Electronics provides PCB prototype fabrication and PCB production capabilites with no limits!We produce a wide range of aluminum pcb which used in LED technologies



LAYER STACK UP:
1. Circuit layer: the equivalent of an ordinary PCB,copper thickness from 1oz to 4oz.
2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance.Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
3. Based Layer: a metal substrate,usually aluminum or copper may be chosen.



TECHNICAL DATA:

	Capability
Product Type	Al Clad PCB 1 layer~2 layer
Maximum Panel size	20"*24" (1170mm*600mm)
Copper thickness	0.5oz, 1oz, 2oz, 3oz and 4 oz
Dielectric Thickness (to Substrate)	0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Substrate Core Thickness	0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm
Finished Board Thickness	0.4mm To 4.0mm
Thickness Tolerance	+/-10%
Aluminum Machining	Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available
Min. Finish hole size	0.25mm
ing voltage	2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
Min.Track Width	0.2mm (8mils)
Min.Track gap	0.2mm (8mils)
Min. SMD pad pitch	0.2mm (8mils)
Surface Finishing	HASL, HASL Leadfree, Immersion gold, Flash gold, OSP
Soldermask color	White, Black, others Available
Legend color	Black, White, others Available
Etest	YES
Rohs	YES
Reference Standard	IPC-A-600G Class 2
Special holes	Spot facing, Cup holes
Data Input	Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP, POWER PCB,ODB+.(TGZ)



DETAILED PRODUCT DESCRIPTION:
Advantage: High Heat dissipation, Electromagnetic Shielding, High Mechanical Strength, Excellent processing performance.
Application: Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application,  lighting, game machine,  industrial control, power, automobile and high-end consumer electronics, ect.



LEAD TIME FOR PRODUCTION ORDERS:

	Sample Lead time	Mass production lead time
Single sided PCB	1~3	4~7
Double sided PCB	2~5	7~10
Multilayer PCB	7~8	10~15
PCB and Assembly	8~15	15~20





QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
