Home > Electrical & Electronics > Electric Motor > DC Motor > Low Noise, Customer Motor Structure Avaliable Motor Engine

Low Noise, Customer Motor Structure Avaliable Motor Engine

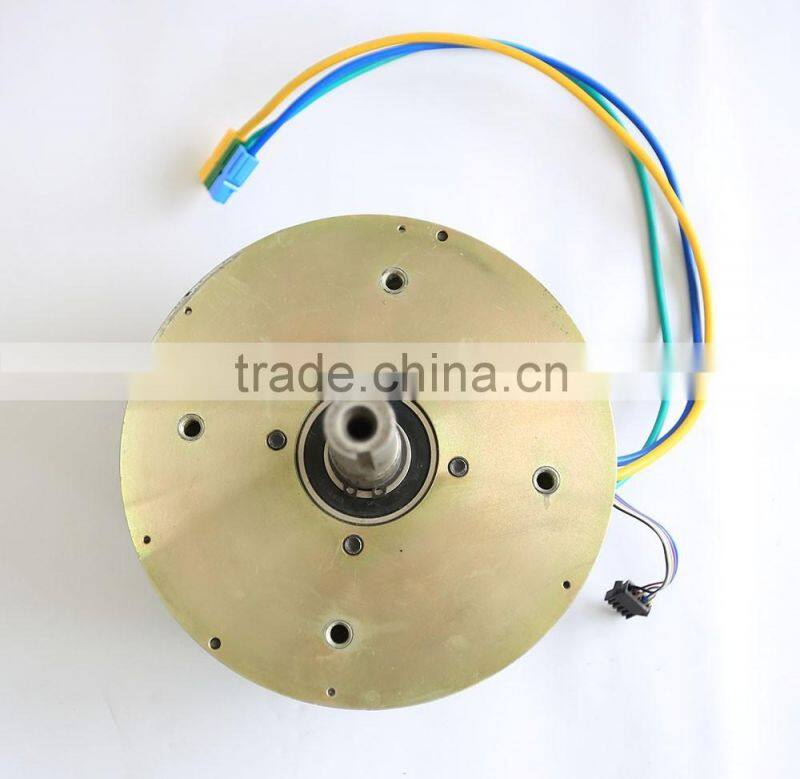

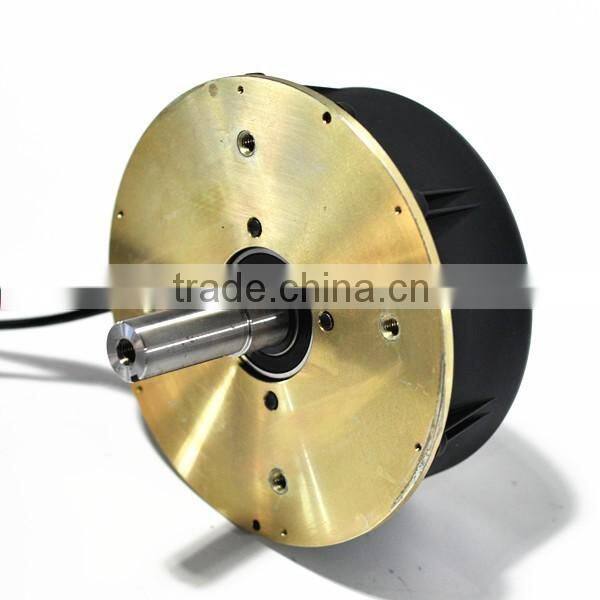

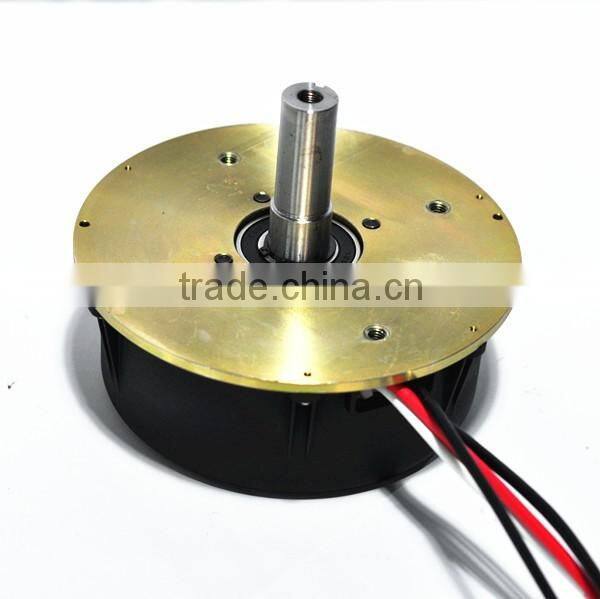

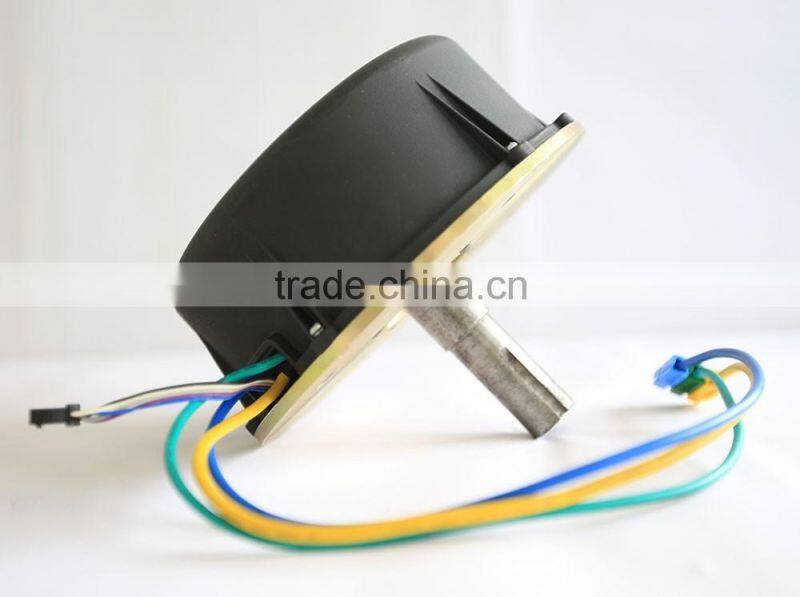

Low Noise, Customer Motor Structure Avaliable Motor Engine photo-1
Low Noise, Customer Motor Structure Avaliable Motor Engine photo-2
Low Noise, Customer Motor Structure Avaliable Motor Engine photo-3
Low Noise, Customer Motor Structure Avaliable Motor Engine photo-4
Low Noise, Customer Motor Structure Avaliable Motor Engine photo-5
US$ 1 - 100 MOQ: 4 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MAC Motor
Model Number:
M12980-1
Payment & Shipping
Payment Methods:
Port of Shipment:
according to customers' requirement
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name MAC Motor
Model Number M12980-1
Usage Car, Electric Bicycle, Fan, Home Appliance, Other, Car, Electric Bicycle, Fan, Home Appliance, industrial applications
Certification CE
Type Other, brushless geared DC motor, geared, brushless motor
Torque High Torque
Construction Other, out-runner type
Commutation Brushless
Protect Feature Totally Enclosed
Speed(RPM) 2000-4000rpm
Output Power 1000-1500w
Voltage(V) 24/36/48V
Efficiency Other, >80%
Product Description

The Mac M12980 Series has a larger diameter. It offers higher power output than the M12500 series and is typically configured with a rated output power of typically between 1000W and 2000W, rated speed of 2000rpm to 3500rpm and supply voltage of 24V to 48V.

Product Name
M12980-1
Rated Power
1000-1500W
Rated Voltage
24/36/48V
Speed Range
2000-4000RPM
Efficiency
>80%
Noise
<65dB
Weight
5KGS
Applications
Industrial application
Products Show

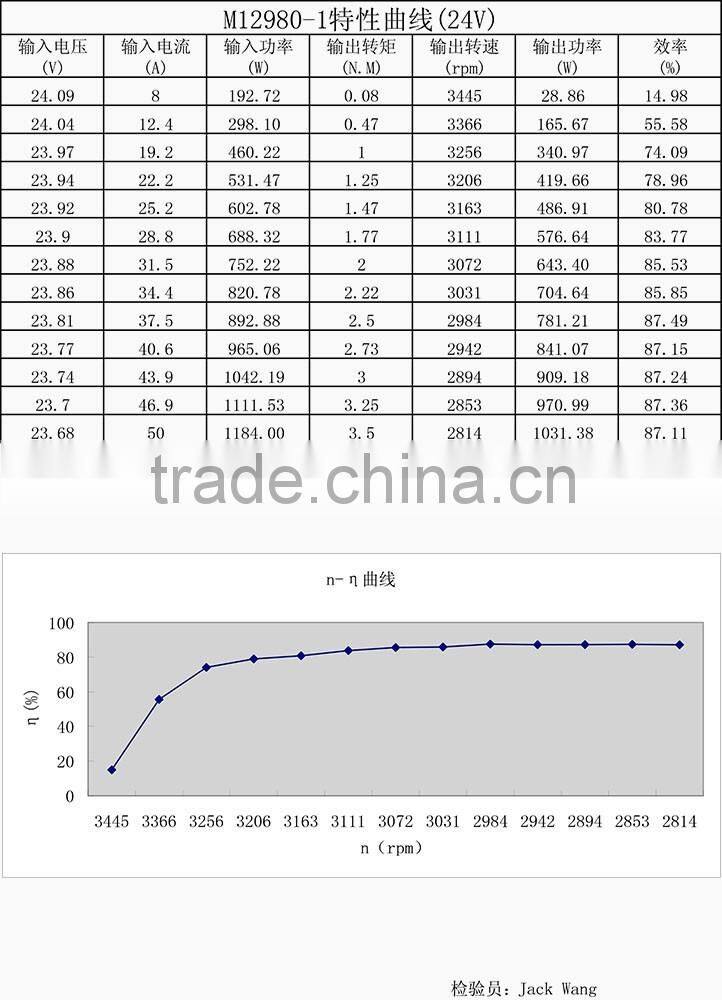

Performance Data
Our Company

Mac Motor is a manufacturer and developer of electric motor systems.

We have designed and manufactured brushless motors and control systems for a wide range of products requiring high torque and high efficiency, including: hub, chain or belt driven BLDC systems for E-Bike, E-Scooter and other LEVs, pumps, mowers, battery powered equipment, automotive, air moving, floor care and numerous other applications. We are committed to environmentally friendly, electric powered motor system solutions.

Factory

Equipment


Workshop


Workshop


Our Service

Complete Motor and Control System Solution.

Our products range from 200W to 3000W rated output and are well accepted by customers in North America, Europe, Australia and Asia. Our extensive range of test equipment enables us to ensure our newly developed products meet the design criteria and that our production passes QC standards. We understand that the motor is only one part of the system and always strive to offer a complete solution.


We are a customer focused organization with International Sales and Engineering team. We have the scale to provide high quality, high performance, cost effective and innovative products. We are a Foreign Invested Enterprise based in Pudong, Shanghai, only a short distance from Pudong International Airport, enabling easy factory visits and fast, reliable shipping.


We are flexible and are happy to discuss your specific requirements. We appreciate your interest in our company and look forward to a bright and greener future together.

Advanced testing equipment


Skilled technical workers


Strict quality control


Our Certification
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
