2016 MAC Screw Freewheel Version Ebike Motor Fat Tire Bikes Quality Choice
US$ 225.00 - 260.00
MOQ: 8 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Mac Motor
Model Number:
53621HR-CD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MAC 200w-1000w Motor ScooterUS$ 80.00 - 135.00MOQ: 1 Piece -
MAC 200w-1000w Electric Scooter dc MotorUS$ 80.00 - 135.00MOQ: 1 Piece
-
High Torque Three Phase Electric MotorUS$ 1 - 100MOQ: 4 Pieces
-
Shaft Output Class Leading Electric MotorUS$ 1 - 100MOQ: 4 Pieces
-
Pump Electrical MotorUS$ 1 - 100MOQ: 4 Pieces
Place of Origin
Shanghai, China
Brand Name
Mac Motor
Model Number
53621HR-CD
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other
Certification
CE
Type
Gear Motor
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Totally Enclosed
Speed(RPM)
300rpm-500rpm
Output Power
500w
Voltage(V)
48v
Efficiency
IE 4
Mac Motor for ebike
Here is the brief introduction of MAC geared hub motor:
The Mac Motor is a High Power, High Torque, Geared Hub Motor intended for Spoked Bicycle wheels from 16” to700C. Rated Output power is typically between 500 to 1000W depending upon the motor winding selected and the operating voltage. An internal 5:1 planetary gear with clutch is implemented. New stronger Composite Gears are now standard on the 500W motors to ensure a long trouble free life. The gear reduction allows the motor to spin at a higher and more efficient rpm greatly improving the starting torque and hill climbing ability when compared with comparable Direct-Drive motors, whilst also being smaller and lighter than a comparable DD motor. The clutch offers minimal drag when not under power. Unlike the majority of geared motors on the market, the Mac 500W is built for the high power demands of the US market, not the highly restricted EU market. The slower wound versions could still be used and stay within the EU speed limit, for those requiring more hill climbing ability than the typical 250W motors can offer.
The Mac motor uses a 32 magnet, 16 pair pole motor unlike the vast majority of Geared motors on the Market which use an 8 pair pole motor. This further improves torque, but does mean that the electrical rpm or commutation frequency is higher than typical geared motors and much higher than Direct-Drive motors, so some care with controller selection is required. The available space for the disk is a little limited at 15mm between the side casing and the inner face of the disk, so some care when selecting a suitable caliper is required or some spacing of the disk away from the side cover and possibly modification of the caliper mounting may be required for some models of disk brake caliper. The Mac 500W rear motor allows both disk brake and 7 speed freewheel to be used on the standard 135mm dropout, which many of the small 250W geared motors cannot achieve. The front 500W Mac motor is now available with disc brake and is compatible with standard 100mm fork dropout.
Specification:
6 turn high speed motor - 400rpm loaded at 36V, 520rpm loaded at 48V
8 turn standard motor - 320rpm loaded at 36V, 400rpm loaded at 48V
10 turn torque motor - 255rpm loaded at 36V, 320rpm loaded at 48V
12 turn low speed extra torque motor - 200rpm loaded at 36V, 250rpm loaded at 48V

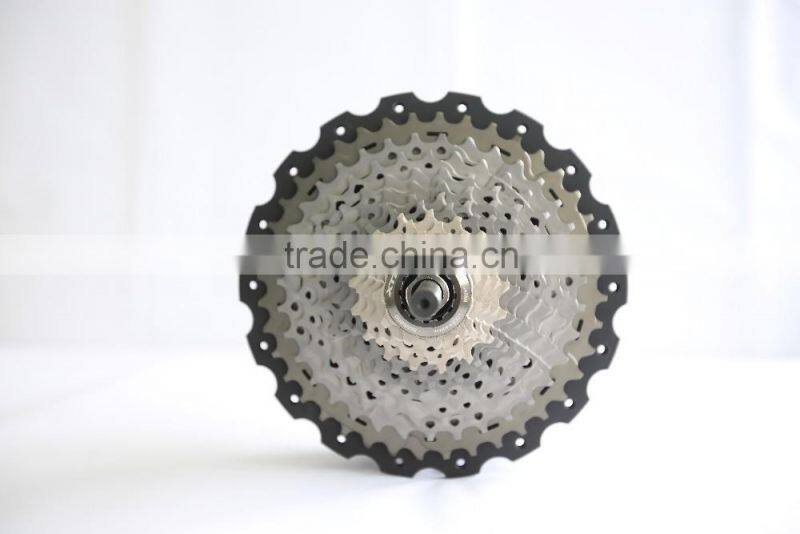

Accepts disk brake and 7 speed freewheel with standard 135mm rear dropout.
As a guideline you can expect approximately the following real world speeds for the above windings on 12S LiFePO4 battery pack (approximately 38V under load) in a 26" rim on the flat, no pedaling with a rider plus bike weight of approximately 130kg total (286pounds):
6T - 45kph (36v), 65kph (48v)
8T – 39kph (36v) , 50kph (48v)
10T – 32kph (36v) , 40kph (48v)
12T – 25kph (36v) , 32kph (48v)
Product Introduction
Upgrade version and standard version:
The difference between our upgrade version and standard version is that, the upgrade version uses better motor materials which can help motor have higher efficiency and less heat, and it also has overheat protection and it uses better Anderson connector for phase wire.
Features
1. High Efficiency and High Power Handling. It takes a lot to get a Mac Motor Hot!.
2. Strong acceleration and excellent climbing ability.
3. Disc Brake compatible (front and rear, model specific), 7-speed freewheel, standard 135mm axle width for rear, standard 100mm axle width for front.

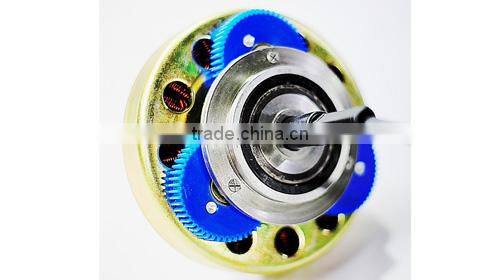

4. Epicyclic Reduction Gear and High Pole Count motor system means more torque and power in a compact and lightweight package.
5. Clutch ensures effortless riding experience.
6. Long Life, Maintenance Free, replacement parts readily available with low cost and user serviceable if required.
Product Parameters

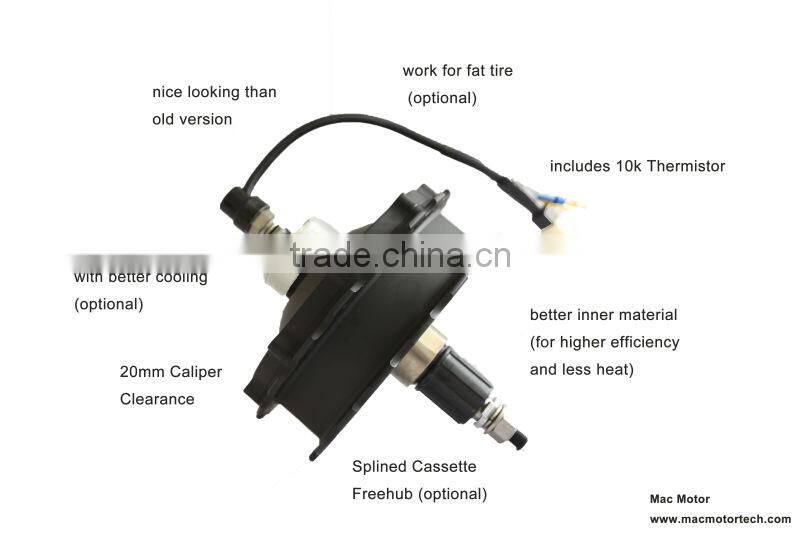

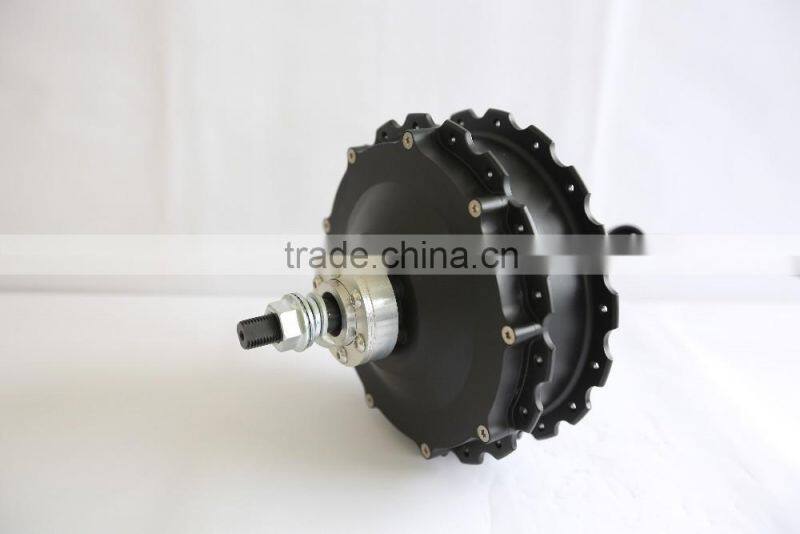

Product Details Show
Why Choose Us
WINDING MACHINE

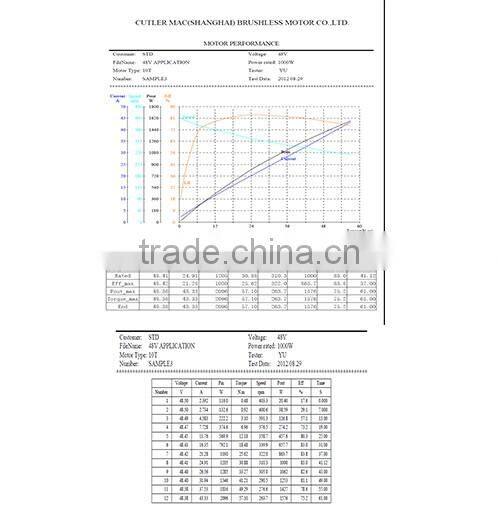

TEST EACH MOTOR
CE
Product Processing
Product Packing
Main Products
HUB MOTOR
Hub motor for electric bicycle,golf cart,ATV etc.
M12500-2
e-bike,e-scooter,
textile machinery and
medical equipment etc
textile machinery and
medical equipment etc
M12500-3A
e-bike,e-scooter,
textile machinery and
medical equipment etc
textile machinery and
medical equipment etc
M12980-1
Industrial application
M12500-3
e-bike,e-scooter,
textile machinery and
medical equipment etc
textile machinery and
medical equipment etc
Ebike kit
