Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 360mm | Place of Origin | Shandong, China | |
| Brand Name | BORUI | Model Number | CK6136 | |
| Voltage | Customer's Requirement | Power(W) | 10kw | |
| Dimension(L*W*H) | 2000mmx1200mmx1620mm | Weight | 1600kg | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

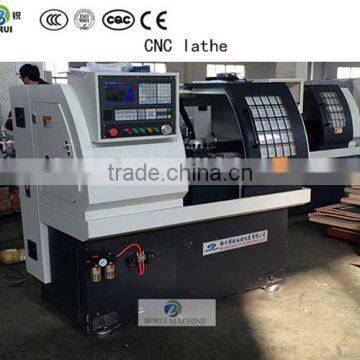

Cnc Lathe Small Machine Tool Provided By China Lathe Manufacturer
Reasonable structure, the parts are from the top domestic manufacturers of the products, to ensure product quality and service life
Linear guide rail, higher accuracy, more stable. Reasonable product structure, long service life.
Electrical equipment uses PLC programmable controller and imported electricalcomponents, such as: ABB, Schneider, etc
Products before leaving the factory, have passed the strict quality inspection, we know, excellent product quality is the foundation of enterprise survival
Automatic Lathes CK6136
The device can automatically complete the internal and external cylindrical surface, cone, arc surface, surface processing, also can realize to metric, inch thread processing.
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cuttin
2. 4 position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration : manual chuck
5. Optional configuration: hydraulic chuck
model | TCK6136 |
maximum turning diameter | 360 |
maximum machining length | Chuck 490/collet 580 |
X/Z axis Maximum stroke | 280/580 |
X/Z axis minimum movement unite | 0.001MM |
Spindle hole diameter | 48 |
Spindle Drawn tube diameter | 41 |
Tool post type | 4 station electric Tool carrier |
Spindle series | Step less |
Spindle speed | 150-2000 r m p |
Main motor power (transduction) | 5.5/7.5kw |
X/Z Axis position accuracy | 0.01/0.015 |
X/Z axis motor torque N.m | 4/6 |
X/Z axis fast moving speed | 8/10 |
Cutter bar size | 20X20 |
Repeat positioning accuracy | ≤0.012 |
Tail seat type | Have one |
Diameter of tailstock sleeve | 60 |
Tail sleeve stroke | 100 |
Tailstock taper hole | 4MT |
Net weight of machine tool | 1600 KG |
Machine tool size (L *w*h) | 2000mm×1200mm×1620mm |
Power (power / current) | 10kW/20A |
Standard Accessories | Optional Accessories |
GSK980TDC or Siemens 808D NC system inverter motor 5.5kw 4 station electric turret 200 mm manual chuck manual tailstock integrated automatic lubrication system coolant system lighten system
| Fanuc 0I mate TD or KND1000Ti servo motor5.5 /7.5 kw inverter motor 7.5 kw 6 station electric turret 8″Non-through hole hydraulic chuck 8″through hole hydraulic chuck 8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) steady rest automatic feeding device spring collet |
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machineand other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
Lathe Machine Tool
Q: How do we confirm the accuracy and performance of machines?
A:(1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A:Sure,We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q:How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
