Aluminium Composite Panel for Exterior Wall

Aluminium Composite Panel for Exterior Wall thumbnail-1
Aluminium Composite Panel for Exterior Wall photo-1
US$ 8 - 10 MOQ: 500 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HAIDA
Usage:
Outdoor
Contact Supplier Request Quote Chat Now
Jiangsu Haida Technology Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhangjiaggn/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HAIDA
Usage Outdoor
Function Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated

Specifications

1.Amazing rigidity at an incredubly light weight
2.Incredibly flat smooth surface
3.5 years quality warranty

ACP/PVDF/PET coat aluminum compasite panels  Packaging & Delivery

Packaging Detail:



 wooden/iron pallet with corrugated board and protection film. pallet size according to commodity specification
Delivery Detail:

20-25 days after deposite

Loading Qty :

Approximately 5300 sqm(1780 pcs) by size 1220*2440*3mm in 20ft.
Approximately 3980 sqm(1340 pcs) by size 1220*2440*4mm in 20ft.

Specifications

Standard Size : 1220*2440mm(4*8ft),1500*3050mm(5*10ft).

Thickness :1.5-6.0mm

Width Range : 80-1570mm,usually by 1220mm, 1250mm, 1500mm, 1550mm, 1570mm.

Length Range : 2000-6000mm

Aluminum Skin : 0.10mm-0.60mm

Color

Factory standard colors.

RAL standard colors.

wooden color / stone color

avaiable in customized



Specifications: Aluminium Plastic Composite Panel
Certification: SGS,CE, ISO9001 approved1) Aluminum sheet thickness:

Panel Dimensions 2mm 3mm 4mm
Panel Thickness(mm) 2 3 4
Aluminium Thickness(mm) 0.3 0.21
Standard Size

1220 x 2440

1500 x 3050

1220 x 2440

1500 x 3050

1500 x 3050

1250 x 2500





Dimensional Tolerances

Thickness(mm) -0+0.1
Width(mm) +/-1
Length(mm) +/-1
Diagonal(mm) +/-3
Thermal Expansion 2.4mm/m@100°c temp Difference
Aluminium Thickness(mm) +/-0.02



Surface Properties

Paint Thickness(micron) 20
Pencil Hardness >HB
Toughness of coating 3T
TemperatureResistance -50 °c to+90°c
Impact Strength(kg cm²) 50
Boiling Water Resistance boiling for 2hrs without change
Acid Resistance immerse Surface in 2% HC1 for 24hr without change
Alkali Resistance Immerse Surface in 2%NaOH for 24hrs without change
Oil Resistance Immerse Surfacein 20≠ engine oil for 24 hrs without change
Solvent Resistance Cleaned 100 tims with Dimenthylbenzene without change
Cleaning Resistance >1000 times without change
Peel Strength 180° >5 Newton/mm



Product Properties



Weight(kg m²)               2.9                3.8            4.75
Sound Absorbtion NRC                                                                                   0.05
Sound Attenuation Rω db                                                                                                                                                               23                                                                                                            24                                                                       25



Water Absorbtion % by Volume                                                                  0.01
Thermal Performance R                                                                             Values                                                                       0.0047                                                                                                                                                  0.005 7                                                           0.0012
Core Composition LDPE Polyethylene
Fire performance Class 1 BS476    PT7
  Class O BS476    PT6
  Class A ASTM E-84
Colour Differnce Δ E *ab=1.6 ASTM G1550-05A,4000H TEST
Gloss Tetention

85.7% ASTMG155-05A 4000H TEST






Characteristics:
1) Excellent fireproof property
2) Super peeling strength
3) Perfect cold resistance performance
4) Excellent surface flatness and smoothness
5) Superior weather, corrosion, pollutant resistance
6) Even coating, various colors
7) Superior impact resistance
8) Lightweight and easy to process
9) Easy to maintain

Application scope:
1) Sign Makingand PhotoMounting
2) Shop Design

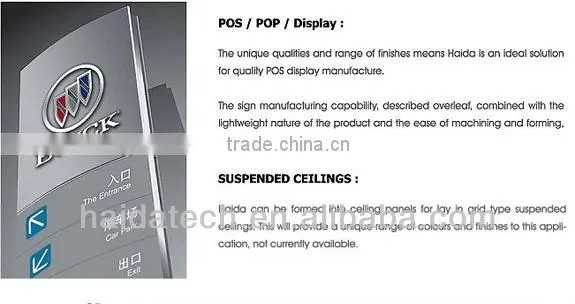

3) POS/POP/Display

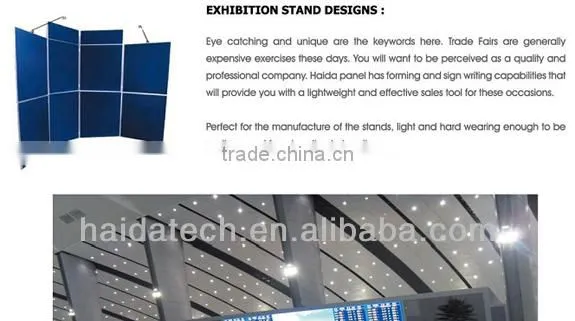

4) Exhibition Stand Designs
5) Transportubg

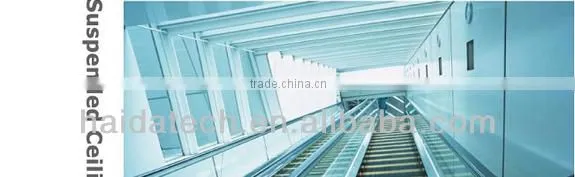

6)Hoarding,Wall Linings and Suspended Ceilings

7) Industrial Applications


aluminium composite panel for exterior wallaluminium composite panel for exterior wallaluminium composite panel for exterior wall


aluminium composite panel for exterior wallaluminium composite panel for exterior wallaluminium composite panel for exterior wall

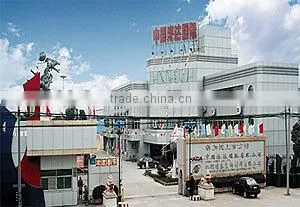

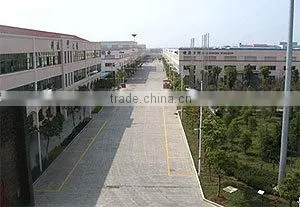

About Factory

We are founded in March of 1997,is the listed company in Singapore,was certified with ISO9001:2000 in Quality management Systems,IS014001:2004 environment Managenment systems.The products aslo passed CTC(China Building Materials Certification) and CE Attestation of European Union.After tested and certified by SGS,the quality has conformed to the standard of ASTM-E84 ,EN13501-1 and BS-476.



We have been exporting our products for about 15 years.

Our factory is near Shanghai Port,CN,the driving time is just 2 hours.

aluminium composite panel for exterior wall



HAIDA / PVDF

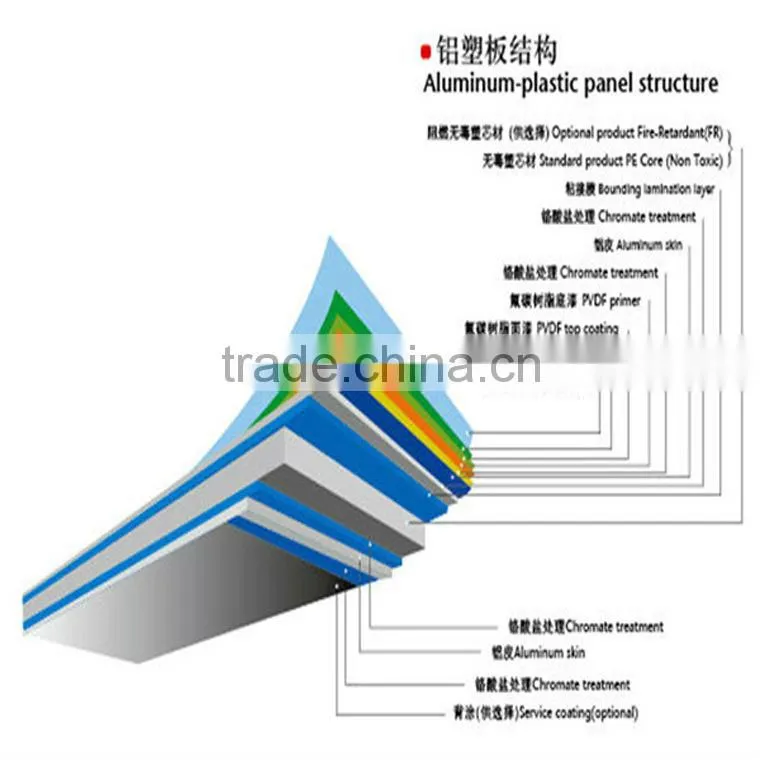

Aluminum Composite Material (ACM) composed of two skins of aluminum and a plastic core ,suitable for exterior.

HAIDA / Fr
The interior ACM with fire-safe performance, featuring a wide variety of product finishes from metallic to timber.

HAIDA / SIGN
Light and inexpensive ACM composed of extremely thin aluminum skins and the foamed core, suitable for signboard,shop design and light box.

HAIDA / SPECIAL
The ACM featuring with various anodized electroplating layer on aluminum, suitable for shop interior and display
