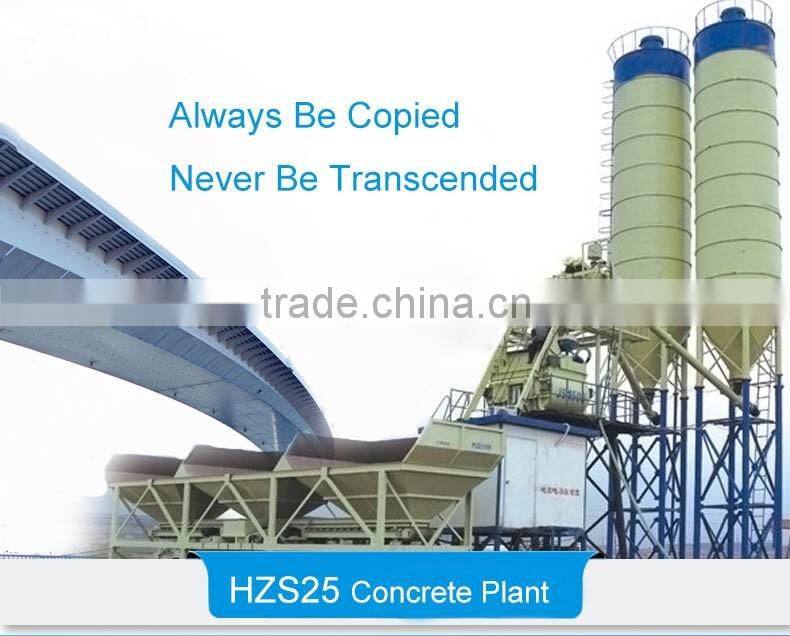

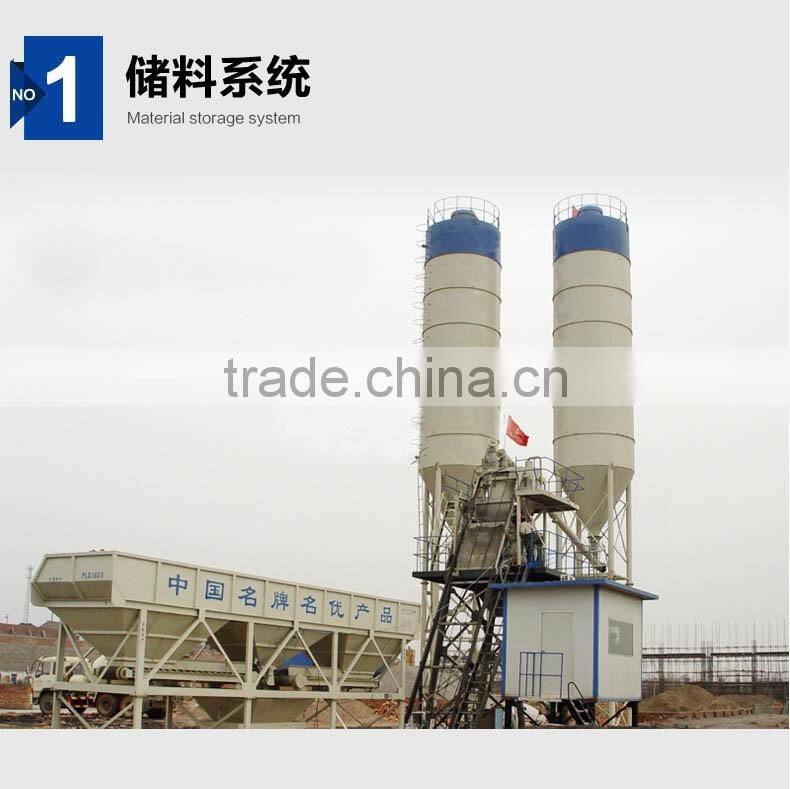

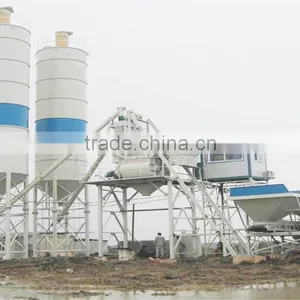

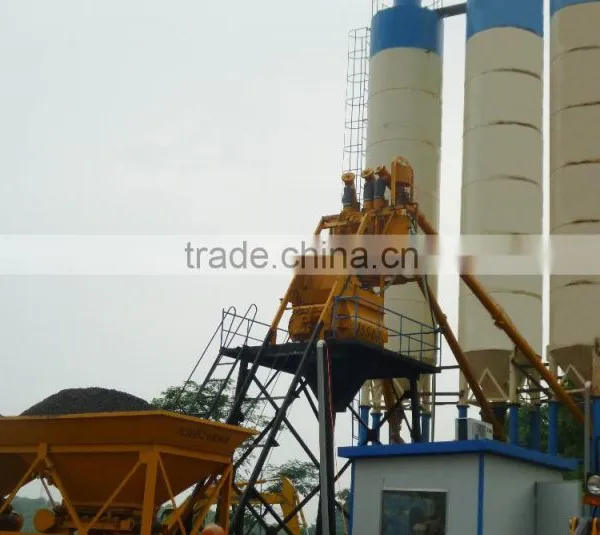

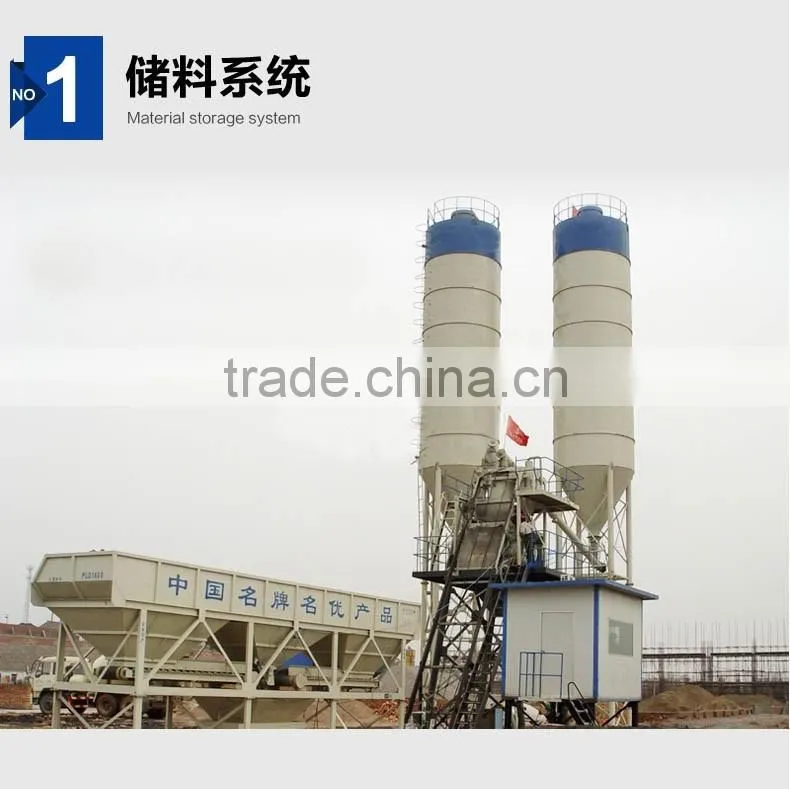

25m3 concrete batching plant mobile concrete batch plant
25m3 concrete batching plant calibration with CE ISO SGS
Main parts of HZS25 concrete plant:

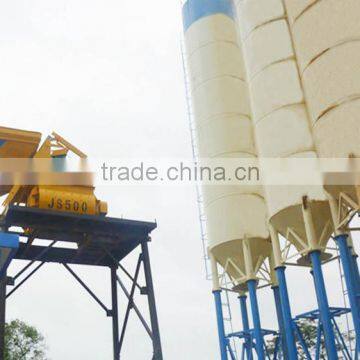

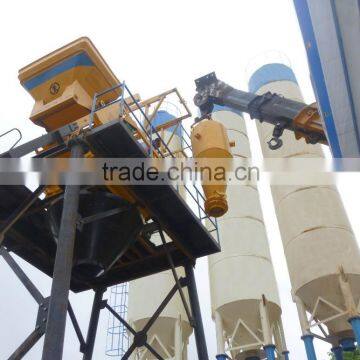

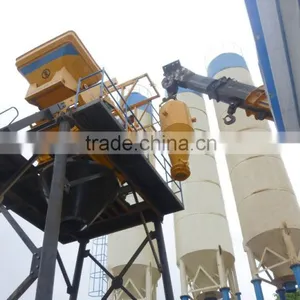

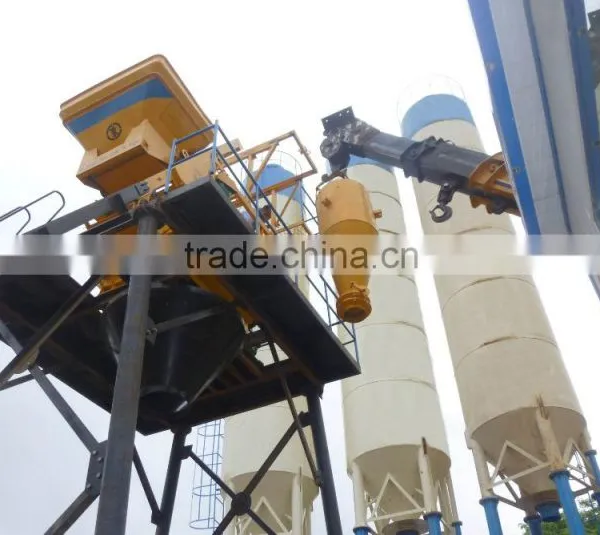

1. JS500 twin-shaft concrete mixer;
2. PLD800 aggregate batcher;
3. welding type 50T or bolted type 100T cement silo;
4. Screw conveyor 219mm*8m;
5. water, cement and additive scales;
6. Air compressor;
7. Fully automatic computer control system with Omron PLC.
Specification of HZS25 concrete plant:
Item |
Parameter |
Max. Productivity |
25 m3/h |
Nominal capacity of mixer |
0.5 m3 |
Max Weighing Value of aggregate |
1500kg |
Max Weighing Value of cement |
300kg |
Max Weighing Value of water |
150kg |
Max Weighing Value of additive |
40kg |
Rating transport capacity of screw conveyor |
35 |
Capacity of Cement Cabin |
50t |
Mixing Power |
18.5kw |
Hoist Power |
5.5kw |
Power of Machine |
60kw |
Weight of Machine |
25t |
Outline Dimension(LxWxH) |
15x8x14(m) |
Discharge Height |
3.8m |
Aggregate measuring accuracy |
≤2 % |
Water measuring accuracy |
≤1 % |
Cement measuring accuracy |
≤1 % |
Additive measuring accuracy |
≤1 % |
Q1. How long do you think your concrete mixer can stand up?
A1. The mixing blades can mix 30000 sessions and the lining board can stand up for 50000 sessions.
Q2. How many motors for PLD800 Batching Machine? How much power for each?
A2. For PLD800-III, there are four motors in total at 4KW each.
Q3. Do you manufacture detachable / bolted type 50 ton cement silos? How much grade/tensile for the bolts?
A3. Yes we do. The bolts grade/tensile is 8.8.
Q4. Can we put our logo on the machine?
A4. Yes, it is available. LOGO and color are usually as per customer's requirement.
1. our engineers will guide installation, debugging, and trainning your operators.
2. maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
2. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. spare parts supply;
Products Certificates:
ISO9001:2000
SGS
Warranty Terms: More than 12 months
Delivery Time: 15 days after receiving advanced payment
1.Set up: in 1982 year
2.Covering space:more than 90,000m², floor area around 50,000 m²
3.Capital Assets:36 Million
4.Personnel:almost 2,300 person;including engineers (56), professional technicians skill (190), administrators (120), skill workers (900), sales, and service personnels.
5.Ever exported to which countries:Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Malaysia,
Philippine, Indonesia, Japan, India, Iran, Saudi Arabia, Ukraine, Australia, America, Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia,
Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries and areas.
More information about Mixer/Batching Machine/Silo please contact us.
Our factory (real manufacturer, receive special request, your best choice)
Detail information please visit our website, We are always at your service.
