Water Mist Fire Extinguishing System

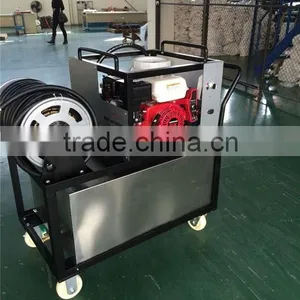

Water Mist Fire Extinguishing System photo-1
Water Mist Fire Extinguishing System photo-2
Water Mist Fire Extinguishing System photo-3
Water Mist Fire Extinguishing System photo-4
Water Mist Fire Extinguishing System photo-5
Water Mist Fire Extinguishing System photo-6
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WOQ/HUAQIU
Model Number:
XFY18/4
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name WOQ/HUAQIU
Model Number XFY18/4

1.Product Name: water mist fire extinguishing system is powered by HONDA engine and BROOWE pumps. It has feature of compact structure,start convenient,fast water,low weight and reliable,so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade,forest fire brigade,towns,rural areas, the mining industry and obligation fire brigade, also is good for agricultural irrigation

2. water mist fire extinguishing system description

Model

XFY18/4-A

Size

670*640*480mm

Engine Model

GX160

Power

5.5HP/3600rpm/Min

Starting way

Recoil/Electric start

Pump set

BROOWE

Pump set model

FM430

Max flow

40L/Min

Rated pressure

40Bar

Speed

650 rpm

Transmission way

Gear box

Transmission ratio

6:1

Straight flow state range

15-20m

Water mist state range

12m

Hose length

25m

Inside dia of the hose

Φ13

Outside dia of the hose

Φ20.5

Length of nozzle

350mm

Liquid

water/foam

Foam tank

15L

Net weight

88kgs (include the steel coil)

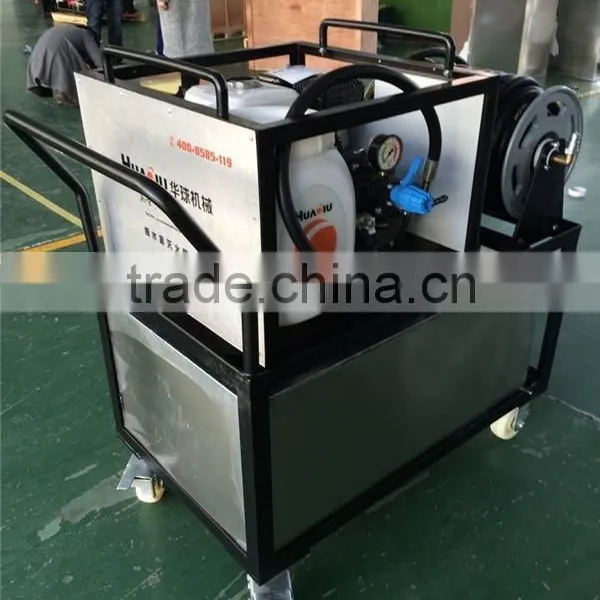

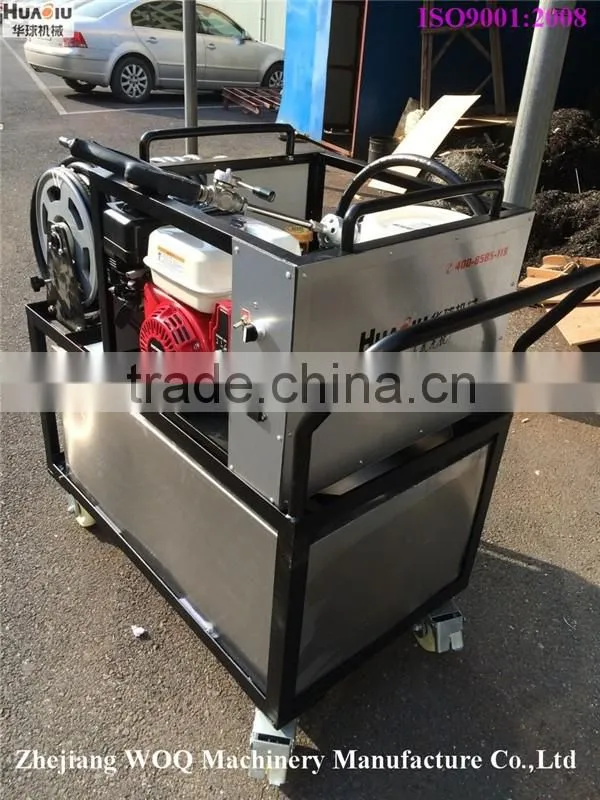

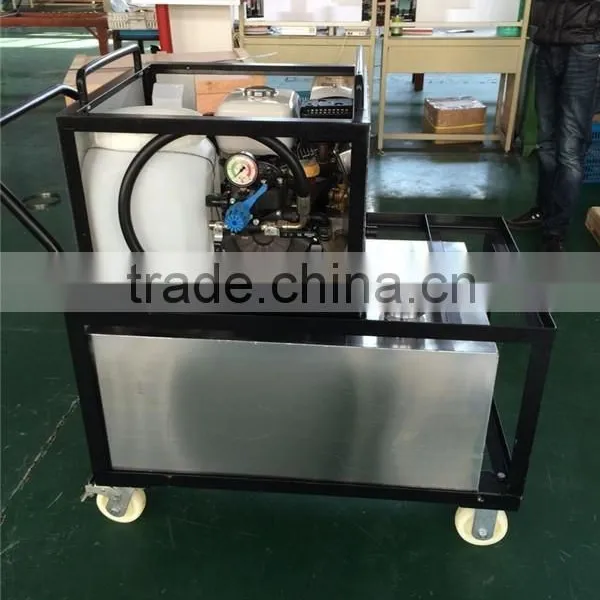

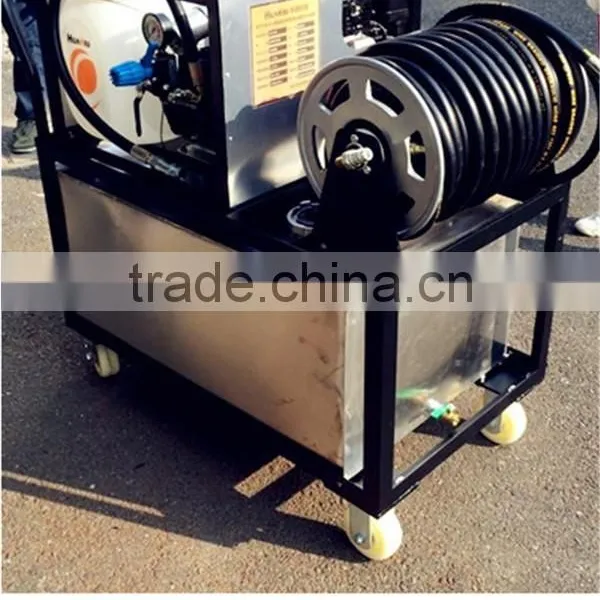

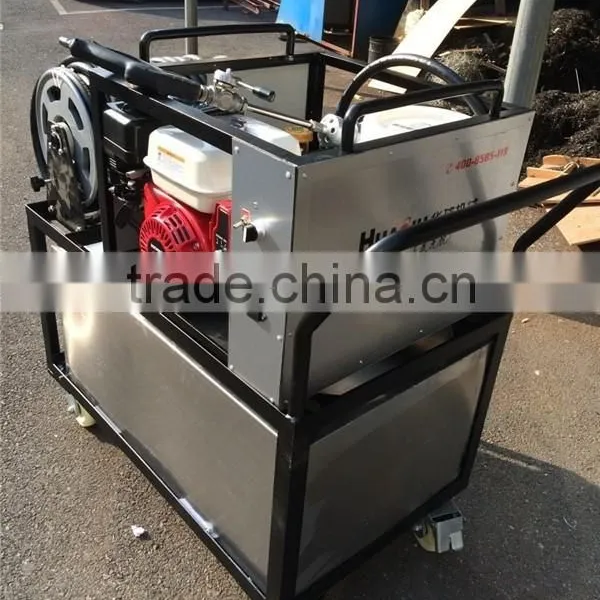

3. water mist fire extinguishing system picture

water mist fire extinguishing systemwater mist fire extinguishing systemwater mist fire extinguishing system

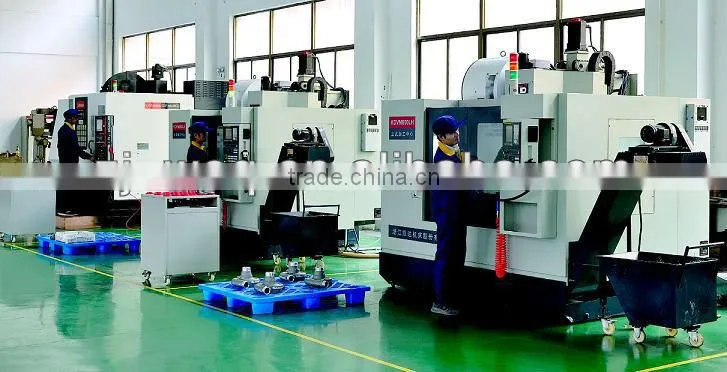

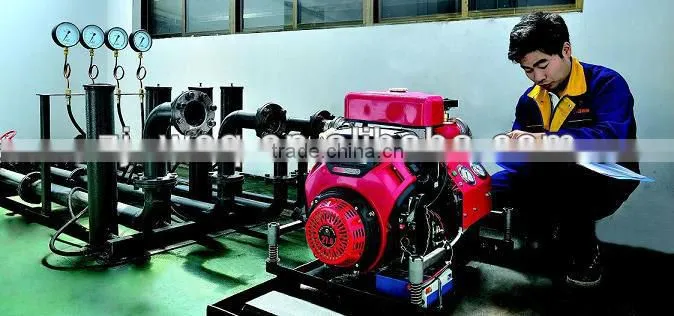

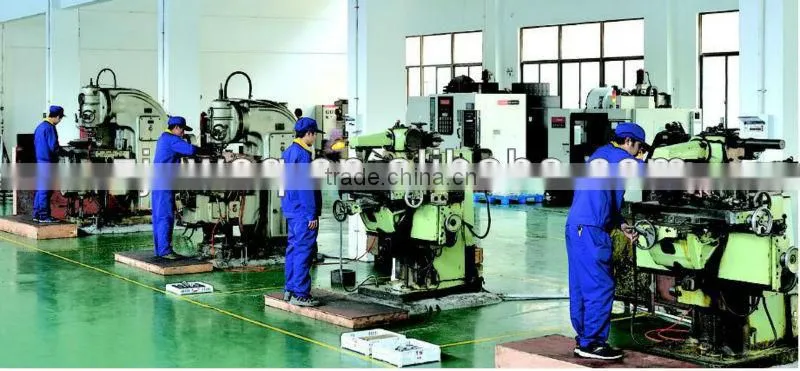

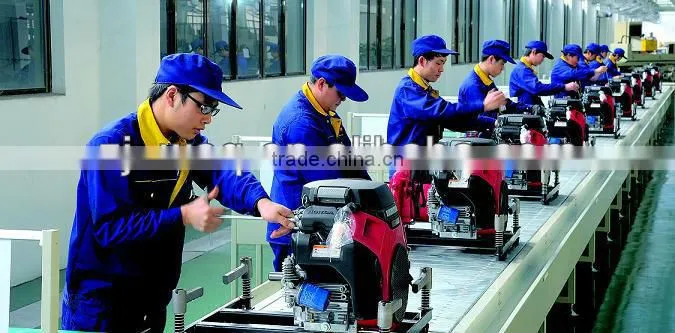

 4. water mist fire extinguishing system workshop Pictures

water mist fire extinguishing systemwater mist fire extinguishing systemwater mist fire extinguishing systemwater mist fire extinguishing system

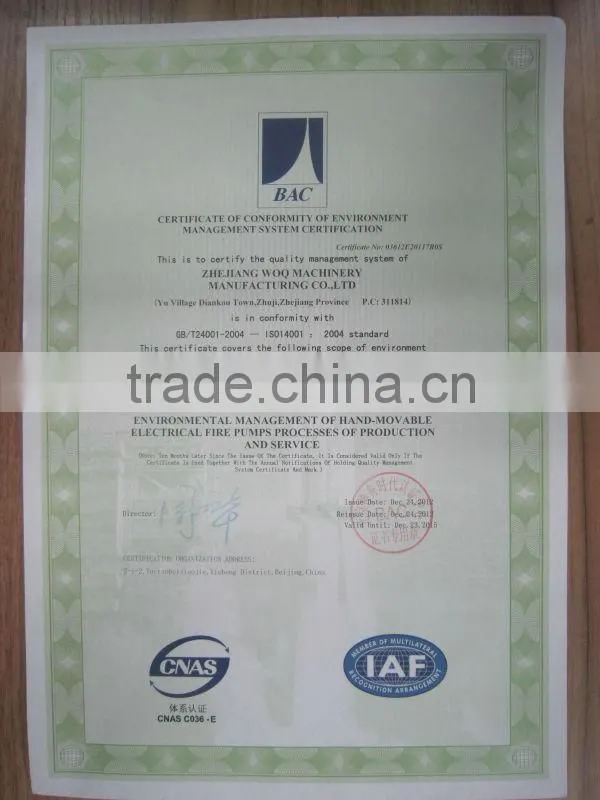

5.Certificates

water mist fire extinguishing systemwater mist fire extinguishing system
