2015 Hydraulic Baler for Used Clothing,vertical Hydraulic Balers for Sale

FOB Price

US$ 500 - 700 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Wire Baler	Operating Speed	High
Condition	New	Place of Origin	Shandong, China
Brand Name	HW	Application	chothes, waste paper, PET bottle
Dimension(LWH)	11808503050mm	Weight	1200 kg
Certification	CE, CE,ISO,TUV,SGS	Warranty	2years
After-sales Service Provided	No overseas service provided

Product Description

Baler machine

(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.

(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6

pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.

(3)Also, we can produce the machine according to the requirement from customer.

a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy

b.Electric button control, it can reaches manual adjusting and semi automatic control

c. Independent feeding opening with automatic pulling out installation, to reduce labor force.

d.It can be made according to the demands of customers, and the bale can be binded into “---” and

“#” shape.

Technical support

Model	Force	Bale size	Bale weight	Efficiency	Power (KW)	Machine weight	Size (mm)
LH10-6040	10 Ton	600*400 mm	30-50 KG	4-6 bale/hour	2.2	1000 KG	9006502100
LH20-8060	20 Ton	800*600 mm	80-100 KG	4-6 bale/hour	4	1100 KG	10007502750
LH30-8060	30 Ton	800*600 mm	100-130 KG	4-6 bale/hour	5.5	1300 KG	10007502750
LH30-11070	30 Ton	1100*700 mm	130-150KG	4-6 bale/hour	5.5	1700 KG	13508503200
LH40-11070	40 Ton	1100*700 mm	180-200KG	4-6 bale/hour	7.5	1800 KG	13508503200
LH40-12080	40 Ton	1200*780 mm	200-240KG	4-6 bale/hour	7.5	2050 KG	160010503300
LH50-12080	50 Ton	1200*800 mm	320-350KG	4-6 bale/hour	7.5 or 11	2600 KG	160010503300
LH60-12080	60 Ton	1200*800 mm	380-420KG	4-6 bale/hour	11 or 15	2900 KG	160010503300
LH80-12080	80TON	1200*800 mm	450-480KG	4-6 bale/hour	15	3300 KG	160010503300
LH100-12080	100TON	1200*800 mm	500-550KG	4-6 bale/hour	15	3700KG	160010503300
LH120-150100	120TON	1500*1000 mm	650-700KG	4-6 bale/hour	15 or 18.5	4300KG	210015503300
LH150-150100	150TON	1500*1000 mm	850-900KG	4-6 bale/hour	18.5	5100KG	210015503300

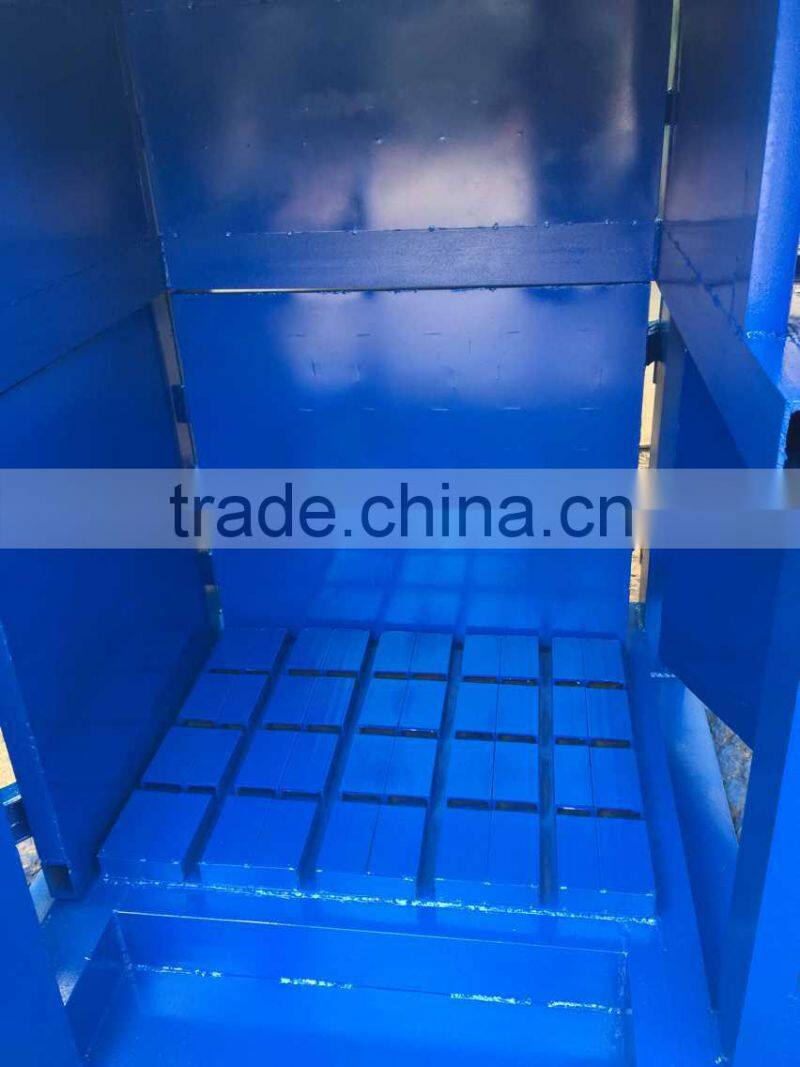

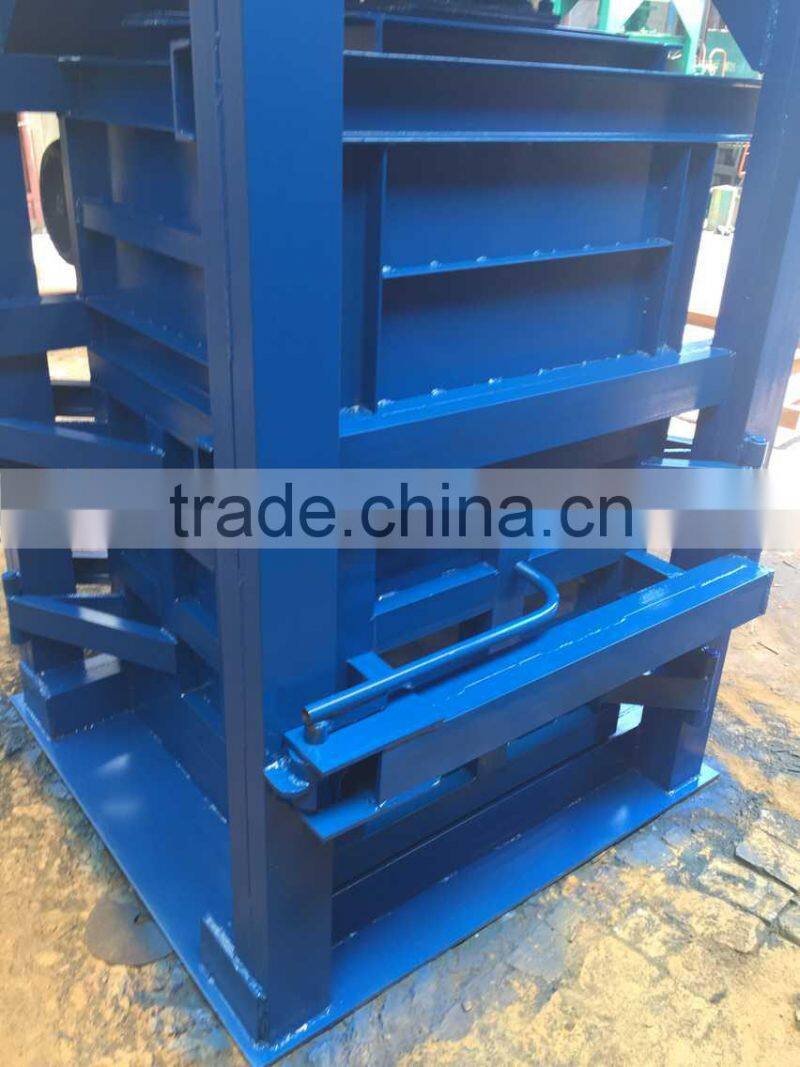

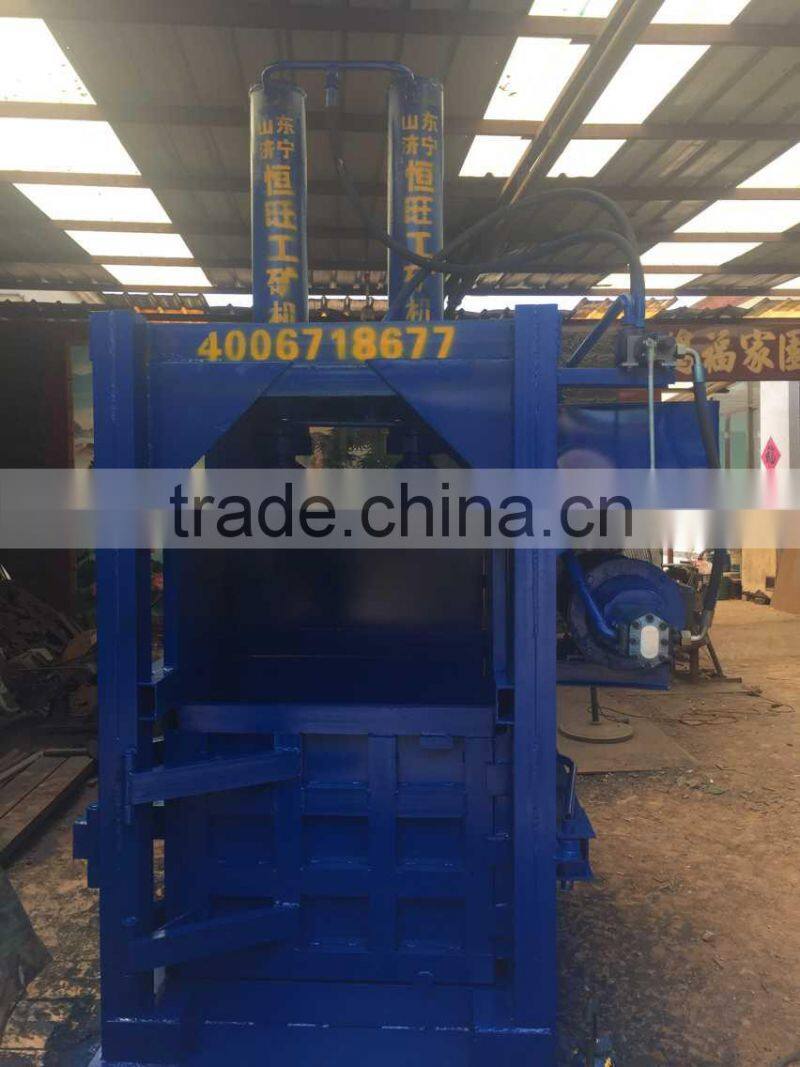

Figure photos

Qualification & certification

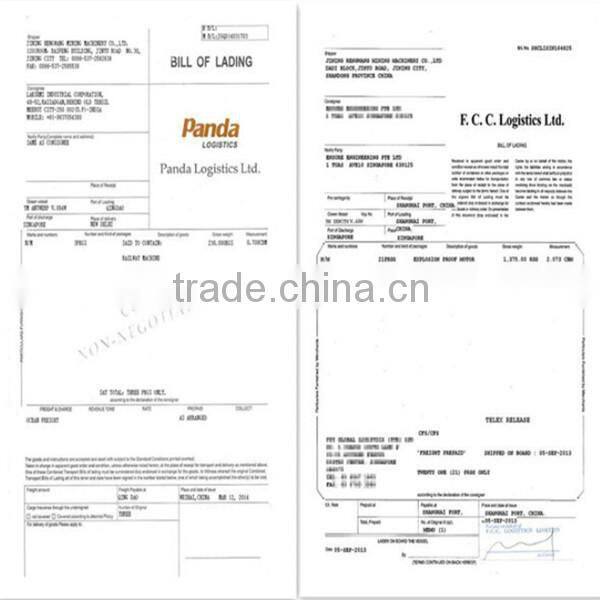

History order
