China Supplier Construction Machinery Concrete Scabbler for Sale
- qingdao tianjin shanghai
- D/P D/A Credit Card
You May Like
-
Handheld 32 Steel Head Concrete Floor Scabbler
-
Professional Construction Tool Bush Hammer, Concrete Floor Scabbler
-
HW-BC100 Handheld Powerful Concrete Floor Scabbler
-
Hot Sale Hand-push Concrete Chipping Hammer Hand-push Concrete Scabbler
-
China Supplier Multi Headed Concrete Floor Scabbler
-
HW-160 Multi Headed Concrete Scabbler for Non Slip Surface
Product Details
| Place of Origin | Shandong, China | Brand Name | HW | |
| Model Number | HW-BC | Type | Abrasive Block | |
| Size | 540*630*620mm |
Product Description
construction machinery concrete scabbler concrete scabbler
Features:
1. The piston sleeve, shaft, chisel feather have increased body weight, and enhance combat power
2. High sealing silicone seal gas installations, gas consumption fully
3 .Rectangular type alloy feather chisel, gouge deep, and can use multiple grinding;
4. Self-locking alloy chisel feather, working only two minutes to complete.
Concrete scabblerdescription
HW-BC hand-push concrete chipping hammer is mainly used for chipping and scraping the concrete surface layer off the constructions such as power plant highway,highspeed railway bridge deck and box grider.It is also widely used in many other fields including scraping off, repair renovation and reinforcement and so on of concrete surface layers of building walls,grounds and civil engineering .The bit has a 80mm diameter with 10 alloy-strengthen points .The greatest feature of this machine is a suspended roughening operation in multi-angles .It works on horizontal surface,vertical surface and curved surface
Concrete scabbler parameter
Items | HW-BC100 | HW-BC160 |
Working width | 283mm | 566mm |
The piston length | 155mm | 155mm |
Piston stroke | 35mm | 35mm |
Every blow count | 11*2220 | 23*2220 |
Air consumption | 1.8m³/min | 4.0m³/min |
Body length | 1260mm | 1280mm |
Body width | 283mm | 566mm |
Body height | 320mm | 320mm |
Air consumption | 3mm 30-40 sq.m./h | 3mm 60-80 sq.m./h |
5mm 17-20 sq.m./h | 5mm 30-40 sq.m./h | |
10mm 10-12 sq.m./h | 10mm 20-25 sq.m./h | |
Weight | 80kg | 160kg |

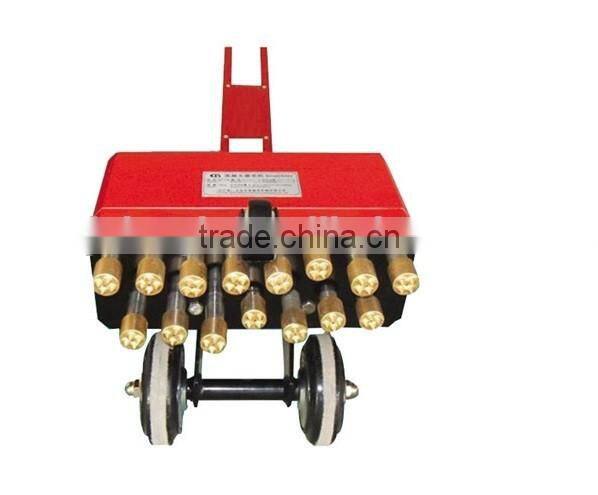

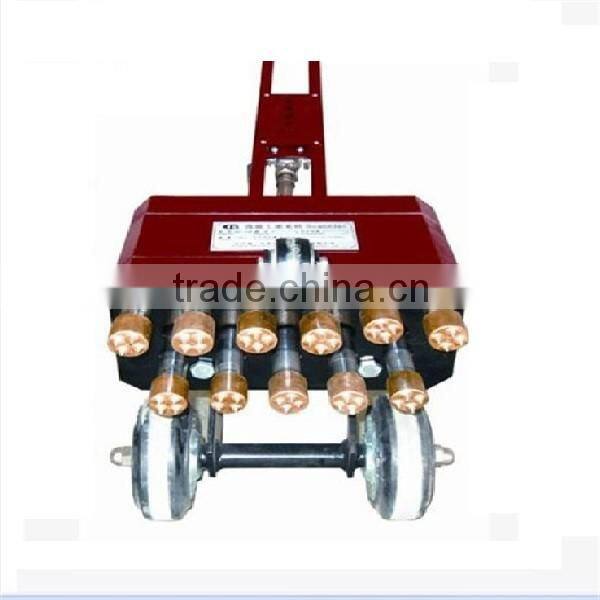

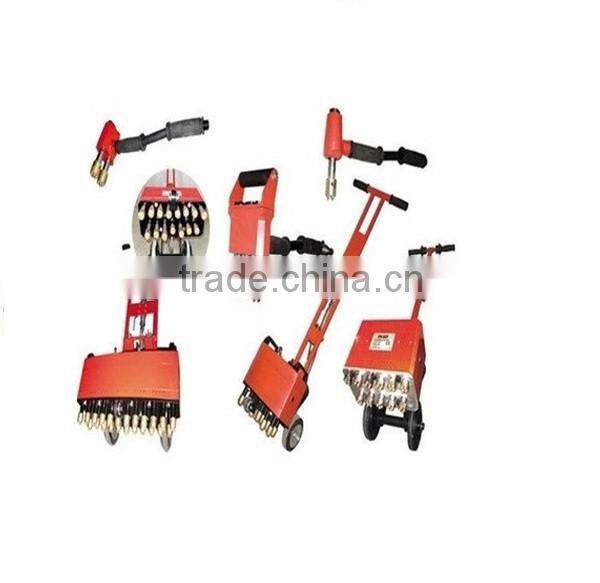

Concrete scabbler pictures

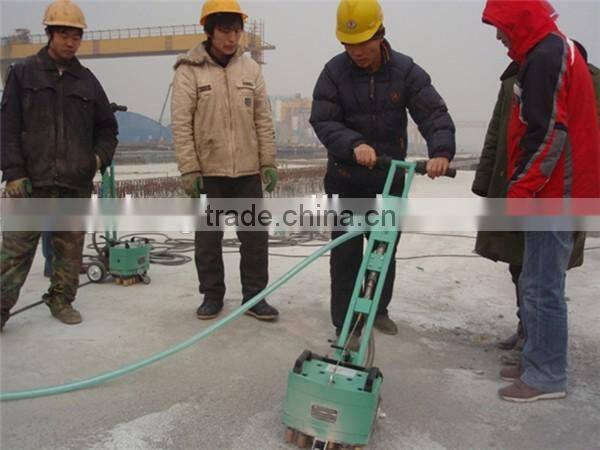

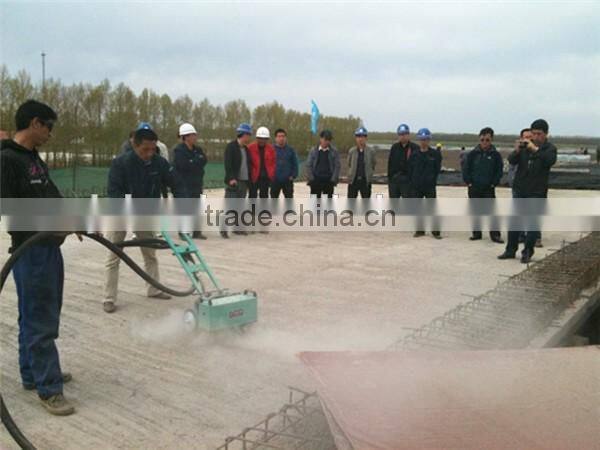

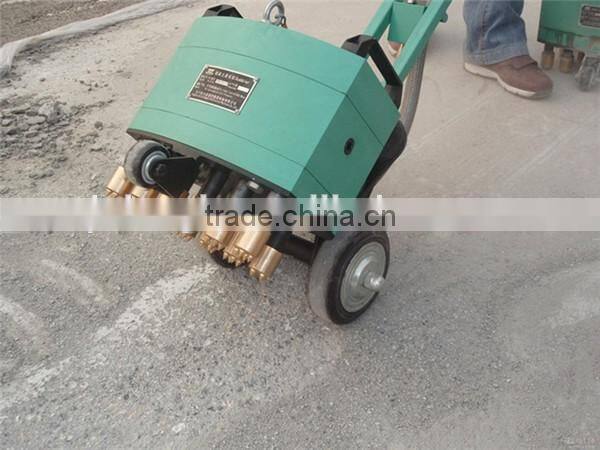

Working spots
