Double Action Hydraulic Press/hydraulic Press/hydraulic Press Machine/power Press/single Press/eccentric Press/four Column Press

US$ 2,000 - 90,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

NFL

Model Number:

Y41

Maanshan New Fuli Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name NFL

Model Number Y41

Specifications

1.High precision,Wide application

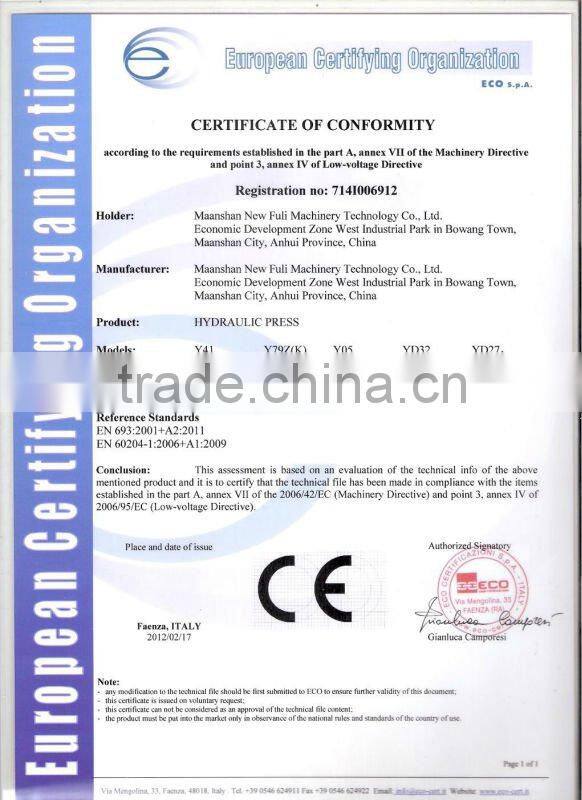

2.EU CE Certification
3.CQC,ISO9001:2008
4.High performance,
5.Easy to operation.

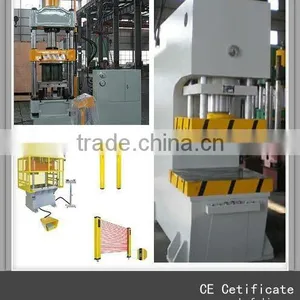

Y41 Series C Frame Hydraulic press is main use to make the shape or the other usages.

The main technical parameters of Y41 hydraulic press as belows:

the capacity is from 1T to 315T

type		Unit	1T	2.5T	6.3T	10T	16T	25T	40T	63T
Nominal force		KN	10	25	63	100	160	250	400	630
The maximun working pressure of the fluid		MPa	4.5	4.5	5.1	5.8	13	20.5	23	18.5
The maximum open height		mm	300	300	450	500	550	600	700	800
The maximum stroke of the slipper		mm	120	160	250	300	350	350	400	500
Slippe speed	Down velocity of the slipper	mm/s	60	60	85	85	110	110	85	85
	The working velocity of the slipper	mm/s	7-15adjustable
	Return velocity of the slipper	mm/s	120	120	120	120	120	120	120	120
Throat depth		mm	100	160	250	250	280	280	300	300
The size of the working platform	Front,Rear	mm	300	300	420	420	500	500	550	580
The size of the working platform	Left,Right	mm	400	400	450	450	550	600	600	600
The height of the working platform to the surface of the floor		mm	730	730	730	730	730	730	730	730
The size for the cutting hole		mm	70	70	80	80	100	100	100	100
The power for motors		kw	1.1	2.2	2.2	3	5.5	5.5	5.5	7.5
The configuration size of the machine tool	Front,Rear	mm	530	730	1000	1100	1150	1200	1200	1550
	Left,Right	mm	500	550	730	800	800	830	900	1050
	The height above the floor	mm	1455	1600	1800	1900	2100	2300	2400	2680
Total weight
