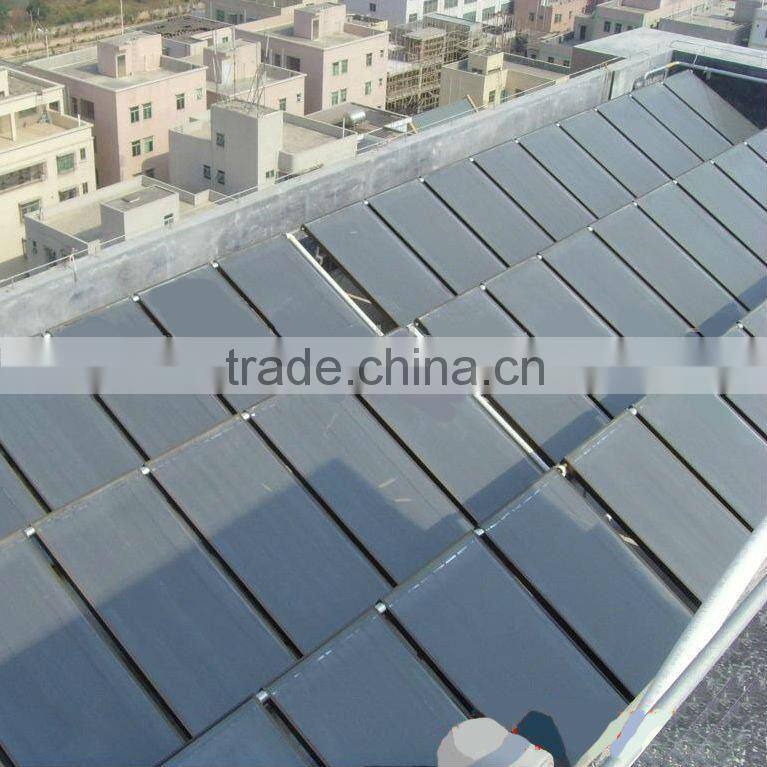

High quality Solar Flat Panel for water heater
adopts full-copper core board. It has performance of high pressure resistance, and testing pressure is at 0.9Mpa. Using ultrasonic welding, it could reduce thermal resistance at the most and keep absorption efficieny. Heat absorber adopts high performance heat-absorb coating, and its efficiency could reach as high as 95%. Tempered glass is used as cover, with high heat preservation effect and transparency.
Technical parameters of our flat panel solar collector are as following:
| 1).Area of the solar flat panel | 2m2 |
| 2).Size | 2000×1000×75mm |
| 3).Material of Frame | colored Aluminum alloy profile with thickness of 1.5mm |
| 4).Core of the broad |
original full purple copper tube Φ25×0.6mm, secondary tube Φ12×0.45mm,aluminum fin 140×0.15mm |
| 5).Coating | 93%-95% absorption rate ,emission rate of 10% |
| 6).Cover |
4mm tempered glass (intensity, shock resistance: 1kg steel ball falls at height of 1 meter, there is no broken with glass). |
| 7).Insulation | 30mm glass cotton(back),25mm polyethylene (side). |
| 8).Back | Cover seal: PVC rubber |
| 9).Strip welding | ultrasonic. |
| 10).Cover seal | PVC rubber |
| 11). Self-tapping crews | stainless steel |
