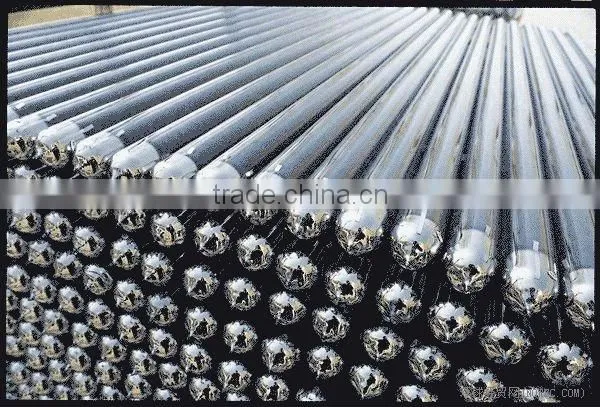

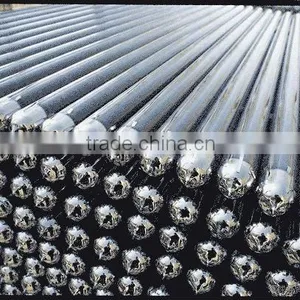

single target solar vacuum tube

FOB Price

USD $1.4 - $2.5 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Type	Vacuum Solar Collector
Application	Solar Thermal		Pipe Material	Other

Basic Specifications of single target solar vacuum tube:

Coating: Al-N-Al

Type	Length=1200	Length=1500	Length=1500	Length=1800
Glass Thermal Energy Parameter	3.3*10^-6/	3.3*10^-6/	3.3*10^-6/	3.3*10^-6/
Outer Glass Tube Diameter	47MM	47MM	58MM	58MM
Inner Glass Tube Diameter	37MM	37MM	47MM	47MM
Thickness of the Glass Tube	1.6MM	1.6MM	1.8MM	1.8MM
Transmission Ratio of the Outer Glass Tube	>0.80	>0.80	>0.80	>0.80
Length of the Vacuum Tube	1200MM	1500MM	1500MM	1800MM
Solar Selective Absorber Coating	AL-N/AL	AL-N/AL	AL-N/AL	AL-N/AL
Absorptance (AM1.5)	>0.93	>0.93	>0.93	>0.93
Emission Ration (80)	<0.07	<0.07	<0.07	<0.07
Atmospheric Pressure Intensity in Vacuum Jacket	P<5*10^-3	P<5*10^-3	P<5*10^-3	P<5*10^-3
Stagation Temperature	>230 Deg. C	>230 Deg. C	>230 Deg. C	>230 Deg.C
Heat Loss Coefficient	<0.75W/M²	<0.75W/M²	<0.75W/M²	<0.75W/M²
Hail Resistant Ability	<25MM	<25MM	<25MM	<25MM
Max. Pressure Resistant Ability	0.8MPa	0.8MPa	0.8MPa	0.8 MPa

Model no.:

Dia. 47 with length of 1500mm.

Dia. 58 with length of 1500mm

Dia. 58 with length of 1600mm

Dia. 58 with length of 2000mm..
