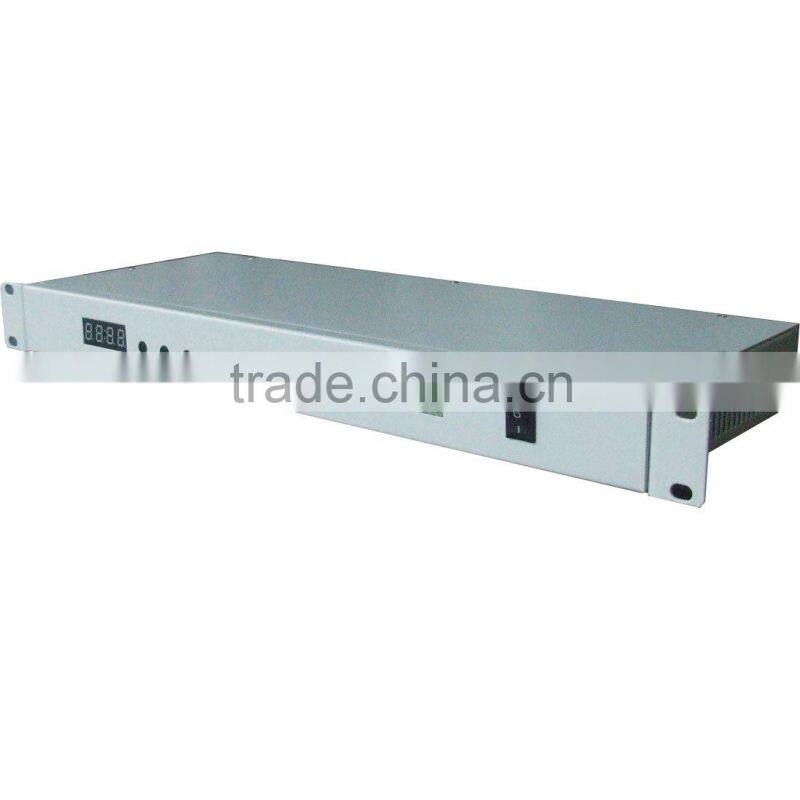

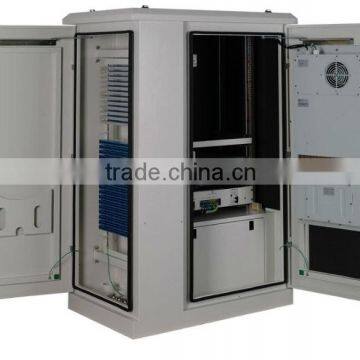

XJK-DS04 Telecom Outdoor Cabinet Environmental Control System

Function:

Set

Supply 3 buttons to set

Display

4 bits of LED to display

Monitor

Monitor 2 channels of temperature, 1 channel of humidity, 2 channels of intrusion, 1 channel of immersion, 1 channel of smog fire

Alarm signal input

Output 6 alarm signal, includes high temperature, intrusion 1, intrusion 2, smog fire, immersion, other alarm

Alarm output

Use 6 pcs of relay to output alarm signal, it also display alarm code.

Communication

Supply USB communication function, also supply monitor software for free

Record

Can real time record 4000 pcs of recording

Size of box

Standard 1U case, for 19’’ frame

Other

Sample interval can be set

Performance Indices:

Type

XJK-DS04

Rating voltage

AC 220V 50Hz or DC 48V

Connect terminal position

Front

Interval range

0-99min

Temperature precision

±1°C

Humidity precision

±5%

Output

Dry contact  (N.O.)

Communication interface

USB

Record capability

4000 pcs

Clock error

3 seconds per month

Sensor:

Type

Name

Number

Note

WD

Temperature sensor

1

Accessories, fixed outside

WS3

Hygrothermograph sensor

1

Accessories, fixed inside

SS-168P

Smog sensor

1

Accessories, fixed inside

HO-03

Intrusion sensor

2

Accessories, fixed on the door

TT

Immersion sensor probe

1

Accessories, put it on the floor

Alarm code:

Code

Definition

E01

High Temp. alarm

E02

Intrusion 1 (door open) alarm

E03

Intrusion 2 (door open) alarm

E04

Smog fire alarm

E05

Power off

E06

Seeper

E12

Temperature sensor fault

E17

High humidity alarm
