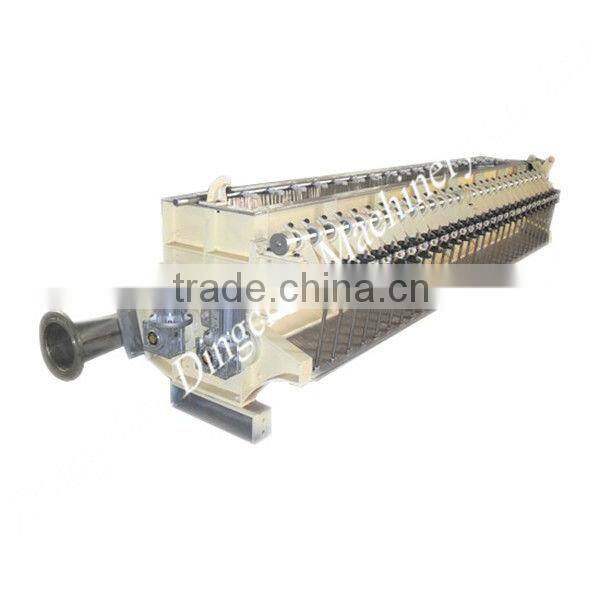

3200,3600,3800 truboflow headbox

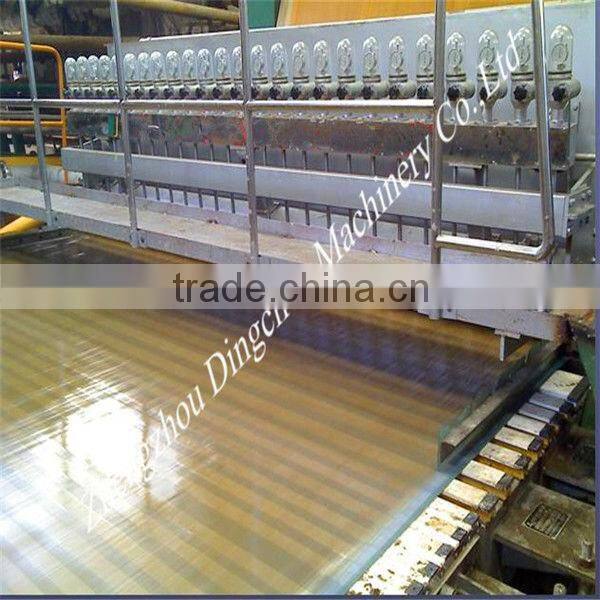

Headbox sent the pulp to the network part evenly and quickly .
The open type headbox is applicated to the production of courrgated paper .
Technical specification
| 1 | Trimmed width (mm) | 3200 | 3600 | 3800 |
| 2 | 3350 | 3800 | 4050 | |
| 3 | Work speed (m/min) | 200-300 | 200-300 | 200-300 |
| 4 | Diameter of holy roll (mm) | Ø220 | Ø220 | Ø220 |
| 5 | Cloth paste way | Square taper pipe into the slurry,cloth pulp by the organic glass holey plate | ||
| 6 | Arrangement | Left or right hand machine | ||
| 8 | Outline size (L*W*H M) | 2.6*4.4*1.6 | 2.6*4.4*1.6 | 2.6*5*1.6 |
The main equipment of the truboflow headbox
1.Holy roll: 2 s
2.
3.
4. The headbox is welded steel, lined with mirror stainless steel plate or can
also be made of full stainless steel.There is a gate in the box.
(the difference between the air-cushioned headbox)
5. Adjusting device : With a total transfer mechanism and the trim mechanism
of upper plate
6.Spray device : The box body is provided with a spray device.
We are the MANUFACTURER of high quality machines with competitive price! Such as toilet/tissue paper machine, cultural paper machine, newspaper machine, craft/kraft paper machine, corrugated paper machine, etc.
Any questions, please do not hesitate to contact me. Thank you!
