REALAND A-F011 Fingerprint Time Attendance Device With Simple Access Control

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Huangpu(Guangzhou) Shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Biometric Time Recording	Biometric Measurement	Fingerprint
Place of Origin	Guangdong, China	Brand Name	Realand
Model Number	A-F011

Product Description

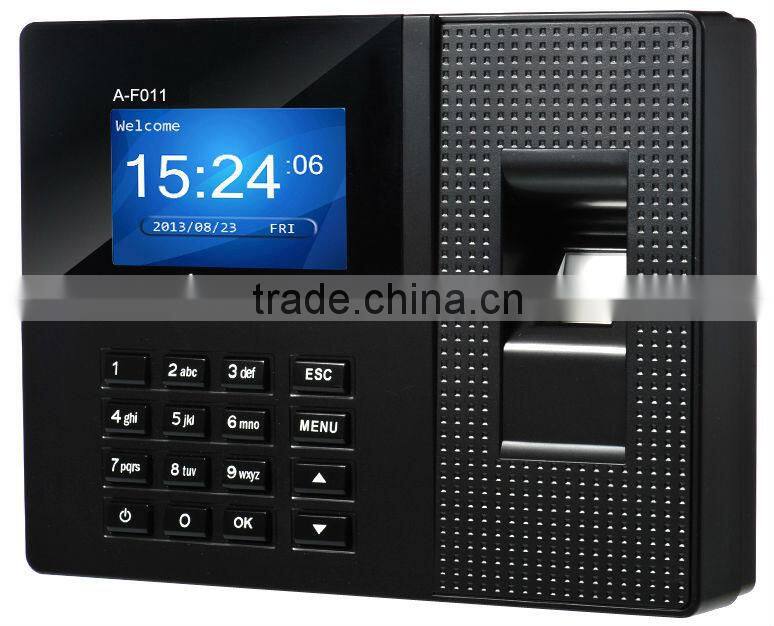

REALAND A-F011 fingerprint time attendance device with simple access control

Product Description

1. Brief Introduction

A-F011 is 2014 new model color screen fingerprint time attendance terminal. Support simple access control and external bell, it’s also optional for battery backup function. Agents/distributors could customize different front case according to yours markets, it also can satisfy diversified products based one mold, so that to differentiate different markets and realize the maximum market share.

Features:

Support simple access control and external bell
The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
Optional for battery backup function
2.8 inch TFT color screen.
Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 records
Support multi development language(VB, C++, Delphi ect) SDK, and ODM/OEM software development
Support English, Germany, Spanish ect different languages.

Functions:

2. Parameter

Model	A-F011
LCD Screen	2.8 inch TFT (320*240) Color Screen
Fingerprint Sensor Resolution	500DPI (Optical sensor)
Hardware Platform	REALAND^R ZDC2911
Algorithm Version	REALAND^R RSFv5.1
CPU	ARM926EJ CPU, Running Frequency: 200MHZ
Communication	TCP/IP, RS485, USB Memory Disk
User Capacity	1,000
Records Capacity	100,000
Software OS	XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time	< 0.8 S
Authentication Method	Fingerprint/ RFID Card (125Khz, EM4100)
Language	Chinese / English / Spanish/Portuguese/ German (could customize others)
Bell	Built-in timing bell (scheduled-bell)
Power	DC 5V/0.5A
FRR	<1%
FAR	<0.00001%
Support	Simple access control & external bell
Optional	Battery backup(3 hours)
Operating Mode	Off-line/On-line
Authentication Mode	1:1, 1:N
Operating environment	Operating Temp: 0°C-50°C, Humidity:80%
Certificates	CE, Type Inspection Report of Chinese Police Product
Dimension(LWH)mm	Terminal - 18013436mm Package – 325105258 mm
Weight	Terminal – 0.365Kg; Package – 0.866Kg .

3. Application

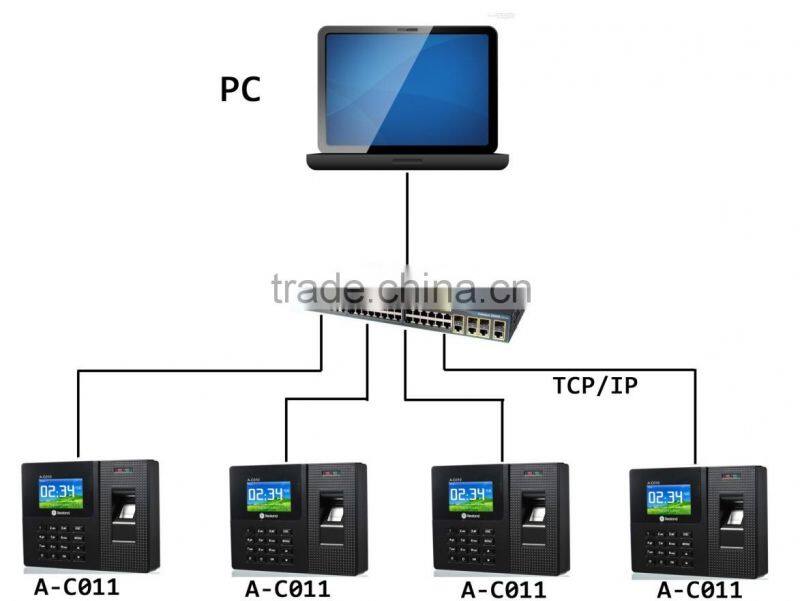

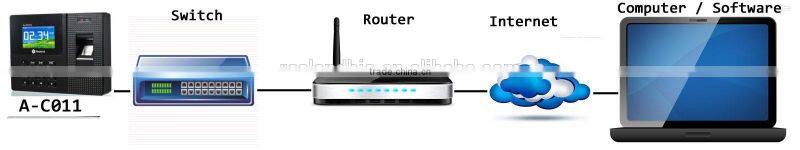

1) Customer can connect the software to the A-F011 device via the WAN network.

2) One software can connect to several A-F011, to share the user info and get the attendance records.

Packaging & Shipping

Color Case, Carton Box.

Dimension(L*W*H)mm: Terminal- 173*132*31mm , package- 246*164*71mm ;

Weight: Terminal – 0.328Kg; Package – 0.850Kg .
