Help CenterMailboard LVDS to VGA / DVI Signal Converter (LDVGA01)
Related Products
-
Six Single Channel LVDS to VGA / DVI Signal Converter (LDVGA01)US$ 1 - 29MOQ: 2 Pieces -
Six Single Channel LVDS to VGA Signal Converter (LDVGA01)US$ 1 - 29MOQ: 2 Pieces
-
the Cheap Lvds to Vga Board (LDVGA01)US$ 1 - 29MOQ: 2 Pieces
-
the Cheap Converser Lvds to Dvi Board (LDVGA01)US$ 1 - 29MOQ: 2 Pieces
-
the Hot Sale Motherboard Lvds to Dvi Board (LDVGA01)US$ 1 - 29MOQ: 2 Pieces
Specifications
1.change the LVDS mode input signal into the VGA/DVI model output signal.2.Fully support LCD panel refresh rate at :50 Hz/60Hz
Product brief introduction
1"LVDS change into VGA/DVI signal converter"used to change the LVDS mode input signal
into the VGA/DVI model output signal
2.It was based on the usual interface design, compatible with the main LCD panel on the market.
3.Fully support LCD panel refresh rate at :50 Hz/60Hz LCD panel
Maximum supported refresh rate: 024*768/ 1366*768 *60Hz
Main parameter:
Size: 59mm×52mm×12mm
Input interface: support single 6/8 LVDS signal, 2*15 pin. 2.0mm spacing

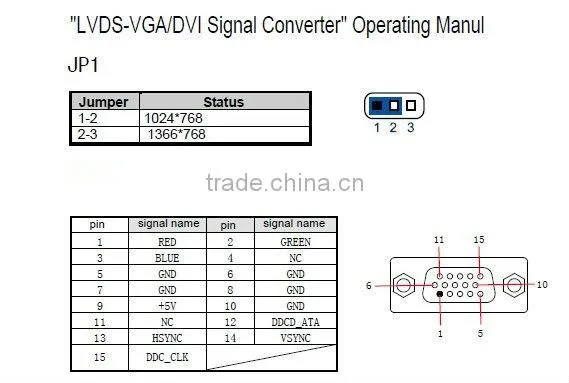

Output interface: standard DB15/10 pin VGA built-in, stand 3*8 pin DVI-I port
Display support:Maximum resolution ratio: 1366*768/1024*768*60Hz
Working environment:Temperature:-50-50 Celsius degree,Humidity:5%-85%

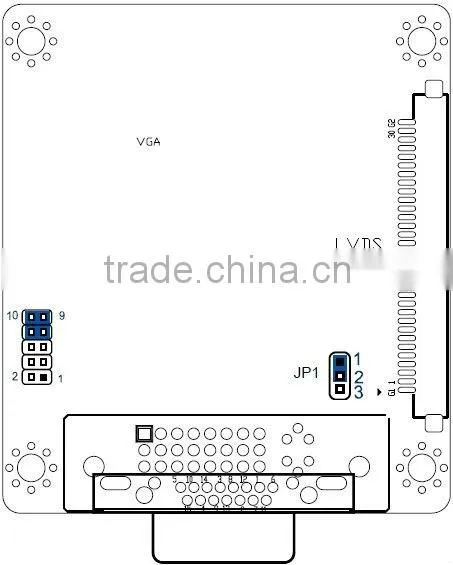

Module specification

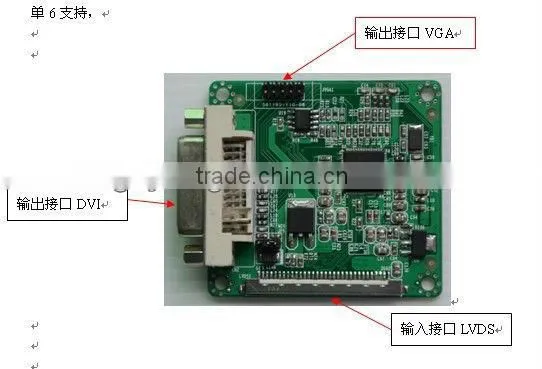

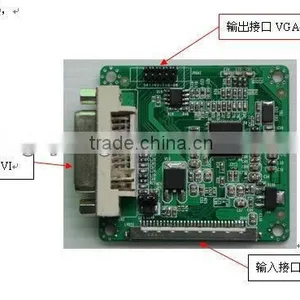

LVDS-VGA/DVI Signal converter installation:
Please install the converter correctly, if not, it will not work, even will caused damage to the other parts.
https://img13.fr-trading.com/
Tel:0086-13714759015 skype:troor003/ lingjiang8818
