2400mm Duplex Board Paper Coating Machine, Coated Paper Machine Manufacturer in China With High Performance

2400mm Duplex Board Paper Coating Machine, Coated Paper Machine Manufacturer in China with High Performance

I Technical Parameters of 2400mm Coated Duplex Board Paper Manufacturing Machinery:

1.Raw material:White shavings and waste paper
2.Output paper:Coated duplex board
3.Net paper width:2400mm
4.Paper grammage:200-450g/m2
5.Capacity:50T/D
6.Working speed:30-70 m/min
7.Design speed:100m/min
8.Wire width:2950mm
9.Rail gauge:3400mm
10.Drive way:AC frequency conversion adjustable speed, sectional drive

II Main Structures of  2400mm Coated Duplex Board Paper Manufacturing Machinery:

1.Cylinder part:
1500mm×2950mm×3400mm stainless plate cylinder mold: 6 sets, 450mm×2950mm×3400mm couch roll: 6 sets, rubber shore hardness 38ºC±2, 500mm×2950mm×3400mm reverse roll: 1 set, rubber shore hardness 86ºC±2. Pneumatic control couch roll.

2.Press part:
Pre-press roll: 1 set , top roll 450mm×2950mm×3400mm natural marble roll.
Bottom roll 400mm×2950mm×3400mm rubber roll, rubber shore hardness96ºC±2.
blind press 850mm×2950mm×3400mm rubber roll: 2 sets,rubber shore hardness 98ºC±2, bottom roll with drive device, pneumatic control

3.Dryer part:
1500mm×2950mm×3400mm alloy dryer: 22 sets, among which there are 2 sets of chromium facing dryer,with cleaning scraper knife 22 sets, arrangement of 14 sets of dryers+sizing machine +8 sets of dryers .

4.Sizing part:
Top roll Φ800mm×2950mm×3400mm imitation stone roll 1pcs,hardness 100ºC±2
Bottom roll Φ805mm×2950mm×3400mm rubber roll 1pcs,hardness 96ºC±2,double drive device,pneumatic control device

5.Coating part:
Coating head: 2sets, 2400mm×4000mm heat air drying box: 6sets,pneumatic lifting

6.Calender part:575mm×2950mm×3400mm chilled roll: 2 sets, pneumatic pressure control

7.Winding part:2400mm horizontal pneumatic winding machine 1 set

8.Rewinding part:2400mm frame upper feed rewinding machine 1 set.

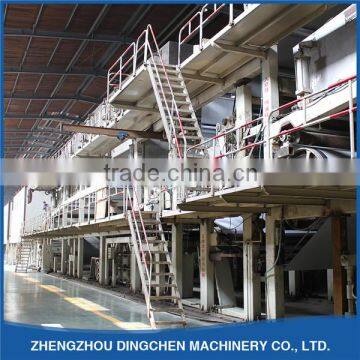

III Pictures of Paper Machine:

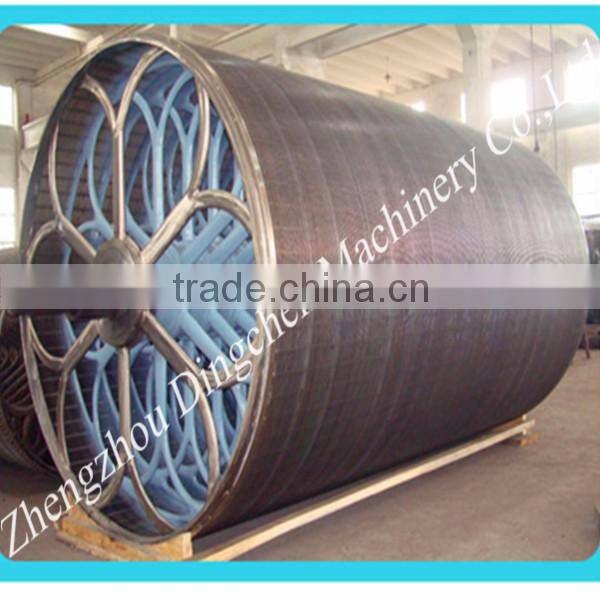

Cylinder Mold:

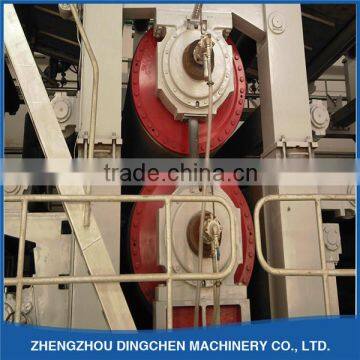

Dryer:

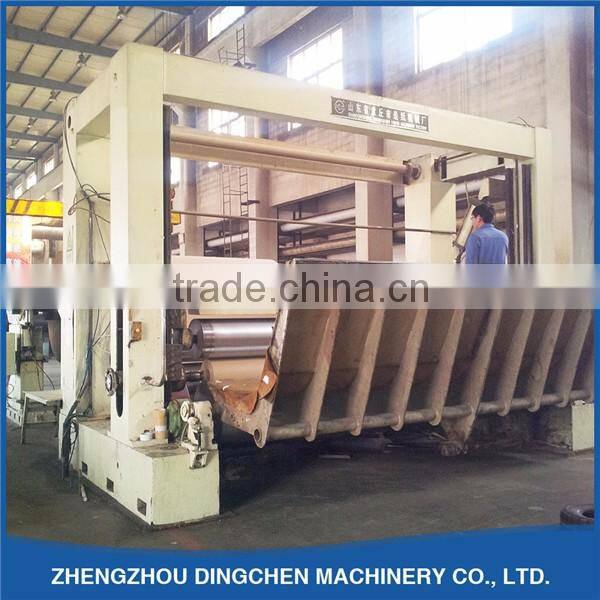

Frame--type Rewinding Machine:

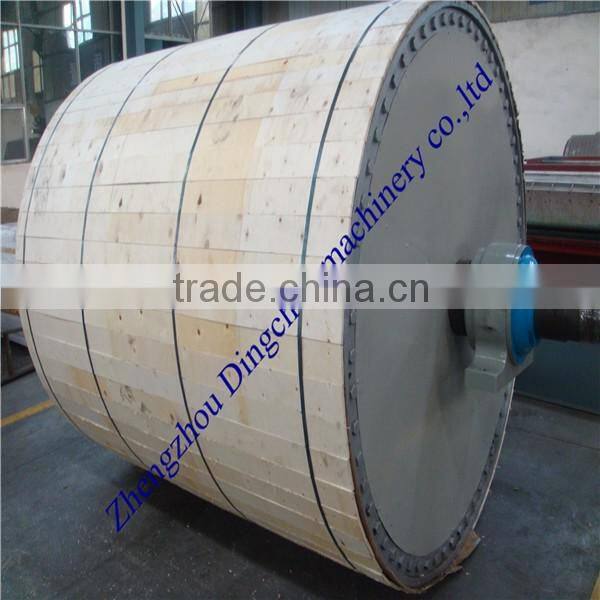

IV Packaging & Shipping:

V Company Information:

Zhengzhou Dingchen Machinery Co.Ltd is a company that specializes in manufacturing paper making machines for over 30 years. Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on.

Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!

Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers’ consistent affirmations.

International Cooperation:

Perfect service:

1)Highly inspecting equipments in every working procedure, quality comes first;

2)Fast & Safe Delivery;

3)Assisting our clients for foundation construction of equipments;

4)Dispatching engineers to install and debug equipments;

5)Training the first-line operators on site;

6)One year guarantee time after the running of the machine;

7)Providing life-long maintenance service;

8)Providing technical exchanging;

9)Good and long-time after-sale services;

10)Providing all-around turn-key projects as follows: production design,equipment manufacture, installation and adjustment, technical service, conforming product.
