US$ 100 - 150
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XF
Type:
Selective Pallet Rack
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
XF
Type
Selective Pallet Rack
Material
Steel
Feature
Corrosion Protection
Use
Warehouse Rack
Certification
Other, ISO9001
Depth
1.8-3.0mm
Weight Capacity
1000kg-4000kg
Width
400-1500mm
Height
2000-10000mm
Specifications
1.All kinds of sizes available2.1-4T/level loading capacities
3.Free design
4.ISO9001:2008

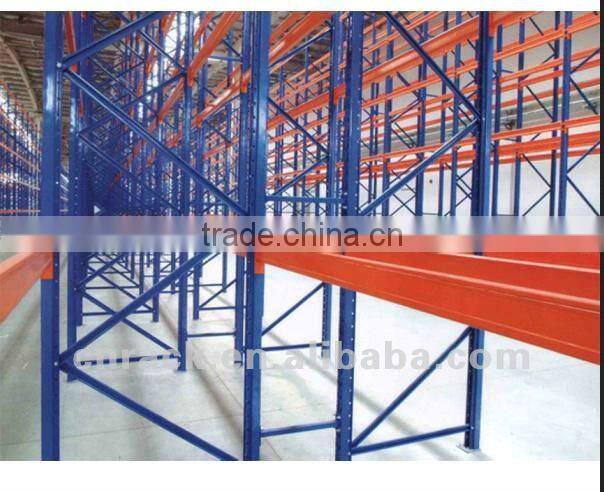

| Features: | Beam levers are adjustable in 75mm pitch interval. Different sizes, various specifications and colors are available according to customers’ different needs. Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension: | Loading capacity: 500-2500 kgs UDL/beam level. Height: 1000-10000mm Depth: 400-1500mm Length: 1500-3600mm Specail sizes also avaiable to specific storage needs. |

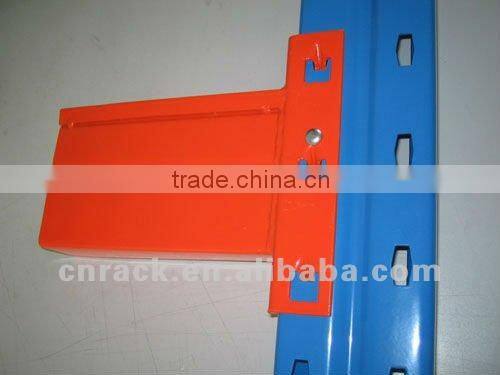

| Main Parts Specs: | Uprights:80x60x2.0, 90x70x2.0, 100x70*2.0, 120x95x2.0, 120x95x2.5 Box beams: 80x50x1.5, 100x50x1.5, 120x50x1.5, 140x50x1.5, 160x50x1.5 Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material: | High grade Q235B Steel |
| Finish: | High quality Powder Coating Finishing. |
Please inform us the listed information in your inquiry for a quick quotation:
1. AUTOCAD drawings(If not available, we can provide). We can design your racking system for free according to your requirements
2. Size of your warehouse
3. Width, depth and height
4. How many layers you want
5. Loading capacity of each layers.
6. Your pallet size and weight
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2000
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
