Home > Products > New Products > H928 2200kg Small Wheel Loader for Sale

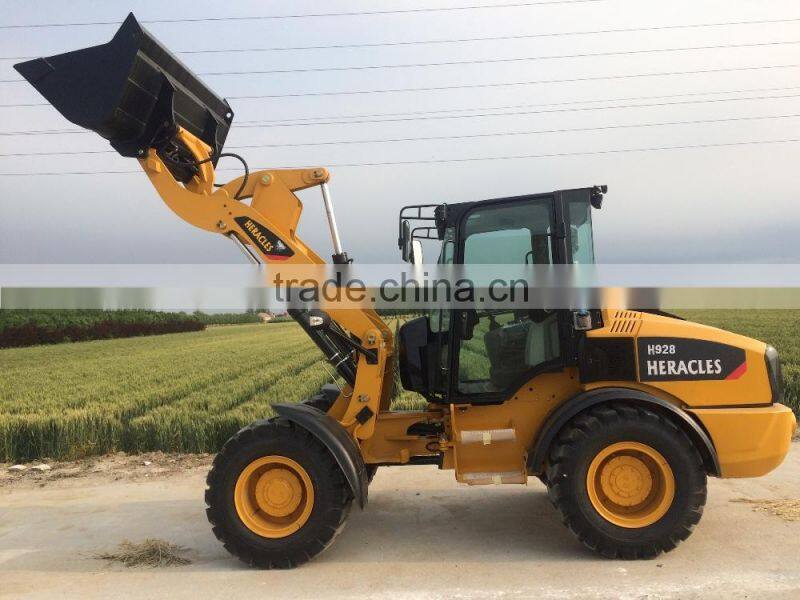

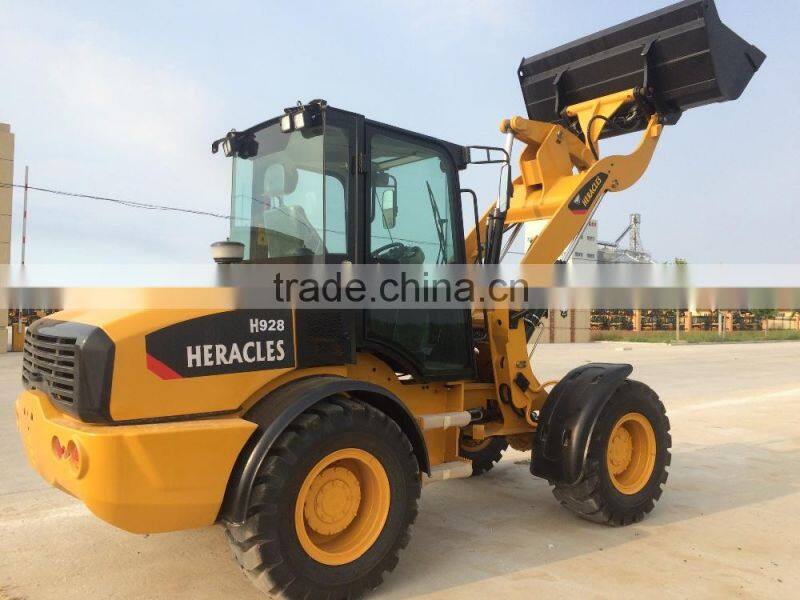

H928 2200kg Small Wheel Loader for Sale
US$ 13,000 - 14,000
/ Piece
1 Piece(Min. Order)
- QINGDAO
- T/T
You May Like
-
2000kgs Mini Wheel Loader for Sale
-
HERACLES Articulated Mini Wheel Loader With ROPS Cabin and CE Certificate for Sale
-
2200kgs Compact Front End Mini Wheel Loader With CE Certificate and With Rops Cabin for Sale
-
HERACLES 1.2CBM Bucket 2tons CE Approved Mini Wheel Loader
-
HERACLES H928 CE Mini Wheel Loader With Rops/Fops Cabin
-
HERACLES H928 Wheel Loader With Rops/Fops Cabin and CE Certificate
Product Details
| Condition | New | Brand Name | HERACLES | |
| Model Number | H928 | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6170x2040x2695mm | Rated Load | 2200kg | |
| Certification | CE ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Performance | Model | H928 |
| Rated loading | 2200kg | |
| Operation weight | 5870kg | |
| rated bucket capacity | 1.2m3 | |
| Max. tractive force | ≥54KN | |
| Max. breakout force | ≥45.4KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3300mm | |
| Dump distance | 930mm | |
| Overall dimension (LxWxH) | 6170x2040x2695mm | |
| Min. turning radius | 4510mm | |
| Engine | Model | YN38GBZ (YUNEI brand), Euro2 |
| Type | Vertical, in-line, water cooled, 4-cylinder, turbo type | |
| Rated power | 76KW / 2400rpm | |
| Max. torque | 285N.m | |
| Displacment | 3.76L | |
| Transmission system | Torque converter | ZL280 |
| Gearbox mode | Contershaft, power-shift | |
| Gear shift | 2 forward (1 high speed, 1 low speed), 1 reverse | |
| Max. speed | 35km/h | |
| Drive axle | Main reducing spiral | Circular Arc Bevel gear, single stage |
| Decelerating mode | Single stage planetary type | |
| Wheelbase | 2470mm | |
| Track base | 1570mm | |
| Min. ground clearance | 390mm | |
| Hydraulic system | System working pressure | 16Mpa |
| Boom lifting time | 4.8s±0.2s | |
| Total time | 9.2s±0.5s | |
| Fuel tank capacity | 80L | |
| Function of leveling automatically | Yes | |
| Brake system | Service brake | hydraulic disc brake on 4 wheels |
| Parking brake | flexible shaft operated external drum | |
| Tyre | Tyre size | 16/70-20 |
| Front tyre pressure | 0.22Mpa | |
| Rear tyre pressure | 0.18Mpa |
