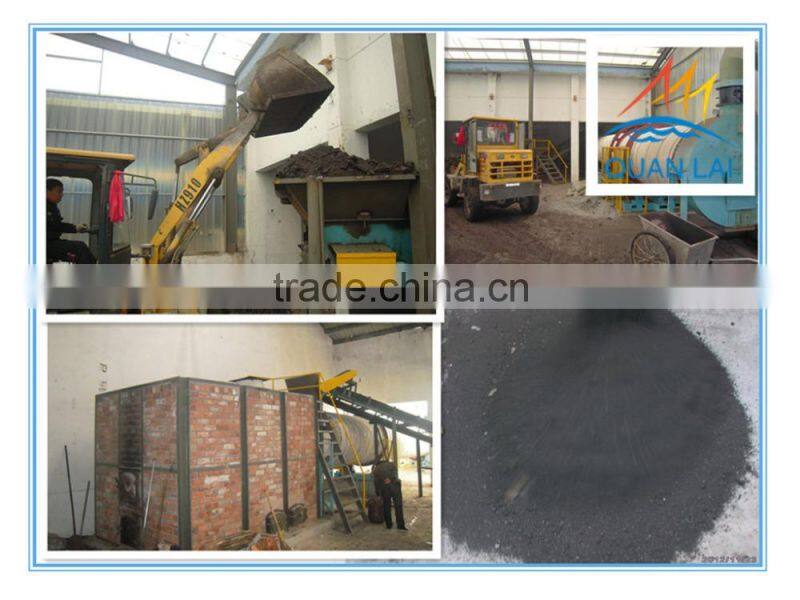

Shanghai Famous Rotary Drying Machine

Name: Shanghai Famous Rotary Drying Machine
Brand: Quanlai
Availability: InStock

FOB Price

US$ 45,000 - 72,000 / Set

1 Set(Min. Order)

Port Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Drum Drying Equipment
Place of Origin	Shanghai, China	Brand Name	Quanlai
Model Number	QLD-1616	Voltage	220-440V
Power(W)	18.5kw	Dimension(LWH)	16m1.6m1.6m
Weight	4T-110T	Certification	CE Certificate
Warranty	One Year Guarantee	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Shanghai Quanlai Bentonite/Diatomite rotary dryer

1. Bentonite/Diatomite rotary dryer Components:

Rotary drier is mainly composed of cylinder, under frame, feeding and discharging devices, transmission device, gear cover, etc. (Optional auxiliary equipment includes combustion chamber, feeder and discharging device, and dust collection equipment). Rotary drier manufactured by us adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising. The materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency. Our rotary drier is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common dryers.

2. Bentonite /Diatomite rotary dryer Working Principle:
The auto-combustion device provides heat resource for our rotary drier, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.

3. Shanghai Quanlai rotary dryer Technical Parameters

(just for you reference, more details please contact with me)

Model (mm)	Inclination (%)	Rotate speed (r/min)	Air inlet temperature (°C)	Power (kw)	Production capacity(t/h)	Weight (t)
600x6000	3-5	3-8	≤700	3	0.5-1.5	2.9
800x8000	3-5	3-8	≤700	4	0.8-2.0	3.5
800x10000	3-5	3-8	≤700	4	0.8-2.5	4.5
1000x10000	3-5	3-8	≤700	5.5	1.0-3.5	5.6
1200x10000	3-5	3-8	≤700	7.5	1.8-5	14.5
1200x12000	3-5	3-8	≤700	11	2-6	14.8
1500x12000	3-5	2-6	≤800	15	3.5-9	17.8
1800x12000	3-5	2-6	≤800	18	5-12	25
2200x12000	3-5	1.5-6	≤800	18.5	6-15	33
2200x18000	3-5	1.5-6	≤800	22	10-18	53.8
2200x20000	3-5	1.5-6	≤800	30	12-20	56
2400x20000	3-5	1.5-5	≤800	37	18-30	60
3000x20000	3-5	1.5-5	≤800	55	25-35	78
3000x25000	3-5	1.5-5	≤800	75	32-40	104.9
