30kw electric generating windmills for factory use
Top part parameters:
Type of generator | permanent magnet 3-phase |
Stator | silicon settle sheet |
Magnet steel | NdFeB |
Magnet material | 38SH |
Wire package | copper wire |
Rotation speed | 100r/min |
Rated power | 30000W |
Protection level | IP54 |
Service life | More than 16 years |
Blades length | 6.0m |
Blades weight | 120kg/pc |
Start up wind speed | 3m/s |
Rated wind speed | 12m/s |
Operating wind speed | 3-25m/s |
weight of top section | 1130kg |
Generator | Type of generator: permanent magnet 3-phase |
Stator: silicon settle sheet | |
Magnet steel: NdFeB | |
Magnet material: 38SH | |
Rated rotated speed: 100r/min | |
Rated power: 30000W | |
Max power: 35000W | |
Output voltage: DC360V/AC220V | |

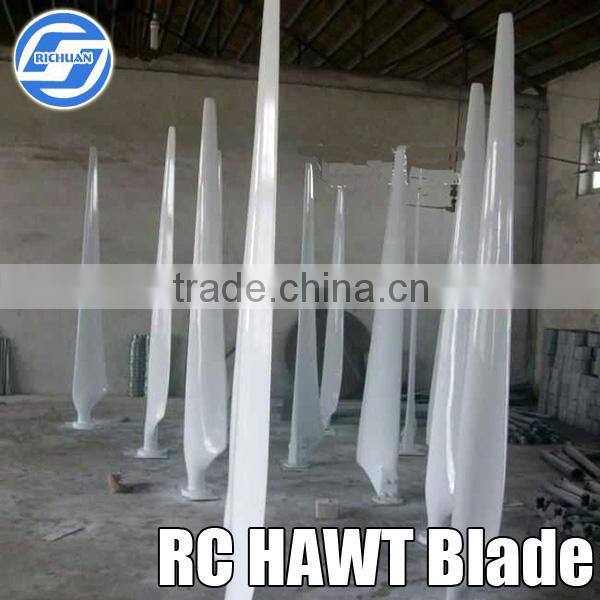

BLADES | Material of blades: high efficiency FRP material, ultraviolet prevention rosin, plus unidirectional high strength glass fiber, modernization craft vacuum cast technique synthesis. |
number of blade: 3pcs | |
Rotor diameter: 12.5m | |
Start-up wind speed: 3m/s | |
Rated wind speed: 12m/s | |
Work wind speed: 3-25m/s | |
Tower | Tower type: free stand tower |
Height of pole: 15m | |
Material: Q235 steel | |
Surface treatment: painting against decaying | |
Other parameters | Certificate: CE |
Suggested battery type : 12V150AH 60pcs | |
Speed regulation: pitch control + electric brake | |
Service life: 18-20years |
Products advantages:
1.Low starting torque, low start wind speed.
2.Low speed permanent magnet generator.
3.No vibration & low noise.
4.All of our products confirm to CE .
5.Reliable wind power system by multifunction controller.
6.PWM constant voltage recharge function provides stable output.
7.Variable pitch system, power optimization, higher efficient transformation from wind power into electricity.

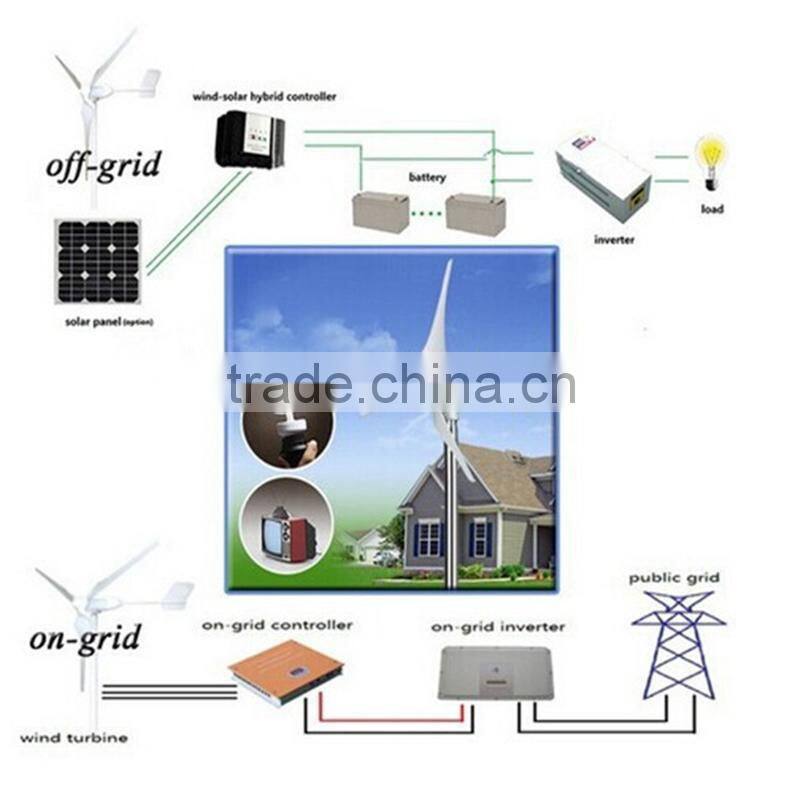

8.On-grid or Off-grid wind power system optional.
9.2-year warranty for generator and 18-20 years service life.
10.Electronic brake and manual brake, optional.
11.High efficiency and Low mechanical resistance energy loss.
12.Special sealed wind turbines, moisture, sand and water proof.
Connection line:
