Help CenterCE Approved for Home and Office Use Vertical Wind Solar Power 10kw Qingdao Richuan Wind Solar Hybrid System
Related Products
-
1kw 2kw 3kw 5kw Wind Solar Power Hydrid System for Home On-grid Off-gridUS$ 1,500 - 10,000MOQ: 1 Set -
China Manufacture 2600w Wind Solar Hybrid Power SystemUS$ 2,900 - 5,000MOQ: 1 Set
-
1kw Wind Solar Hybrid Power System High Output PV Quality ChoiceUS$ 1,300 - 3,000MOQ: 1 Set
-
Wind Solar Hydrid 1kw 2kw 3kw 5kw Wind Solar Power SystemUS$ 1,500 - 10,000MOQ: 1 Set
-
1kw 2kw 3kw 5kw Vertical Axis Wind Solar Hydrid SystemUS$ 3,500 - 24,100MOQ: 1 Set
Specifications
Magnetic wind power generatorCertification by CE
Factory direct sales
Suitable mountain,desert,etc
Best quality
· Household,Garden,farm eolic vertical or horizontal wind turbine generator,Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Make wind -solar hybrid power system

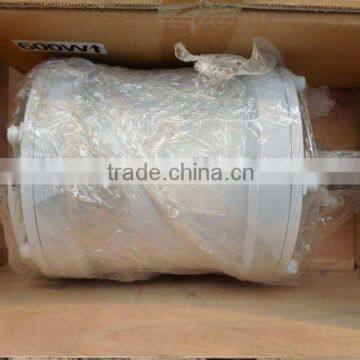

1,Low speed permanent magnet generator
2,Low starting torque ,high generating efficiency
3,CE approved
4,Power range : 300w-50kw
5,Minimal maintenance and easy install
6,Without pollution
7,Without fuel
8,No noise
9,Security high efficiency stablity
10,Aerodynamic brake & manul brake
11,Strong wind resistance
12,Yaw motor system
13,The span life of our product is 20~25 years
14,Generator small size, light weight, high system efficiency;
15, leaves low wind speed start, also has high wind energy utilization efficiency
16,Equipped with a closed transmission slip ring, cable is not wrapped, good electrical conductivity.
17,easy to install and operate
Richuan Prouducts Guarantee:
Anti-corrosion
Anti-thunder and lightning: Tower is on grounding, will not subject to the impact of lightning
Anti-strike
Generator has good heat dissipation performance
High-performance blades
16-25 years lifespan
Lower noise level
Cut-in wind speed: 3m/s
Number of blades: 3
Certificates requested: CE
VERTICAL AXIS WIND TURBINE PARAMETER
| Wind turbine type | PMG (on constant magnets) | |
| Output voltage | 240V | |
| Rated power | 5000W | |
| Max power | 6000W | |
| Stator | silicon settle sheet | |
| Weight(without tower) | 600kg | |

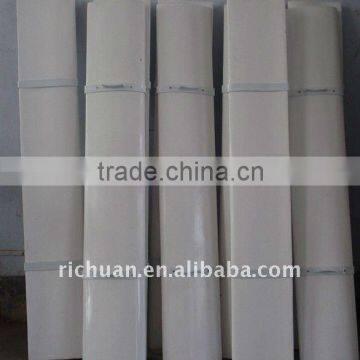

BLADES PARAMETER
| Rotor diameter | 4.0M | |
| Blades material | FRP(composite material) | |
| Blade length | 4.5m | |
| Rated rotate speed | 100r/min | |
| Rated speed | 12m/s | |
| Start wind speed | 3m/s | |
| Working wind speed | 3-25m/s | |
| Security wind speed | 40m/s | |

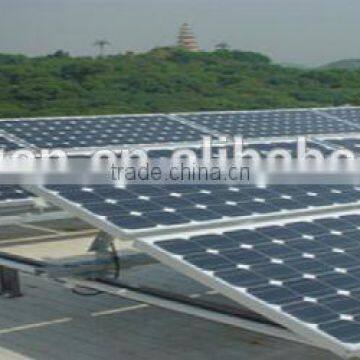

SOLAR PANEL PARAMETER
| Solar model | 5000W / 250W 20PCS | |
| Wp max | 250W | |
| Vmp | 30.5 | |
| Imp | 8.2 | |
| Voc | 36.7 | |
| Isc | 8.92 | |
| Size(mm) | 1650*992*40 | |
| Weight(kgs) | 21kg/pc | |

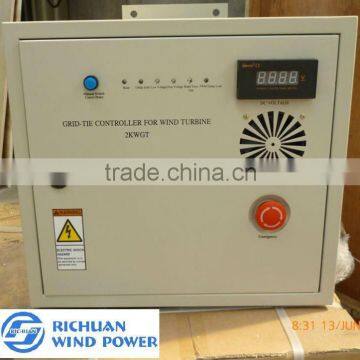

WIND POWER CONTROLLER
| Rated battery voltage | 240VAC | |
| Wind turbine power | 5000W | |
| Rated wind turbine maximum input current | 40A | |
| Rated wind turbine maximum instantaneous Input power | 10KW | |
| Output voltage | AC240V±4% | |
| Unload voltage | 280V | |
| Unload current | 25A | |
| Control Mode | PWM | |
| Display Mode | LCD | |
| Protection Type | Wind turbine current limitting, wind turbine automatic brake and manual brake. | |
SOLAR POWER CONTROLLER
| Solar panel power | 5kW | |
| Rated solar panel maximum input current | 15A | |
| Battery rated voltage | 240V | |
| Output voltage (default setting from the factory ) | 280V | |
| Control Mode | PWM | |
| Display Mode | LCD | |
| Protection Type | Solar cells reverse charging, solar cells anti-reverse,battery over charge, battery over-discharge, battery anti-reverse, lightning protecting, | |

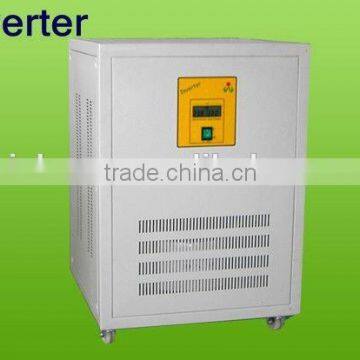

WIND SOLAR HYBRID INVERTER
| Rated output capacity | 5kVA | |
| Over voltage shutoff | 340 VDC | |
| Over voltage recovery | 330 VDC | |
| Under voltage shutoff | 210VDC | |
| Under voltage recovery | 240VDC | |
| Output wave form | Pure sine wave | |
| Display mode | LCD | |
| Display parameters | Battery Voltage, state parameters | |
| Inverter efficiency | Maxmum 90% | |
| Protection Function | Battery over voltage protection,Battery under voltage protection, Battery reverse-connection protection,Output over load protection, Output short circuit protection,Over temperature protection, switch function of electricity supply.. | |
TOWER PARAMETER
| Tower height | 8m | |
| Tower type | guy cable tower | |
| Material | Q235 steel plate | |
Our company possesses the variable pitch technology, is committed in the self-installation of the hydraulic tower and popularizes the development of the wind power on islands,
Our company has advanced equipment and manufacture process, complete quality management system and excellent technical team to provide high quality and environment-friendly products and improved power supply solution and first-class after-sales service for customers.
