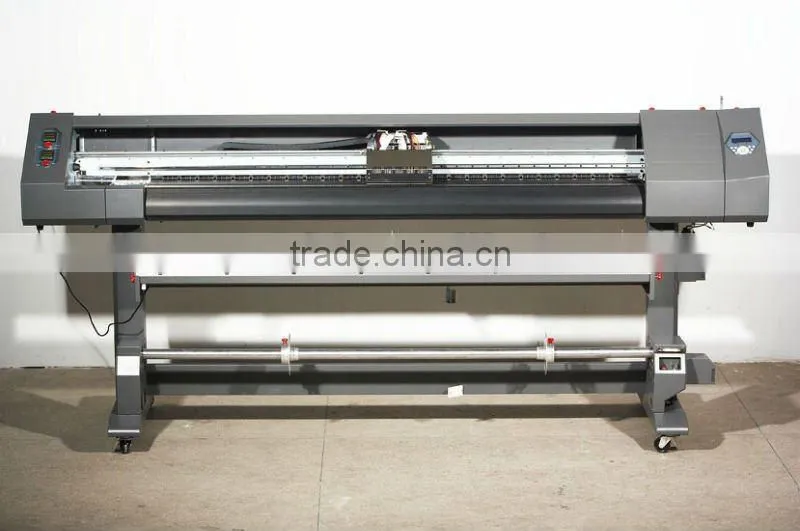

Help Center3.2m ECO Solvent Printer
Related Products
Specifications
1. ECO solvent printer with 1440 DPI;2. Print head: DX5, 1 or 2 pcs
3. Printing width: 1.8m, 3.2m
4. Rip software: Maintop
Our ECO solvent printers are 1.8m and 3.2m with 1 or 2 EPSON DX5 print heads, they are with Micropiezo printing technology, and the ink drop PL can change from 1.5pl to 2 pl. And they can use ECO solvent ink, sublimation ink and water-based ink.
Technical parameters
Model |
1801E |
1802E |
3201E |
3202E |
||
|
Printing Speed (m2/hour) |
2 pass |
28 |
56 |
34 |
67 |
|
4 pass |
14 |
27 |
16 |
32 |
||
6 pass |
9 |
18 |
11 |
22 |
||
8 pass |
7 |
14 |
9 |
17 |
||
|
Print heads |
Model |
Epson DX 5.0 |
||||
Technology |
Piezoelectric |
|||||
Quantity |
1-2 |
|||||
Color |
4 colors |
|||||
Resolution |
360dpi/720dpi/1440dpi |
|||||
Height to printing material |
2mm-4mm |
|||||
|
Width
|
Printing Width |
1800mm/3200mm |
||||
Material With |
1850mm/3250mm |
|||||
|
Ink
|
Ink Type |
C, M, Y, K Eco solvent ink or water ink or Sublimation ink |
||||
Ink Supply |
Automatic supplying |
|||||
|
Heating
|
Built-in Heater |
Front, Backing heating, Omron temperature-controlled meter |
||||
Heating Temperature |
Adjustable Scope: Normal temperature Recommended temperature: 30°C- 60°C |
|||||
Color |
Color Management |
ICC or Density Curve |
||||
Color Gamut |
16.7 million |
|||||
Color Mode |
RGB or CMYK |
|||||
Air-dry System |
|
Outside fan, inside winding suction apparatus |
||||
|
Printing Material |
Suitable Material |
All kinds of flex banner, mesh, self adhesive vinyl, cotton canvas, banner cloth, PVC cold laminating film, PP film, etc. |
||||
Weight Bearing |
70Kg |
|||||
|
Printer Info |
Data Interface |
USB2.0 |
||||
Rip Software |
Maintop |
|||||
Computer System |
Windows XP |
|||||
Power |
≤950W |
|||||
Frequency |
50Hz |
|||||
Voltage |
220AC(±10%) |
|||||
Dimension |
Packing Size |
3200mm*900mm*1300mm |
||||
Gross Weight |
438Kg |
|||||
