scrap tire recycling machine
Waste tyre recycling machinery mainly used for crushing waste tires to become reclaim rubber and the new products which can recycle the used tire in order to save resources and Protect the Environment.

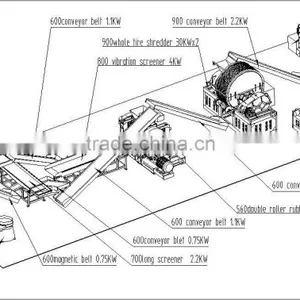

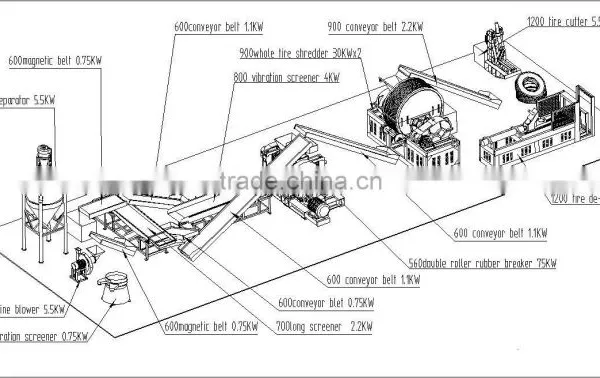

1.Process flow:
waste tyre--cutting loop mouth--cutting strip--cutting dice crushing filtering--magnetic separating filtering--finished products.
2.This machine has safety protecting device.
(1).electric protection
(2).safety device of roller
(3).This machine have autobrakes device
3.the model and technical parameter of rubber crusher
Machine name |
rubber crusher |
rubber crusher |
rubber crusher |
rubber crusher |
Model |
XKP-400 |
XKC-400 |
XKP-450 |
XKP-560 |
Roller dia.×length mm |
400×600 |
400×600 |
450×760 |
510×800 |
Ratio of rollers |
1:1.38 |
1:1.38 |
1:1.38 |
1:1.39 |
liner velocity of front roller M/min |
17.16 |
17.16 |
23.43 |
27.14 |
Production capacity Kg/h |
70~600 |
800 |
1000 |
2000 |
Max.roller spacing kg |
10 |
10 |
10 |
15 |
Motor power kw |
45 |
45 |
55 |
75 |
Overall dimension( length×width×height)mm |
4210×1850×1925 |
4210×1850×1925 |
4550×1970×1860 |
5620×2260×1900 |
Weight kg |
7500 |
7500 |
11000 |
11000 |
Remark |
Dry oil cup |
Dry oil cup |
Dry oil,thin oil |
Dry oil cup |
four auxiliary machine to produce rubber blocks
1. Ring cutter
Function: Cut the whole tire tread, sidewall and the inner ring.
Motor power |
Blade speed |
Adaptation tires |
Production capacity |
Dimensions |
Weight |
3KW |
15R/MIN |
650--1200 |
30article/h |
1150*850*1200 |
0.5T |
2. Strips cutter
Function: All kinds of tires, plastic, rubber blanket cut into bars
Motor power |
Processing efficiency
|
Processing diameter |
Discharge Size
|
equipment size
|
Equipment weight |
4KW |
20bars/h |
<1200 |
25-55 |
1230*650*1580 |
0.8T |
3. Rim cutter
Function: The machine should be, and supporting the use of tire cutting machine, used to cut strips of plastic blocks 3-5CM
|
Motor power |
Processing efficiency
|
Discharge Size
|
equipment size
|
Equipment weight |
7.5KW |
0.8-1T/H |
35*35 |
780*550*1210 |
0.8T |
4. Steel wire separator
Function: Mouth parts of the tire can circle the effective separation of crude steel and rubber
|
Motor power |
Blade speed |
Adaptation tires |
Production capacity |
Weight |
Dimensions |
11KW |
18r/min |
650-1200 |
1-2bars/min |
1500KG |
1700*1200*1300 |
