Above pre-treatment equipment, mainly for tires: Cut circle---- Cutting----Cuts--- circle wire separation. Decomposition of the advantages of this set of equipment: easy to place the plant anywhere, easy to operate, easy maintenance.
1. Ring cutter
Function: Cut the whole tire tread, sidewall and the inner ring.
Motor power |
Blade speed |
Adaptation tires |
Production capacity |
Dimensions |
Weight |
3KW |
15R/MIN |
650--1200 |
30article/h |
1150*850*1200 |
0.5T |
2. Strips cutter
Function: All kinds of tires, plastic, rubber blanket cut into bars
Motor power |
Processing efficiency
|
Processing diameter |
Discharge Size
|
equipment size
|
Equipment weight |
4KW |
20bars/h |
<1200 |
25-55 |
1230*650*1580 |
0.8T |
3. Rim cutter
Function: The machine should be, and supporting the use of tire cutting machine, used to cut strips of plastic blocks 3-5CM
|
Motor power |
Processing efficiency
|
Discharge Size
|
equipment size
|
Equipment weight |
7.5KW |
0.8-1T/H |
35*35 |
780*550*1210 |
0.8T |
4. Steel wire separator
Function: Mouth parts of the tire can circle the effective separation of crude steel and rubber
|
Motor power |
Blade speed |
Adaptation tires |
Production capacity |
Weight |
Dimensions |
11KW |
18r/min |
650-1200 |
1-2bars/min |
1500KG |
1700*1200*1300 |
Host |
Equipment |
Quantity |
Equipment Description and Function |
Rubber crusher |
1 |
The waste tire rubber and miscellaneous plastic pieces were breaking milling cycle |
|
|
Equipment |
Ring cutter |
1 |
Will tire side and tire top joint use a knife to slice; Make the side of the tire and tire top complete separation |
Strips cutter |
1 |
Will be cut into strips the tire sidewall, tire I circle reserved |
|
Rim cutter |
1 |
The tires will be cut into strips cut into 3.5 cm square block |
|
Big Shaker |
1 |
The powder for the first time separation (8 - 10 mesh) |
|
Small shaker |
1 |
The powder for the second time separation (20-30mesh) |
|
Large conveyor |
1 |
It is used for transportation does not meet the requirements of mesh powder to return the host to continue breaking |
|
Magnetic separation unit |
1 |
The powder was extracted in the separation of the metal wire |
|
Fiber separator. |
1 |
The powder was extracted in the wool fiber |
|
Steel separator |
1 |
will tire of crude steel mouth ring and rubber parts completely separated |
|
Remarks |
Above unit is in the process of tires used to crush the machine |
||

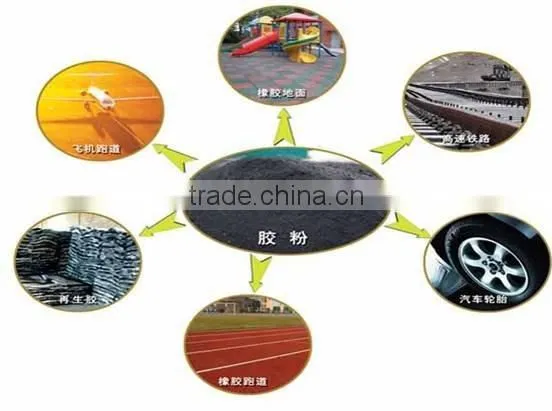

a,Sports venues
1. Rubber track 2.School playground 3.Kindergarten sport venues
4. Casino 5. Tennis and basketball courts 6. bowling alley 7.sidewalk
b,Construction Equipment
1. carpet lining 2. rubber tile 3. Roof padding and mulch 4. Floor. 5 Waterproof material 6. The roof and wall waterproofing materials
c,Geotechnical or lt applications
1. Drain. 2. Transportation 3. Sidewalks obstacles 4. Railway seam jointing sealants 5. The asphalt with rubber processing used for highway and driveway laid
d,Automobile industrycar and truck floor mats seal buffer tires anfd tire mats thermoplastic eal semi pne eumatic tires piopeline solid industrial tires cars ans truck floor mats seal buffer ttires and tire mats thermoplastic elastomeric products car and truck floor mats seal buffer tires and tire mats thermoplastic elastomeric products
crumb rubber modifiled asphalt highway construction the button of the artificial turf for playgrounds for the production
1 .Car and truck floor mats. 2. Seal 3. Buffer 4. Tires and tire mats
e,Thermoplastic elastomeric productelectric cables modifiled as phat highway construction the bottom of the artificial turf for play ground for the other sys term industrial tires other system crumb rubber modifiledasphalt highway pipeline solid industrial tires other sys terms electure cable dseni peneunamtic tires
1,Electric cable 2.Semi-pneumatic tires 3. Pipeline 4. Solid industrial tires
f,Other systems
1. Crumb rubber modified asphalt highway construction 2. The bottom of the artificial turf for playgrounds 3. For the production of composite railroad ties 4. Used for heavy and complicated traffic area of composite material 5. With plastic and can be used as heat plastic and rubber mixture
