Crumb Rubber Processing Machine/Rubber Crusher Machine
- qingdao china
- T/T
You May Like
Product Details
| Condition | New | Type | Other, rubber crusher | |
| Place of Origin | Shandong, China | Brand Name | eenor | |
| Model Number | all various | Voltage | 220-500v | |
| Certification | ISO9001:2008 SGS | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.crumb rubber machine was sold to 30 more than countries and regions.2.passed ISO/BV certificate.

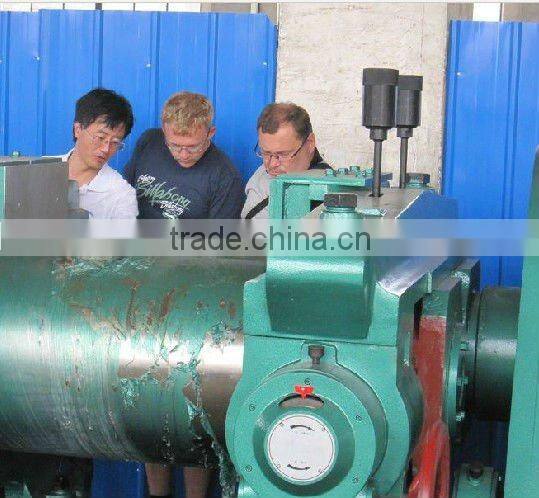

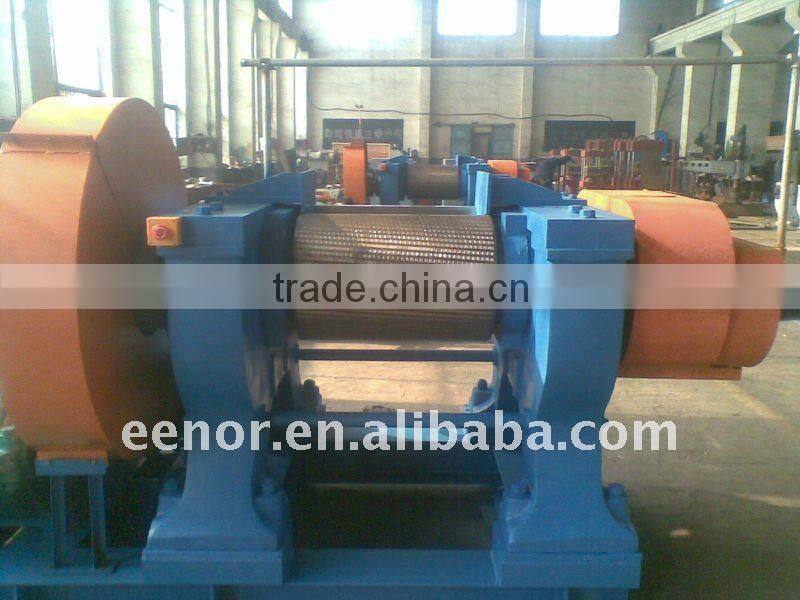

Crumb rubber processing machine/Rubber crusher machine:
1.Detailed informations
This machine is made up of one base, frame, front rollers, transmission gears, deceleration machine, adjustable from device, the temperature adjusting device, cutting knife components, the winder structure, safety switch and electric control system composition.
The rollers material for cold hard alloy iron, has high hardness &abrasion resistances. The temperature adjusting device, may to the general rollers within the steam and cooling water adjust the temperature to meet the technological requirements.
Turn the handwheel recoiler constitutive winding roller, can adjust the desired.
The machine is equipped with an braking brakes, emergencies, pull the security lever can immediately brake, which reduces the personal accident.
2.Chracteristics
1.Transmission with quality.
2.The rolls are made of chilled cast iron with wear-resistance hard surface.

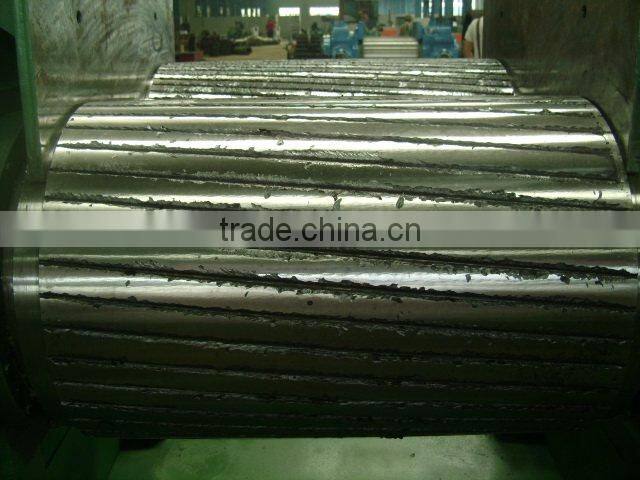

3.The rollers are grooved.
4.The bored rolls can be cooled through inputting the steam and colling water.
5.The two rollers rotate with different speed ,so that rubber material can be processed
6.The Excellent crushing structure is open gear transmissions
7.The product has ISO9001 CE standard and SGS certification .
3.Parameter of the Rubber Cracker
Parameters/version | XKP-400 | XKP-450 | XKP-560 |
Front roll diameter | 400 | 450 | 560 |
Back roll diameter | 400 | 450 | 510 |
Roll length | 600 | 650 | 800 |
Front roll surface speed (m/min) | 17.32 | 23.2 | 25.56 |
Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
Max. nip | 8 | 8 | 8 |
Feeding capacity per (kg) |
200-300 |
600-800 |
1500 |
Power(kw) | 45 | 60 | 75 |
Size(l*w*h) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
Weight(kg) | 7000 | 12000 | 19000 |
