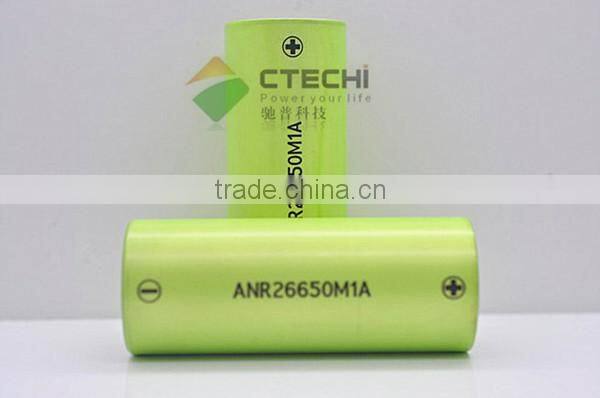

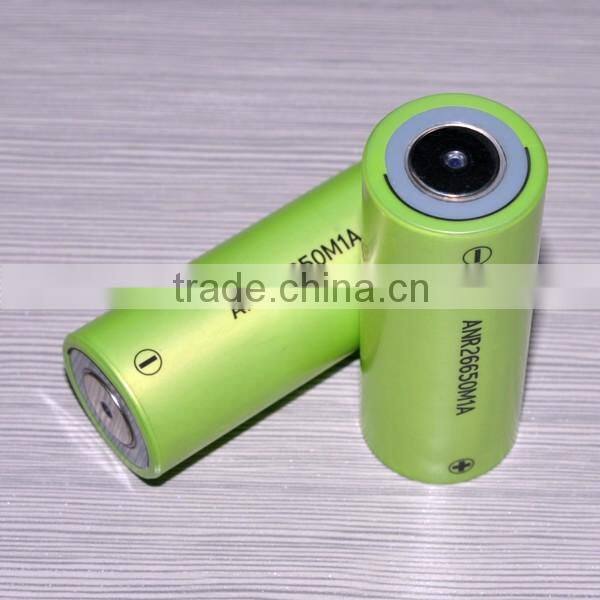

3.2v lifepo4 rechargeable battery
26650 specifications:
Cell Dimensions (mm): 26mm x 65mm
Cell Weight (g): 76g
Cell Capacity (nominal/minimum, Ah): 2.5/2.4
Voltage (nominal, V): 3.2V
Internal Impedance (1kHz AC typical, mΩ): 6
HPPC 10 Sec Discharge Pulse Power 50% SOC: 200 W
Recommended Standard Charge Method: 1C to 3.6V CCCV, 45 min
Recommended Fast Charge Method to 80% SOC: 4C to 3.6V CC, 12 min
Maximum Continuous Discharge (A): 70
Maximum Pulse Discharge (10 seconds, A): 120 A
Cycle Life at 10C Discharge, 100% DOD: >1,000 cycles
Operating Temperature: -30°C to 55°C
Storage Temperature: -40°C to 60°C
Benifits:
Power: Over 2,600 W/kg and 5,800 W/L
Safety: Excellent abuse tolerance and environmentally friendly
Life: Excellent calendar life, 10X cycle life vs. conventional lithium ion
26650 applications:
Portable high power devices
Stationary battery backup systems
Grid stabilization energy storage systems
Commercial truck and bus hybrid electric vehicles (HEVs)

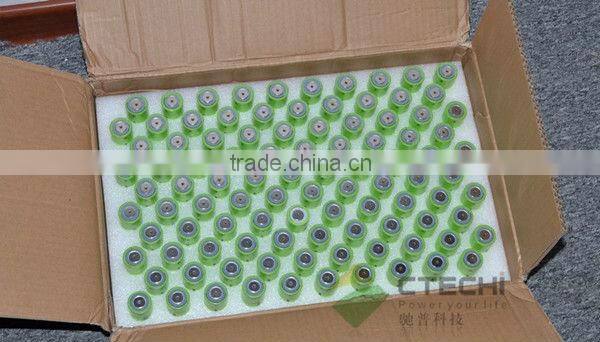

26650 battery package:
Lifepo4 battery:
| Model | Norminal voltage | Norminal Capacity | Typical capacity | Diameter | Height | Approx.weight | |||||
| V | mAh | mAh | mm | mm | g | ||||||
| IFR18650 | 3.2V | 1450 | 1500 | 18.3 | 64.5 | 43 | |||||
| IFR26650 | 3.2V | 2800 | 3000 | 18.3 | 64.5 | 82 | |||||
| IFR26650 | 3.2V | 3000 | 3200 | 18.3 | 64.5 | 85 | |||||
| IFR26650 | 3.2V | 3400 | 3400 | 18.3 | 64.5 | 87 | |||||
Safety instructions
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway
Payment
We accept L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Order process
1.After we comfirmed the battery you want,we'll give you the price
2.Price agreed then we'll make 100% inspection before delivery .proforma invoice for you to make payment(Paypal/Western Union accept)
3. Payment finished then we'll start production,then 5-7day,the goods will be sent out
4. Then 3-5 days,the battery will arrive at your door,order finished
About us
We are specialized in the production and exportation of all kinds of high-efficient batteries and various electronic components with marketing experience for many years. Our major products include rechargeable batteries such as Li-Ion, Li-Polymer, Li-FePO4, Nickel Metal Hydride batteries, Nickel Cadmium batteries, Lead acid batteries, Gel batteries, to primary batteries To cater for the varying needs of different customers, we could offer OEM, ODMservices!
CTECHI will be your best choice !
skype:ctechsales09
QQ:2355452587
ICQ:678829508
or send me E-mail.
Your inquiry will be responced soon.
