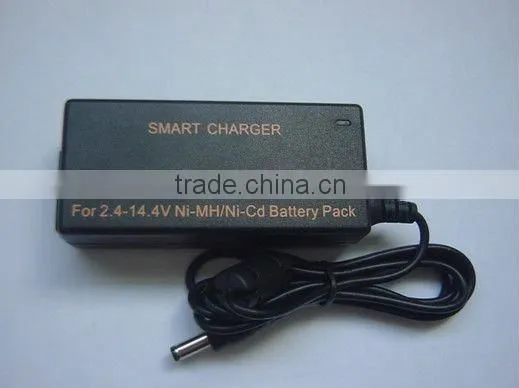

Smart charger for rechargeable Ni-MH & Ni-Cd battery pack

Specifications

Smart charger for rechargeable Ni-MH & Ni-Cd battery pack
- For 2.4-14.4V battery pack
- Can charge 12pcs Ni-MH/Ni-CD battery

Smart charger for rechargeable Ni-MH & Ni-Cd battery pack





Voltage:



Minimum	Normal	Maximum	Unit
100	115/230	240	Vrms



Frequency: 47Hz~63Hz

Current: 0.5A MAX/100Vac

Inrush current: 115V/40A(max.), 230V/80A(max.) at 25°C at cold start.

Leakage Current : <0.75mA/230Vac

Power efficiency : 78%Min@100Vac,80%Min@240Vac,Full load



This charger can charge 12pcs series Ni-MH/Ni-Cd battery

Individual package



Fast delivery time



Welcome your samples order to test



Its output voltage is 0V at standby. When connecting the battery and detecting the voltage from battery, the charger will begin to work, the output voltage rangeis 8-19V and the current is 0.75-0.85A.



Outline dimension:96L X 44W X 28.5(H) mm MAX
