Specifications
ptef hose rubberSAE 100R14
7-year-manufacturing and exporting experence
SAE 100R14 ptef hose rubber

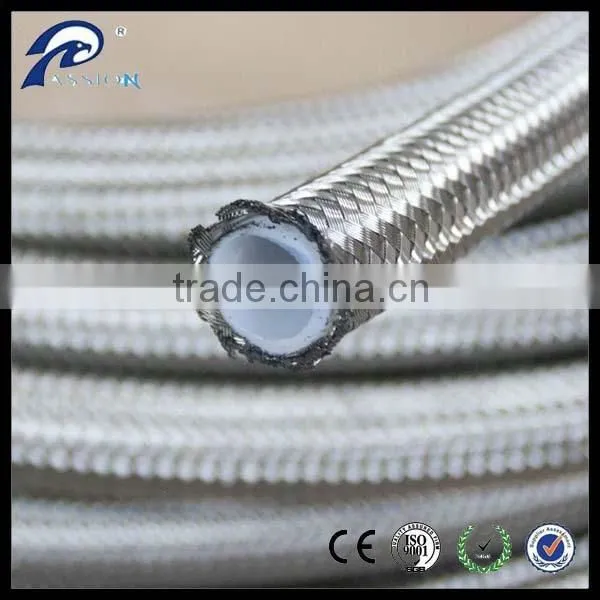

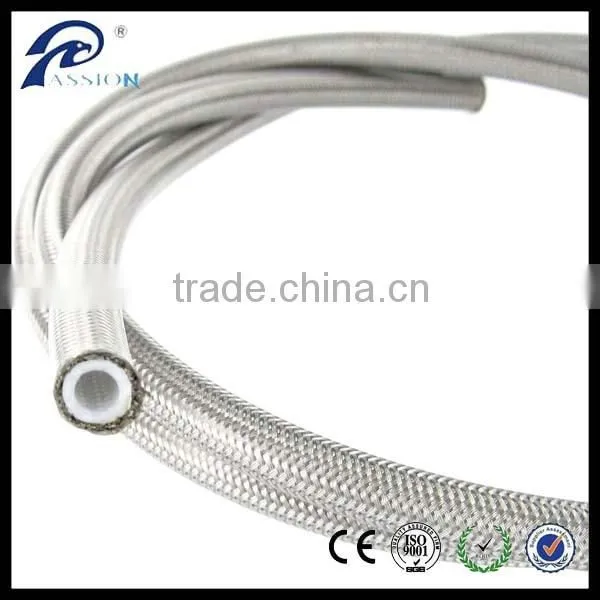

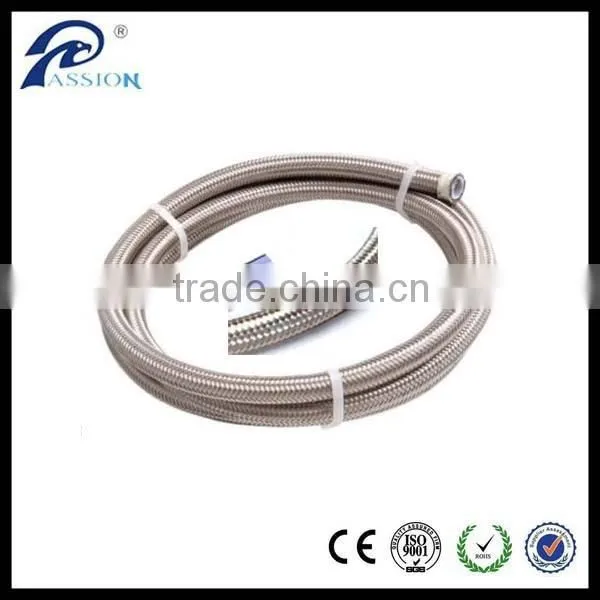

The PTFE Tube has a PTFE inner liner with 308 stainless steel braid. It is durable and professional hose that resists leaks and fumes. It is rated up to 3000 psi. This hose is suitable for brake and power steering lines.
- Stainless steel outer cover for excellent abrasion resistance
- Recommended for brake, E85, Alcohol, transmission, clutch, nitrous, power steering, oiling, hydraulics & vacuum applications
- Minimum temperature -70°C, Maximum temperature 250°C
| Product Code | Nominal ID | OD | Thickness | Pres. Work. | Pres.Burst. | Rdius Curve |
| mm | mm | bar | bar | mm | ||
| STH-03 | 3/16"(4.8mm) | 7.6 | 1.4 | 206 | 828 | 50 |
| STH-04 | 1/4"(6.35mm) | 9.5 | 1.57 | 206 | 828 | 75 |
| STH-05 | 5/16"(7.94mm) | 10.9 | 1.48 | 172 | 692 | 100 |
| STH-06 | 3/8"(9.5mm) | 12.8 | 1.65 | 138 | 552 | 125 |
| STH-08 | 1/2"(12.7mm) | 16.3 | 1.8 | 120 | 484 | 165 |
| STH-10 | 5/8"(15.9mm) | 19.2 | 1.65 | 103 | 416 | 187 |
| STH-12 | 3/4"(19mm) | 22.6 | 1.78 | 69 | 276 | 212 |
| STH-16 | 1"(25.4mm) | 30.9 | 2.75 | 69 | 276 | 225 |
Ideal for industrial, as well as home use
Every PTFE tube is hand inspected, so quality is always top of the line
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company of a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 35 days for a 20' container)
