Detailed Product Description

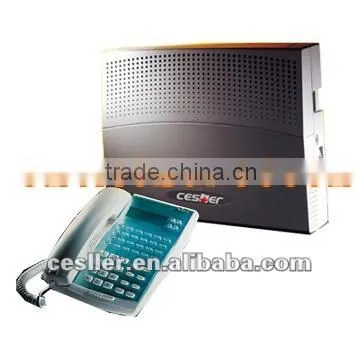

PABX Info
Capacity: Lines- 4~ 8 Exts.-16~32
Weight:2.8 Kgs
Size:360 X 275 X 90 mm
1.Can be connected with 4 Key Phones, users can program by Key Phone and normal phone. Can also monitor outside line and extensions status by Key Phone.
2.Call Queuing: System can assign several incoming calls to different extensions averagely, which are routing at the same time in order to save calling time in order to save calling time and make other extension have chance to be called.
3.An incoming call number can be displayed at 5 extensions at the same time, that is convenient for users to check call number at different extension.
4.IP Routing: System can switch to be in IP routing mode by programming and you can save one of two IP numbers without passwords in system. Then, system can route your long-distance calls automatically through IP routes in order to save money.
5.Two Caller ID mode FSK and DTMF: Incoming call is available for both. Outside call number and internal call number can be displayed on key phone and extension telephone again and again.
6.Classes of Service: In order to save call charge, you can set classes of service for extensions, account codes and CO-to CO passwords, for long- distance call, Local Call, Intercom and Un-restricted Call and so on..
7.32 group accompany password: in order to save call charge, system can assign one people one group accompany password. User can make a call at any extension and the charge is stored at the password. And accompany password can be set to class and deposited.
8.Built-in the duration out-going message: can be set to day or night or other different service mode. The first duration is Hello, please extension number directly, dial '0' for operator assistance; the second duration is the extension is busy now, please dial other extension number; the third duration is nobody answer, please dial other extension number. Duration total is 20 seconds.
9.Flexible numbering: extension number is 2-4 digits and the leading number is "1", "2", "3".
Product Specifications:
POWER SUPPLY:
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
ENVIRONMENTAL LIMITS
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
