China factory cheap video intercom system for apartments / school intercom systems / intercom system 12v
• Enable to record three sections of computer telephonist reminder tone , each for 30 seconds
• Caller ID Display for inside and outside line
• Incoming telephone calls can not lost when transfer calls for many times
• Enable to freely assign extension number with 1/2/8 as the leading number (2, 3 or 4 digits)
• Enable to connect with one of ourselves key phone
• Support 8 groups conference call

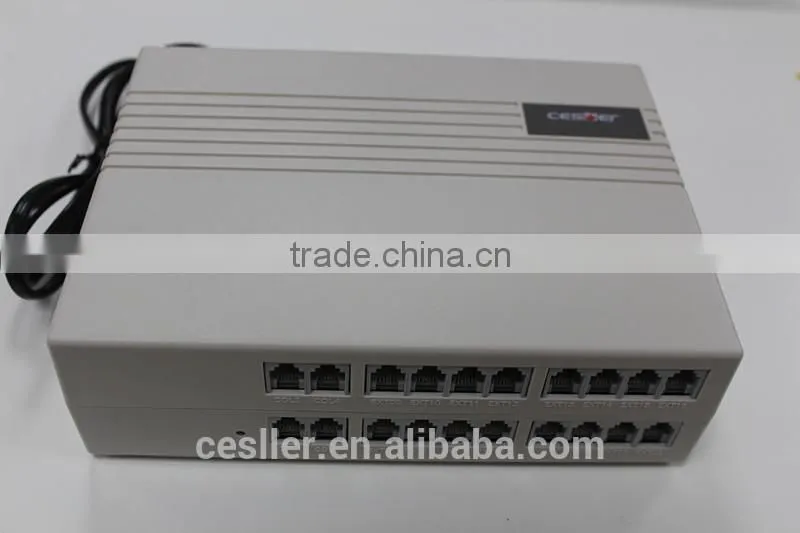

• Front view
Special design with our logo CESLLER and customers' logo are optional on the basic of a certain of quantiry.
Clearly show our customers 4 lines and 16 extensions , the most left is the indicator light.

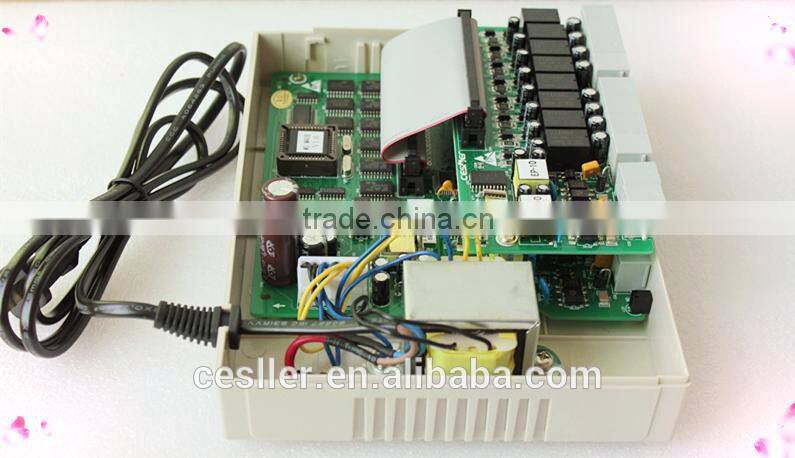

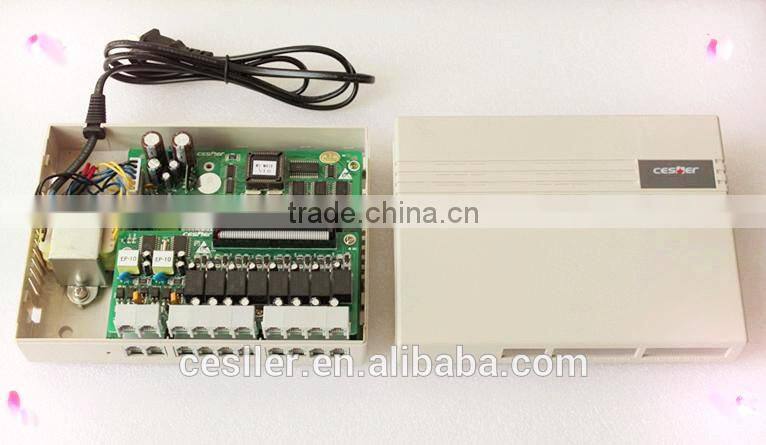

• Inside picture
Specific internal picture remove cusromers' misgiving, the cover is separate from the mainboard.
| Model | WS824-Q10 | WS824- M416 |
| Basic Capacity | 2 COs 8 Exts | 4 COs 16 Exts |
| Max Co Lines | 2 | 4 |
| Max Exts | 8 | 16 |
| Size(L*W*H)(mm) | 311*215*70 | 311*215*70 |
| Weight(kg) | 1 | 2 |
| Auto-attendant | 1 route 3 parts | 1 route 3 parts |
| Key Phone | 1 | 1 |
| Caller ID Display | Y | Y |
| Call Queuing | 1 group | 1 group |
| Exts flexible numbering | 1/2/8 leading | 1/2/8 leading |
| Auto Day/Night Service | Y | Y |
| Mobile Account | 32 groups | 32 groups |
| Auto IP economical route | Y | Y |
| Call to Exts when power off | 2 roads | 2 roads |
| Multi-party Conference | 1 group 8 parties | 1 group 8 parties |
| Manger-Secretary function | Y | Y |
| Class of Services Restrict | Y | Y |
| Conversation Time Limitation | Y | Y |
| Setting Operator | Y | Y |
| Hotline Dialing | Y | Y |
| Special Line for incoming and outgoing call | Y | Y |
| External Music Port | Y | N |
| Call Cut-Off | Y | Y |
| Key Phone dispaly | English | English |
| Auto Call Back if transfer with no-answer | Y | Y |
| Call Hold Retrieve | Y | Y |
| Do not Disturb | Y | Y |
Power supply
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
Environment Limitation
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
Cable Requirements
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
(1) Ports for extension sets: Ext01-Ext16;
(2) Ports for CO line; CO1----CO4
(3) Port of external music source;
(4) Port of power plug;
(5) Port of power indication light;

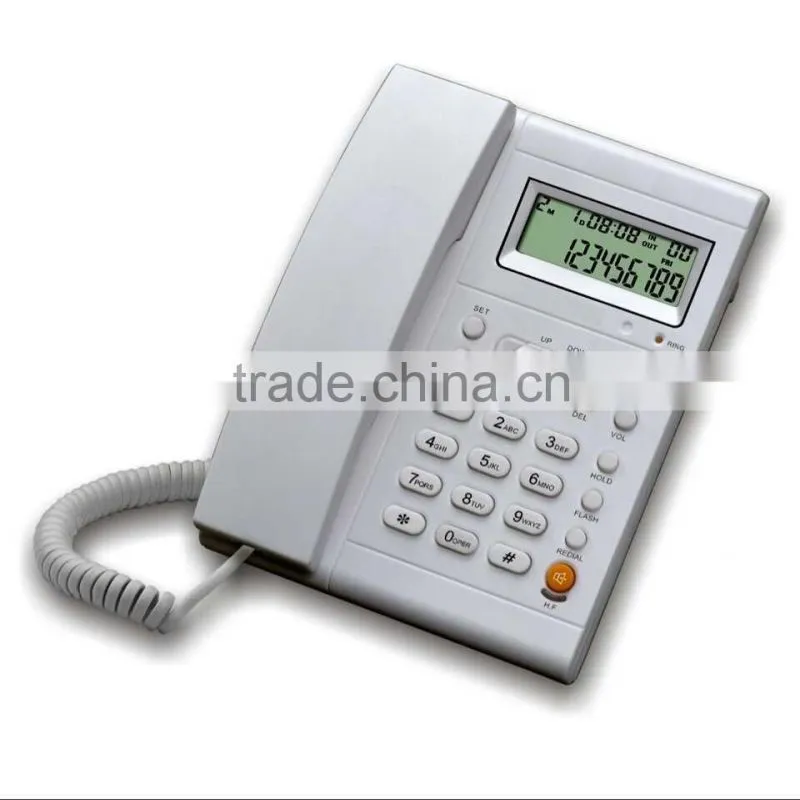

Key phone and analog phone
Shenzhen Guowei Cesller Technology Co.,Ltd,specialized in manufacturing group phone system products and communication equipment.Cesller is a high-tech enterprise whose headquarter lies in Canada. It is a diversified company setting design research and products development as a leader,including production, sales and service.
Shenzhen Guowei Cesller Technology Co.,Ltd
Contact Person:Lanny-Liu
Tel:+86-0755-61363900-238
