Portable Loading Docks Mobile Loading Ramps Mobile Container Ramp For Sale
- Qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
CE Certificated Mobile Hydraulic Container Loading Dock Ramp For Forklift
-
Loading Dock Ramp Hydraulic Mobile Yard Ramp
-
Container Load Dock Ramp/mobile Loading Ramp
-
Hydraulic Container Dock Lift, 8t Adjustable Used Loading Lock Ramp For Sale
-
Manual Hydraulic Mobile Dock Ramp /yard Ramp
-
Mobile Dock Ramp/container Yard Loading Mobile Loading Ramps
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | DCQG | Lift Mechanism | Other, mobile dock ramp | |
| Lift Drive / Actuation | Hydraulic | Power | Custom made | |
| Rated Loading Capacity | 4000kg-12000kg | Min. Lifting Height | 0.9 | |
| Max. Lifting Height | 1.7m | Table Size | Custom made | |
| Overall Dimensions | Custom made | Weight | 2200, 2200kg | |
| Certification | CE;ISO9001:2000 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

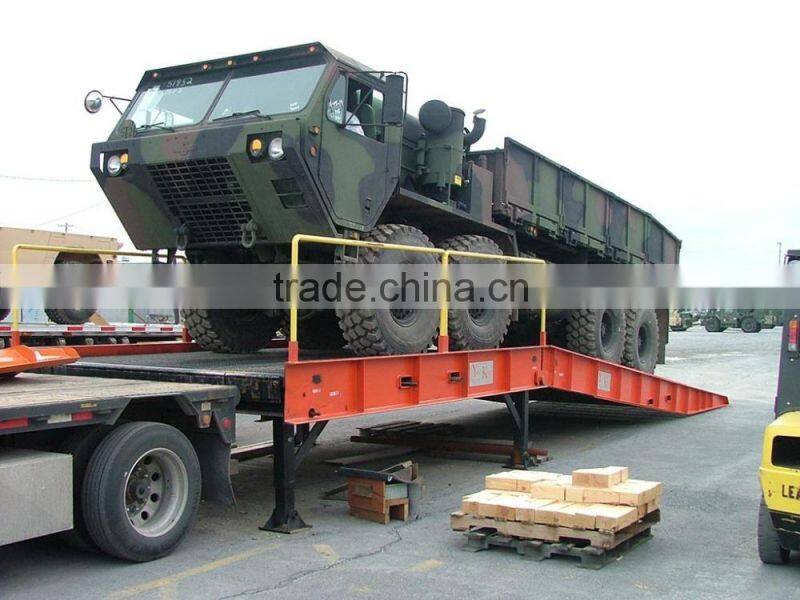

hydraulic dock ramp is the special auxiliary equipment used for loading and unloading of goods. Its height can be adjusted with the different heights of lorries. Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person operating.
Hydraulic system
1. With handle pump, screw the return valve clockwise.
2. Move the handle stick, to lift the ramp slowly.
3. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
Operation process
1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
The mobile dock ramp is widely used for factory.warehouse etc. Loading and unloading goods
Nude package.1x40HQ container load 2 sets
