Ceramic Fiber Tape

Ceramic Fiber Tape thumbnail-1
Ceramic Fiber Tape photo-1
Negotiable MOQ: 1000 Kilometers (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Heat Insulation
Thickness:
2-10mm
Width:
20-150mm
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Heat Insulation
Thickness 2-10mm
Width 20-150mm
Length 30m
Chemical Composition Al2O3 SiO2
Working Temperature 1050-1350
Thermal Conductivity 0.045
Place of Origin Shandong, China
Brand Name Yao Xing
Model Number YXTX

Specifications

Yao Xing Ceramic Fiber Tape:
Thickness: 1.5, 2, 3, 5mm;
Width: 20-200mm;
Ladder tape available upon request.

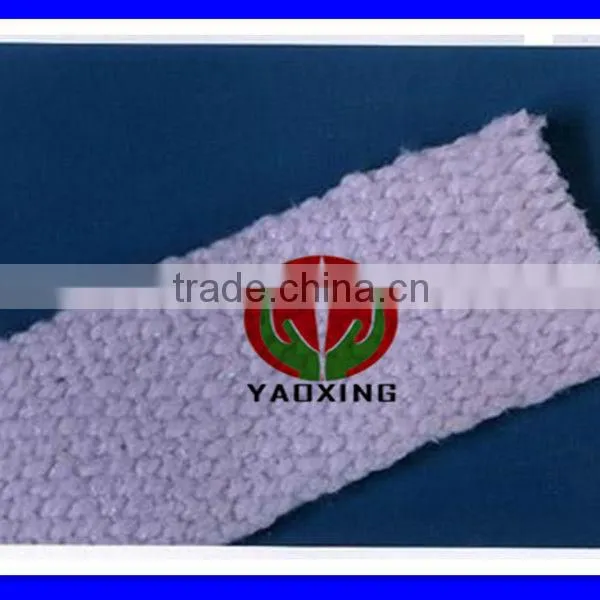

Ceramic Fiber Tape

ceramic fiber tape
1.YAO XING 1260 ceramic fiber tape is a cost-effective insulating tape made from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260°C.

2.YAO XING 1400 tape is a high performance industrial tape made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1400°C. YAO XING tape contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the tape retains enough strength to be used as effective insulating cloth at high temperatures.



Availabilities

 Thickness: 1.5, 2, 3, 5mm
 Width: 20-200mm
 Ladder tape available upon request.

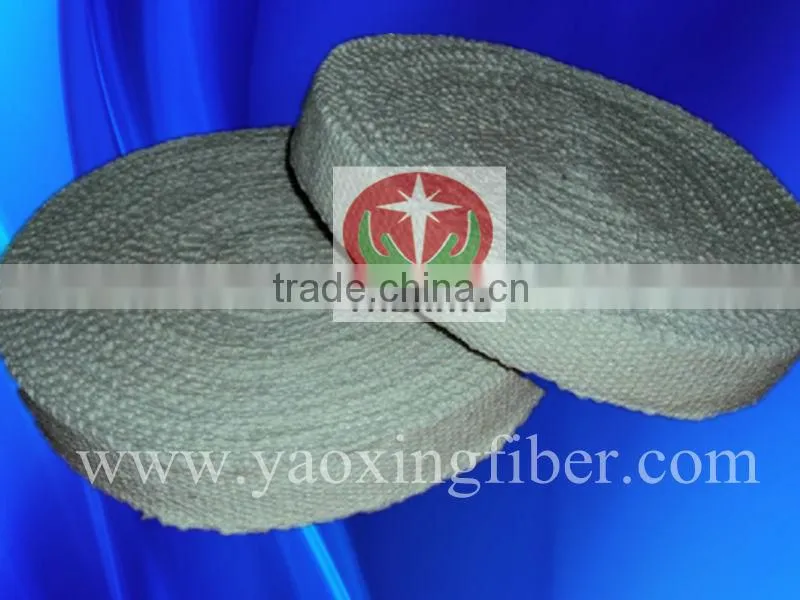

ceramic fiber tape




Applications

1.Furnace curtains
2.Protection against high temperature
 3.High temperature electrical insulation
4.Cable and fuel line protection
5.Fire protection
6.Insulation of industrial chimney

ceramic fiber tape



 ceramic fiber tape

Technical Index:



Classification Temperature

1260

Product

1260 ceramic fiber tape

Code

YXTX-208B1

YXTX-208B2

Service Temperature(°C)

450

1000

Basic Material

Ceramic fiber/glass fiber reinforced

Ceramic fiber/ stainless steel reinforced

Theoretical Density (kg/m3)

600

Specification (mm)

3000×20/50/75/100×2/3

Moisture Content(%)

≤2

Warp Density

56-60piece/10cm

Weft Density

24-30piece/10cm

Organic Content (%)

≤15





 ceramic fiber tape
