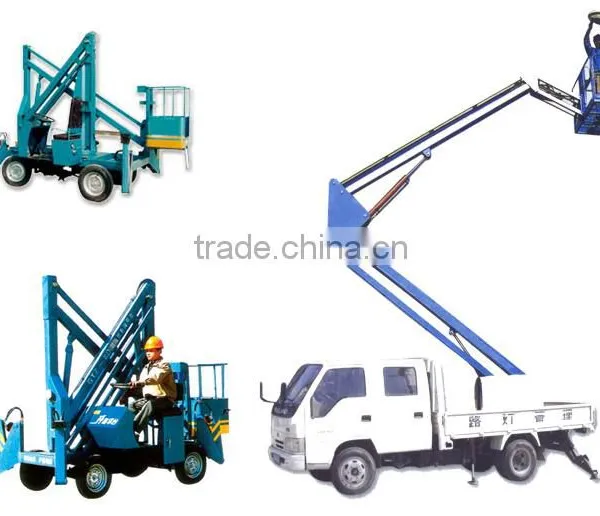

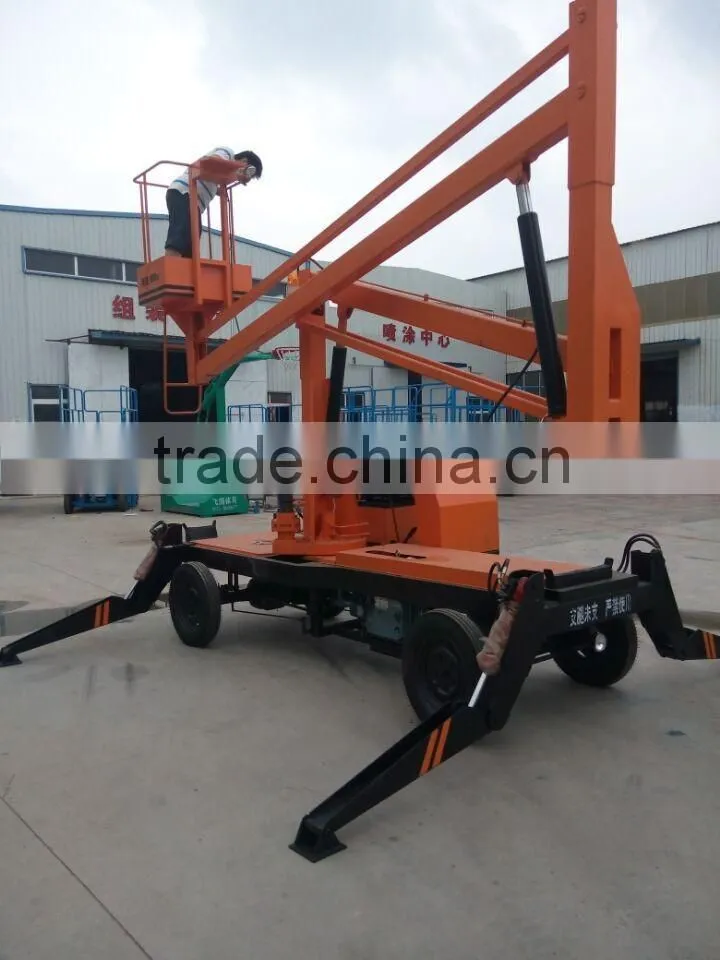

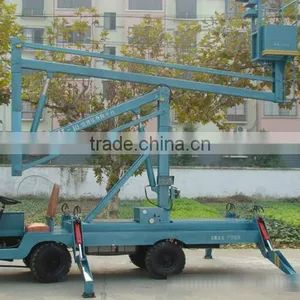

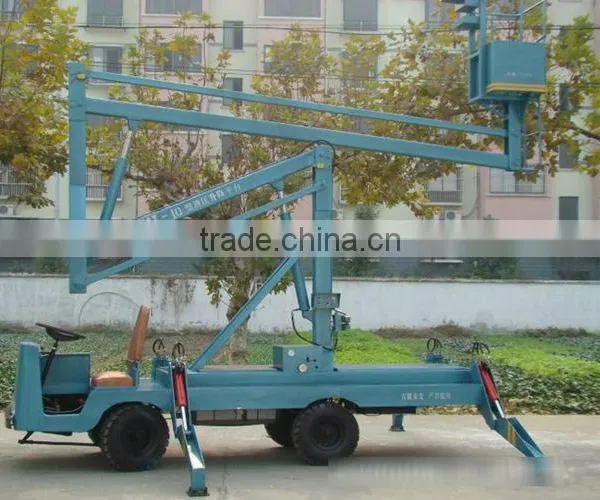

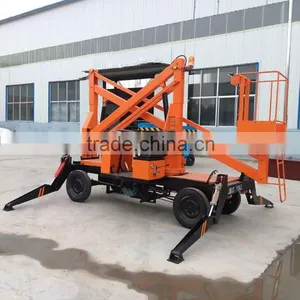

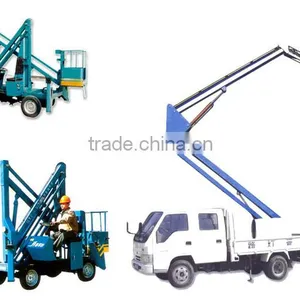

10-15m lifting height Crank arm folding work platform
Specifications
1.Overcoming Obstacles to work
2.flexible
3.lifting height:10--15m
4.load capacity:200kg
Description:
- Diesel driven, self-propelled, lift automatically, be operated both in the up platform and down.
- With articulating boom structure, be rotary to 360°, having the special function which scissors type and telescope type have not --to work across the obstacles.
- With 4 full-automatic hydraulic outriggers to support the balance of whole machine, equipped with the security system in case of the emergency.
- Available for 2 persons working ,Widely used for cleaning the windows, installing and maintaining of the lights, decorating and repairing of the factory house, and some other operations of high-altitude.
Features:
1.Platform
Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2.Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive
It can be diesel or storage battery according to customer's requirements.
4.Material
Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder:
Original import or domestic joint venture hydraulic cylinder, with high quality, improving the reliability and prolonging the work time,
6.Aloft work platform
Equipped with balanced valve, automatic pressure maintaining ,etc.
Model list
Specification |
Max height (m) |
Max radius (m) |
Rotate angle |
Capacity (kg) |
Lifting speed (M/S) |
Overall size (L*W*H)mm |
Pressure (Mpa) |
Weight (kg) |
Moving speed (km/h) |
Wind resistance |
GTZ-8 |
10 |
3.4 |
360· |
200 |
0.05--0.09 |
3500×1700×2900 |
12 |
1600 |
15-20 |
≤5 |
GTZ-10.5 |
12 |
3.4 |
360· |
200 |
0.05--0.09 |
3700*1900*2900 |
12 |
1600 |
15-20 |
≤5 |
GKT-11.5 |
13 |
4 |
360· |
200 |
0.05--0.09 |
3800*1900*2900 |
12 |
1850 |
15-30 |
≤5 |
GKT-12.5 |
14 |
4.3 |
360· |
200 |
0.05--0.09 |
5100×1950×2950 |
12 |
2000 |
15-30 |
≤5 |
GKT-13.5 |
15 |
4 |
360· |
200 |
0.05--0.09 |
5300×1950×3300 |
12 |
2200 |
15-30 |
≤5 |

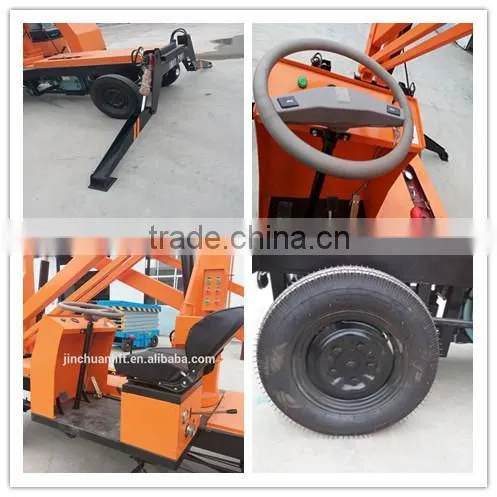

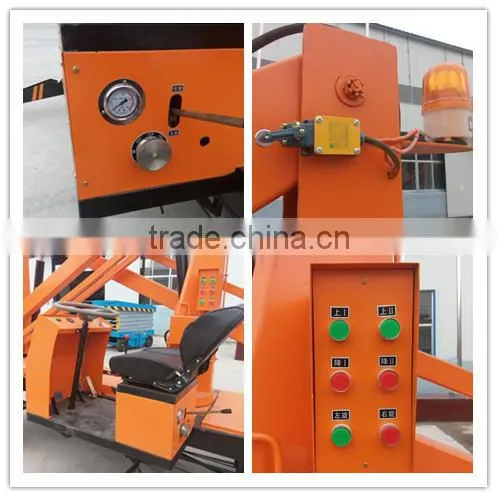

Detailed parts:
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height, power
source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we
can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
