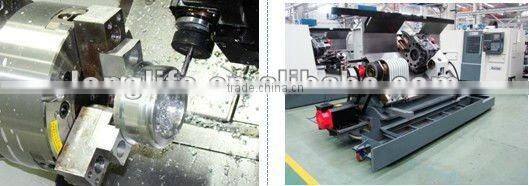

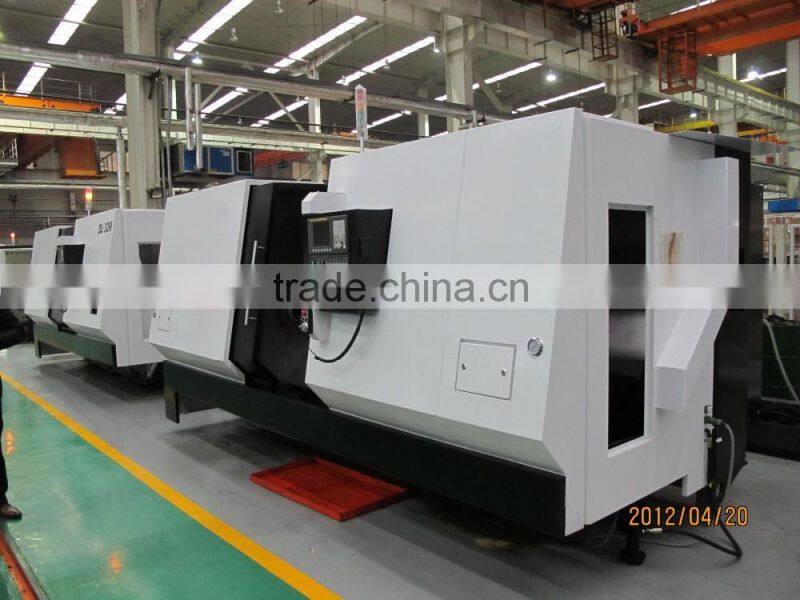

DL32MHx1500 cnc turning center for sale
DL-series cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.

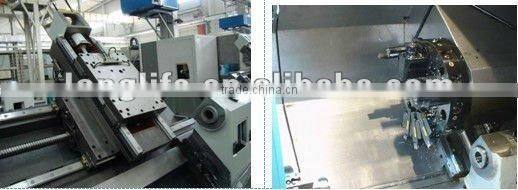

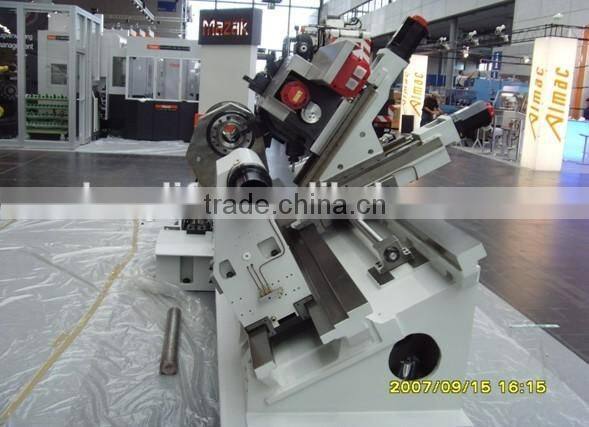

2. 45 degree slant bed with sound vibration absorbing features.
3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.
4. Integral wide-range AC spindle motor features high torque output at low speed.
5. Turning, drilling, milling and tapping can be achieved with the Italy imported 12 station hydraulic turret.
6. Live tooling, C-axis, rigid tapping and robust tailstock generating;
7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;
8. CE Standard and CE Certificate;
9. with C-axis and Living tooling;
Specifications | Unit | DL32MHx1500 cnc turning center |
Max. swing over bed | mm | 680 |
Max. turning length | mm | 1500 |
Max. turning diavarious shafts) | mm | 400 |
Max. turning diadiscs) | mm | 600 |
Chuck size |
| 15" |
Spindle nose |
| ISO A2–11 |
Spindle speed | r/min | 20~2000 |
Main spindle motor power | kW | 22/30 |
Dia. of spindle through hole | mm | 100 |
Max. Bar dia | mm | 84 |
Min. resolution |
| 0.001 |
Rapid traverse X and Z axis | m/min | 13/13 |
Cutting feed X and Z axis | mm/min | 0~5000 |
X/Z servo motor torque | Nm | 22/22 |
X -axis travel | mm | 375 |
Z-axis travel | mm | 2030 |
Positioning precision of X/Z axis | mm | 0.012/0.020 |
Repetitive positioning precision of X/Z axis | mm | 0.006/0.012 |
Turret type/Number of stations |
| live tooling could be located on all 12 position |
Mode for turret selection |
| random |
Indexing time(one step/full step) | s | 0.4/1.85 |
Max. tail stock dia | mm | 160 |
Max. tail stock travel | mm | 180 |
Weight | kgs | 8500 |
Packing size | mm | 5084x2082x2050 |
