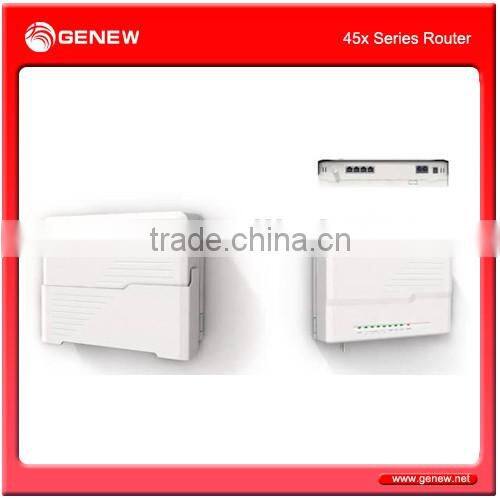

Genew OnAccess 45x Router Series PTP ONU for "triple Play" Services

1. OnAccess45x Router Series is an Optical Network Unit (ONU) designed for “triple play” services in the P2P (point to point) based FTTH (Fiber to the Home) network.

    It is a high-performance and cost-effective device supporting Ethernet-based data, CATV, VoIP (Voice over IP) and 802.11n WLAN services.

   The integrated 802.11n WLAN network offers users stable and reliable wireless connections for speed multimedia and data traffic.

2. OnAccess45x Router Series is also ready to serve packet television (IPTV) and VoD (Video on Demand) applications.

    It provides a wide transparent bandwidth to support CATV analog channels or a combination of analog and digital channels including HDTV broadcast.

    And it has an integrated VoIP function to support SIP-based telephony services.

n Physical and Environmental

n Management

l Web-based user interface (HTTP)

l Quick Start Wizard

l Configuration backup and restore

l Firmware upgrade via TFTP

l Management session time out

l Three levels of user authorization (superuser, administrator and guest)

l SFP internal ID and status monitoring capability

l Syslog

l Provides one reset button

n Network

l Provides one SFP based 100Base-FX/1000base-X single mode fiber network WAN port with CATV overlay

l Provides four 10/100/1000Mpbs auto-negotiation Ethernet LAN ports

l Supports 802.3x flow control

l Supports four LAN ports configuration

l Maximum packet lengths up to 1522 (Default) / 2048 / 10240 bytes

l Supports port aging timer configuration

l Supports 802.1p, port-base, DiffServ QoS package classification with four priority queues

l Supports SP and WRR Queue Scheduling Algorithm

l High speed Layer 3 routing

l Network Address Translation (NAT)

l Supports Multi-VLAN

l Supports DHCP Server and DHCP Option

l Dynamic DNS

l Supports NTP Client

l Supports UPnP

l IGMP Proxy V1/V2

l Static NAT

l Supports DMZ host

l VPN Pass-through(IPSec/PPTP/L2TP)

l Port Forward

l Supports LLTD

l Supports 802.1D STP

l MAC Address/IP/Port Filter

l Web URL/Host Filter

l Content Filter

l SPI (Stateful Packet Inspection) firewall

l DoS (Denial of Service) Defense

l WAN network interface support Fixed IP, DHCP Client, PPPoE, PPTP and L2TP

n Wireless Access Point  (Only for OnAccess451WR/452WR/454WR/455WR)

n CATV (Only for OnAccess452R/452WR/454R/454WR)

n Telephony with VoIP (Only for OnAccess454R/455R/454WR/455WR)

Packaging:

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement

Shipping:

1. We shipping via DHL  / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo  for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.

1,We can provide detail documents and remote help for device installation and configuration.

2,Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3,Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.

Genew Technologies Co., Ltd. designs, manufactures and sells telecommunications infrastructure, handsets and customer premise equipment and provide services associated with their installation, operation, and maintenance. Our portfolio also includes OEM/ODM services with world-class telecommunication partners such as Huawei, ZTE, Datang Mobile, UTStarcom, Nokia-Siemens Networks and Fiberhome.

While historically the vast majority of our sales have been to industrial clients involved in Mining, National Grid and Military in China, we have expanded our focus to build a global presence and currently sell our products in several other established and emerging growth markets, which include Japan, India, Latin America, EMEA and Asia.

  Any request or query, please directly contact us.
