Grooved Aluminum Surface Floor Expansion Joint Covers for School Childern's Safety

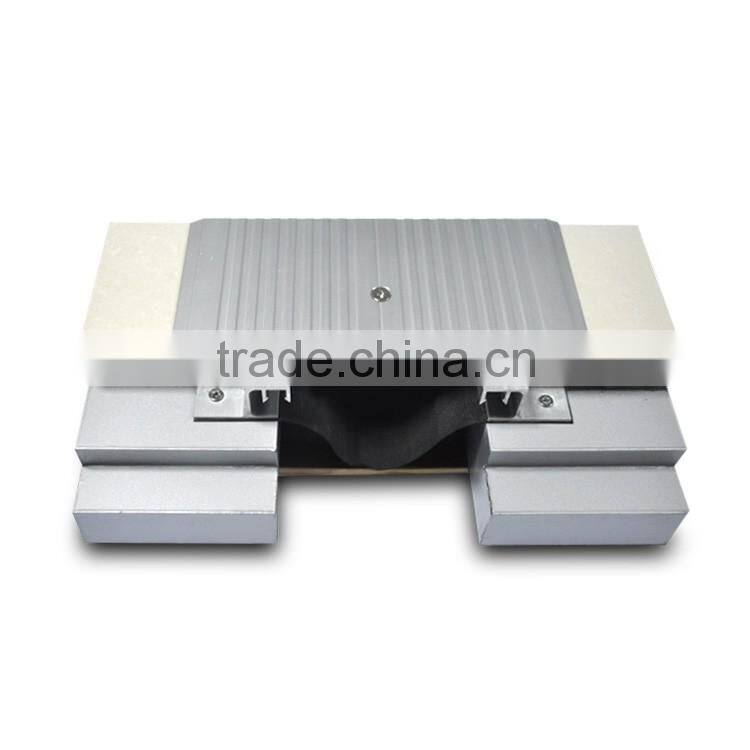

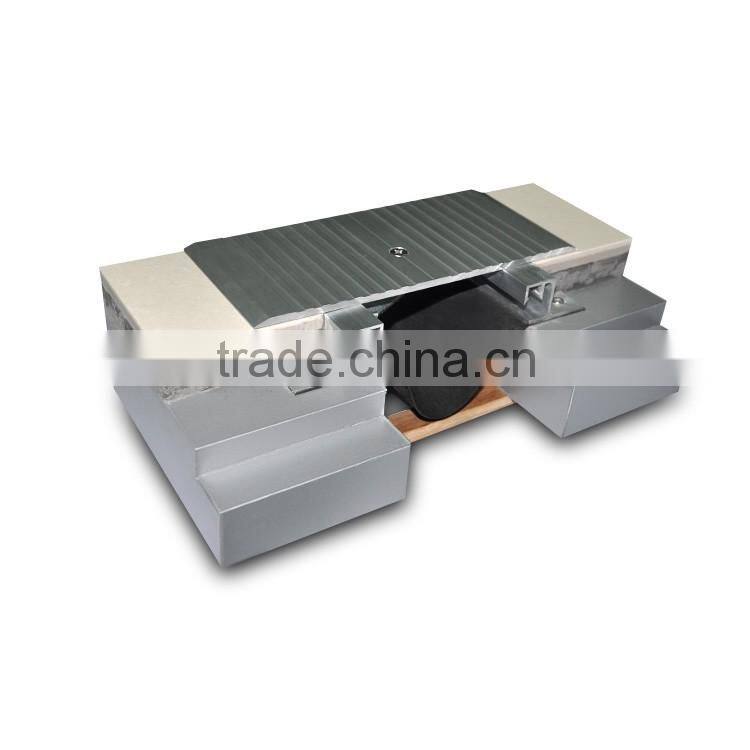

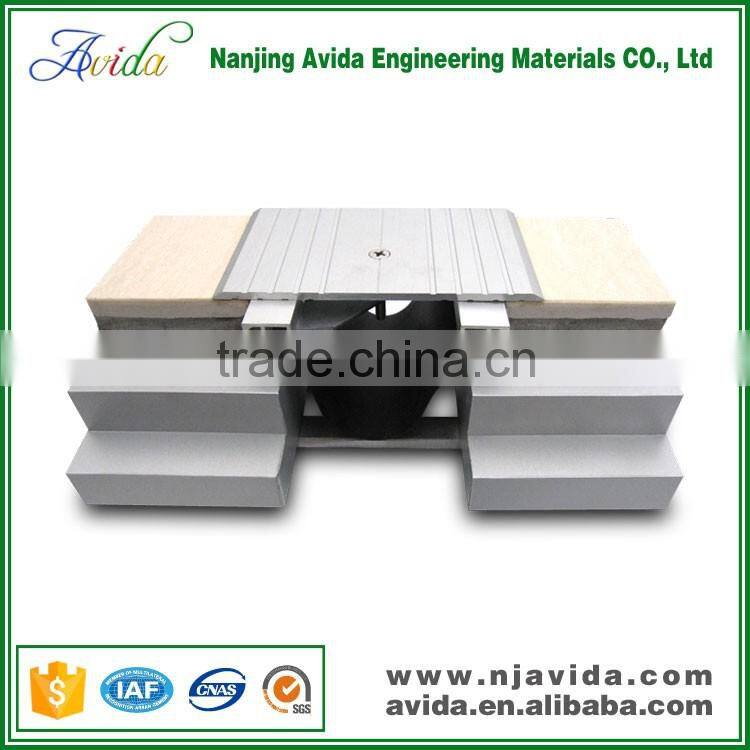

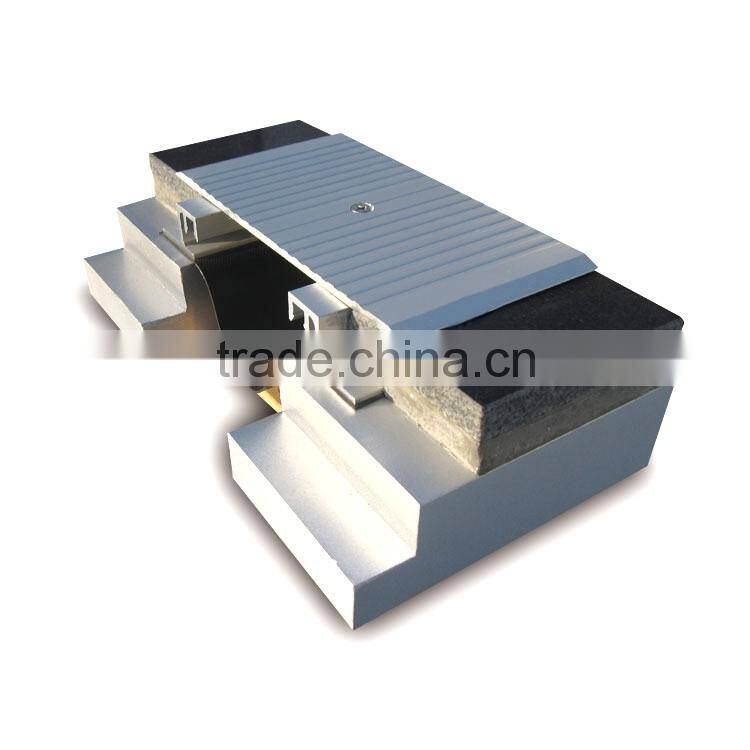

ADG Grooved Aluminum Surface Floor Expansion Joint Covers for School Childern's Safety consists of aluminum bases, an extruded aluminum top plate, a center slide bar and a water barrier (fire barrier optional) beneath. The top plate with safety grooved lines covers the whole joint exposing surface and its bases so as to ensure ADG integral outlook.

Movement at the joint is accommodated by the angle between center slide bar and aluminum base. When the center slide bar moves nearly parallel to the base, the angle in between reaches minimum; when the center slide bar moves nearly vertical to the base, the angle in between reaches maximum. The ADG is designed as standard expansion joint.

AVIDA floor expansion joint system series are simply designed and accommodate modern architectural amenity. AVIDA floor expansion joint covers provide solutions not only for construction movement but also for all construction problems being triggered, and reduce lots of floor maintenance work brought by construction cracks, crack leakage, and other latent risks of construction physical expansion or compression.

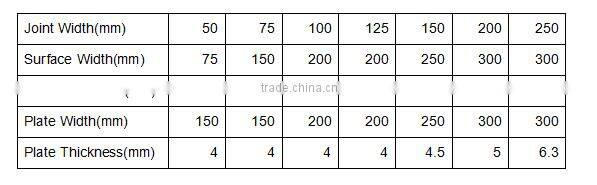

Technical Data

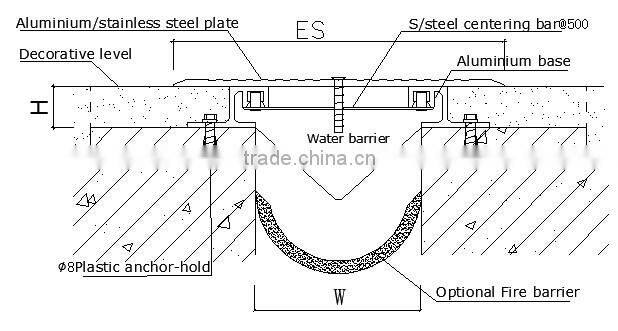

Product Drawing

Features

1.Extruded aluminum with serrated surface and beveled edges accommodates safety.

2.Anodized surface with high anti-corrosion and abrasive resistance.

3.Available for both interior and exterior use.

4.With high aesthetic value.

5.Easy to install and clean.

6.Ideal for carpets, vinyl, ceramic tiles and other sorts of floor finishes.

7.Accommodating dynamic movement without degradation of the material.

8.No exposed aluminum base accommodating integral outlook.

Packing Details  : 1.pearl cotton as seperation 2.carton for inner package 3. plywood for outer package

Delivery Details : 1.Safety package, Three steps of packages,pearl cotton,carton and plywood for the transportation
