New Design Fingerprint Car Starter System,biometric Anti-hijack Car Security System

     Ospon enterprise is expert in developing & production  RFID locks,Digital locks,NFC locks,Biometric locks,Digital safes,NFC safes,Biometric safes,Biometric car security system and other related security&electronic products.

The world's most advanced

fingerprint car security system

We insist to choose the best fingeprint sensor,which is  made by FPC company ( Fingerprint Cards Acated in sweden.world's most advanced fingerprint technology company,working with samsung,fujitsu,huawei and other world famous high technology companies).

Main function

1 live fingerprint identificationUsing live fingerprint recognition technology to encrypt the original vehicle anti-theftsystem, eliminating the original car alarm control technology may be breakingbecause of secret defects and human annoyance of borrowing car, correctfingerprint must be entered to start the car

2  start the car automaticallyWhen you insert the car keys to the car's ignition switch and rotate to the "ON" andenter the correct fingerprint, the car will disarm the alarm and start automatically;(after installation,the system must be set up as anti-theft mode to have this feature)

3  fast setting and multi-mode startup operationUsing the left and right buttons to storage & remove fingerprints fast; to switch withfingerprint startup mode, password security mode and car maintenance mode.

4  large capacity fingerprint storage30 fingerprint users can be set according to the voice prompts

5  the bilingual promptsThe system can freely switch between Chinese and English voice.

6  emergency startIf vehicle flameout caused by operational errors. Simply twist the key back to theOFF position restart in six seconds without fingerprint authentication.

7 low pressure alarmThe system has a low voltage detection function, if it detects the battery voltage islower than 9V, it will voice prompts your car's voltage is too low

8  the start time learning functionSystem will remember how long time is needed when you first start the car production standardsThis system complies with the Q / SZ 5-2005 standard

Parameters

1  host rated working voltage: DC 10V ~~ 15V

2  host rated operating current (standby state): <10mA

3  host rated operating current (start state): 0.4A

4  host control relay biggest shock capacity:>40A

5  work properly maximum power: <5W

6  Normal working temperature: - 40 ° C to 85 ° C

7  Case Material: ABS flame retardant material

8  interface standard: industry-standard interface

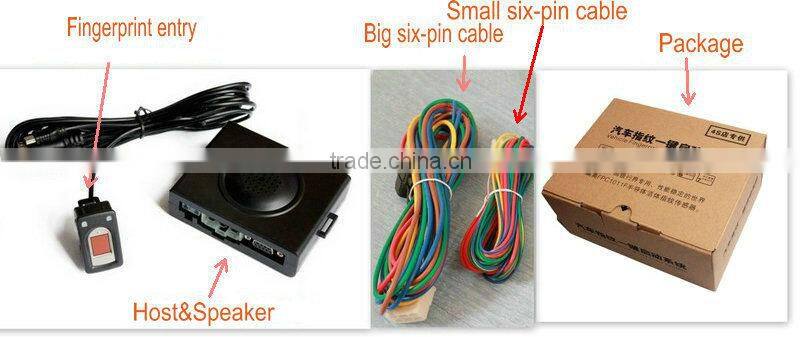

Contains

Live fingerprint controller accessories list:

Host x1 pc

Fingerprint entry x1pc

DB9 cable line x1set

Big six-pin cable x1set

Small six-pin cable x1set

Manual 1pcCertificate x1pc

Installation diagram x1pc

Product warranty card x1pc

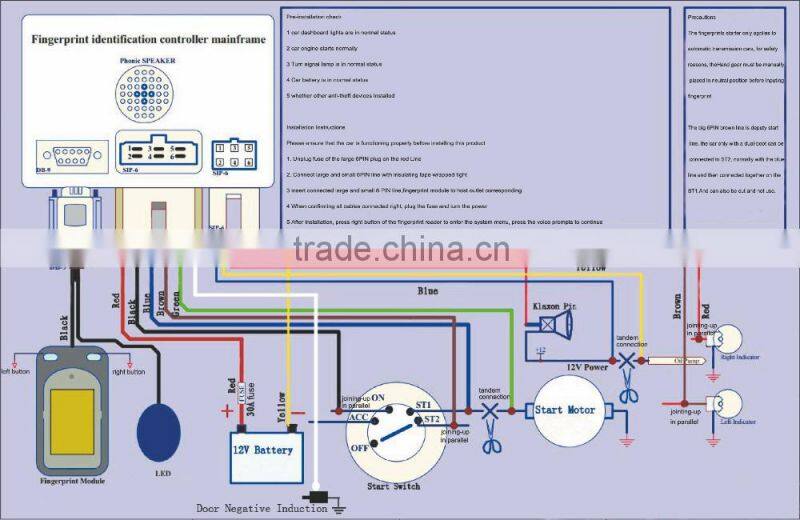

Wiring diagram

Operating procedure

Go to the manual details step

1. First,turn the key to the OFF position or pull out the key

2.Long Press right button until the broadcast voice menu prompts for fingerprint entrying (initial use will be prompted to register the user's fingerprint, you can enter the menu with any of these pre-registered fingerprint since then )

3. Enter the menu, press the right button or wait 10 seconds to enter the next menu level automatically

4. Press right button to enter into mode selection, press left button to confirm, right button to choose

There are car maintenance mode ( no need fingerprint to start the car under this mode) and fingerprint start mode, exit menu by pressing right button.

Note:

In setting up the fingerprint input, a fingerprint registration must be entered twice, and the twice entry must be by the same finger. These two were stored as a template, in order to improve the system's fault tolerance. In the two entry process, if the deviation of the contact take place in the fingers and entry slot is too large, the system will refuse to register and take them as different fingerprint. If two entry finger position change too small, the system may collects two exactly same fingerprint  and refuse the registration

we recommend that the best to use the thumb, index or middle finger one to entry. Thumb’s lines are clearer, index finger and middle finger are more flexible and convenient to use. In addition, the best lines to register the fingerprint is clear, obvious feature points and no damage
