Professional Brazed Welding Diamond Saw Blades for Granite&concrete Cutting
US$ 20 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QCNG
Model Number:
QCNG-blade saw
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diamond Blade Material and Polished Finishing Diamond Saw BladeUS$ 6 - 199MOQ: 1 Piece -
Saw Blade Type and Ti-coated Finishing Lapidary Diamond Saw BladesUS$ 6 - 199MOQ: 1 Piece
-
Flush Cut Diamond Blade for Granite, Marble, ConcreteUS$ 20 - 199MOQ: 1 Piece
-
Diamond Blade Blank Cutting Tools/ Power Tool Type Saw BladeUS$ 6 - 199MOQ: 1 Piece
-
Solid Tungsten Carbide Slitting Saw Blade Diamond BladeUS$ 6 - 199MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
QCNG
Model Number
QCNG-blade saw
Type
Saw Blade
Blade Material
Alloy Steel
Finishing
Ti-coated
Size
300-850mm
Product Description
Professional brazed welding diamond saw blades for Granite&concrete cutting

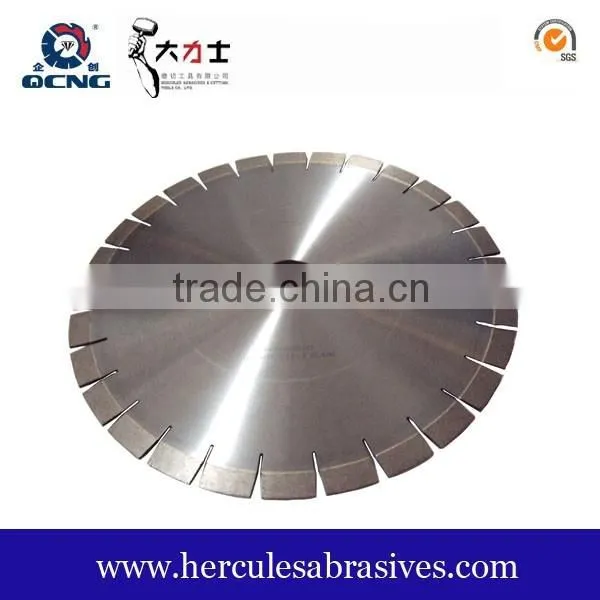

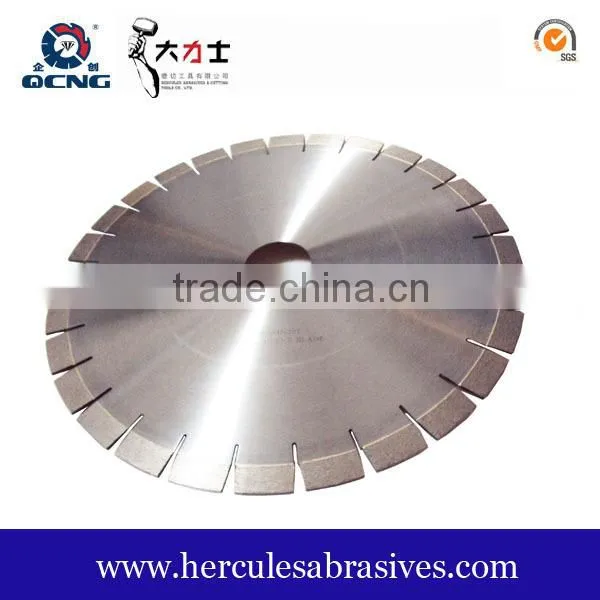

1.General Diamond Saw Blade For Granite
(1) Characteristics of product
- Excellent comprehensive cutting performance.
- Applicable for granites of various hardness classes, multi-purpose.
- The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
(2) Specifications of product
| Product | Diameter | Steel Core | Segment | Segment | Arbor | Application |
| Name | (mm) | Thickness(mm) | Dimension(mm) | Number | (mm) | |
| Edge Cutting Blade For Granite | 300 | 2.2 | 40x3.2x10(15,20) | 21 | 20/22.23/25.4/50/60 | Granite |
| 350 | 2.2 | 40x3.2x10(15,20) | 24 | |||
| 400 | 2.6 | 40x3.6x10(15,20) | 28 | |||
| 450 | 3 | 40x4.0x10(15,20) | 32 | |||
| Splitting Blade For Granite | 500 | 3 | 40x4.0x10(15,20) | 36 | ||
| 550 | 3.6 | 40x4.6x10(15,20) | 40 | |||
| 600 | 3.6 | 40x4.6x10(15,20) | 42 | |||
| 650 | 4 | 40x5.0x10(15,20) | 46 | |||
| 700 | 4 | 40x5.0x10(15,20) | 50 | |||
| 750 | 4 | 40x5.0x10(15,20) | 54 | |||
| 800 | 4.5 | 40x5.5x10(15,20) | 57 | |||
| 850 | 4.5 | 40x5.5x10(15,20) | 58 | |||
| Other specifications are available upon request. | ||||||
| Silent and non-silent blades are available for choice. | ||||||
2.General Diamond Saw Blade For Marble
(1) Characteristics of product
- Ideal edge trimming quality with better blade continuity and narrower segment gap.
- Better cutting sharpness and trimming efficiency.
- Widely used for cutting marbles and soft stones.
(2) Specifications of product
| Product | Diameter | Steel Core | Segment | Segment | Arbor | Application |
| Name | (mm) | Thickness(mm) | Dimension(mm) | Number | (mm) | |
| Edge Cutting Blade For Marble | 300 | 2.2 | 43/40x3.2x8.0/10 | 22 | 20/22.23/25.4/50/60 | Marble |
| 350 | 2.2 | 43/40x3.2x8.0/10 | 25 | |||
| 400 | 2.6 | 43/40x3.6x8.0/10 | 29 | |||
| 450 | 3 | 43/40x4.0x8.0/10 | 32 | |||
| Splitting Blade For Marble | 500 | 3 | 40x4.2x8.0/10 | 36 | ||
| 550 | 3.6 | 40x5.0x8.0/10 | 40 | |||
| 600 | 3.6 | 40x5.0x8.0/10 | 42 | |||
| 650 | 4 | 40x5.5x8.0/10 | 46 | |||
| 700 | 4 | 40x5.5x8.0/10 | 50 | |||
| 750 | 4 | 40x5.5x8.0/10 | 54 | |||
| 800 | 4.5 | 40x6.0x8.0/10 | 57 | |||
| 850 | 4.5 | 40x6.0x8.0/10 | 58 | |||
| Other specifications are available upon request. | ||||||
| Silent and non-silent blades are available for choice. | ||||||

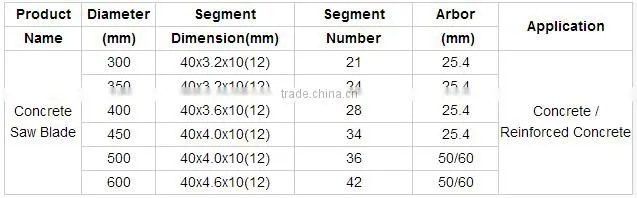

3.General Diamond Saw Blade For Concrete
(1) Specifications of product
Other specifications are available upon request.Welcome to contact us for more detail information and business negociation.
Your satisfaction is our eternal pursuit.
Hercules Abrasives & Cutting Tools Co., Ltd.
Xiamen Qicheng Import & Export Co., Ltd.
#12, Xingbin Rd., Jimei, Xiamen, Fujian China 361022
Tel: 0086-592-6256606
Fax: 0086-592-6287717
Xiamen Qicheng Import & Export Co., Ltd.
#12, Xingbin Rd., Jimei, Xiamen, Fujian China 361022
Tel: 0086-592-6256606
Fax: 0086-592-6287717
2. Shipping: by mail or by air or by sea
Our Services
1. OEM & ODM are accepted.
2. Good quality of product with safely packaging
3. Relative quarry or stone processing machines are offered. One stop service for you to save the time and cost.
