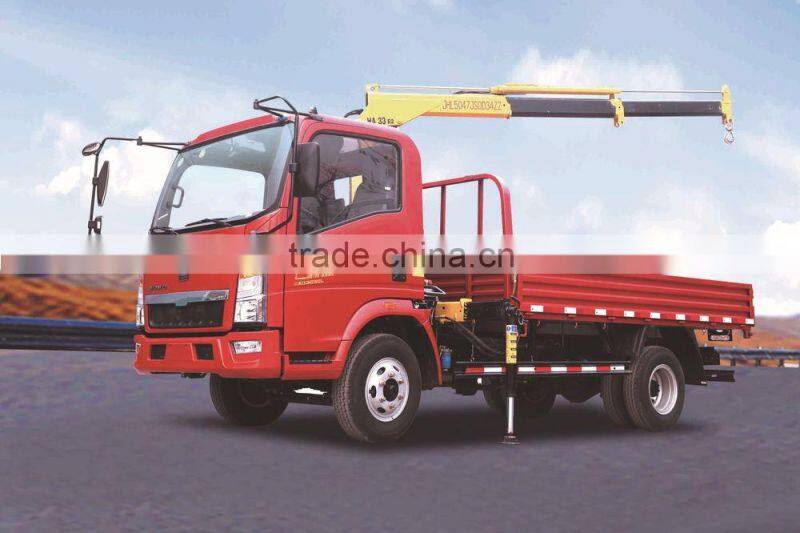

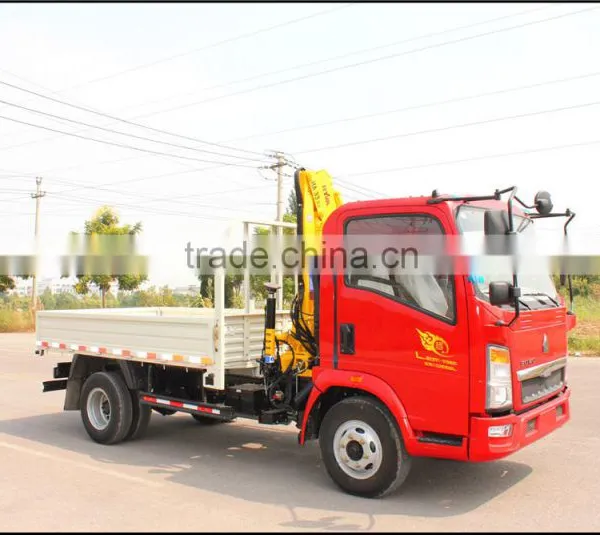

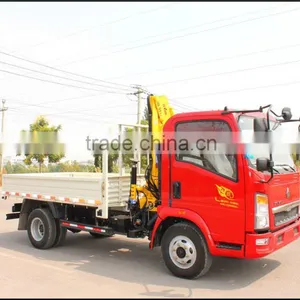

Howo 4*2 Light truck with 2T crane Truck Mounted Crane Truck
basic configurations and main technical parameters(Maximum lifting load 2T 4*2,EUROⅡ,extended cab)
| Item | content | Paramenter | ||
| Crane parameter | Crane parameter | SQ34Z2 | ||
| Max Lifting Moment (T·m) | 4.2 | |||
| Maximum lifting load(kg) | 2000 | |||
| Maximum working radius (mm) | 3540 | |||
| The basic arm arm length (mm) | 1540 | |||
| Base boom maximum lift height(mm) | 4200 | |||
| The longest boom maximum lifting height(mm) | 6500 | |||
| Crane jib maximum elevation(°) | 65 | |||
| Crane jib minimum elevation(°) | 0 | |||
| OUTRIGGERTRANSVERSAL SPAN(mm) | 1800-3600 | |||
| curb weight (kg) | 3010 | |||
| Total weight(kg) | 16000 | |||
| Over length of the truck(mm) | 5995*2150*2810 | |||
| Dimension of Cargo body(mm) | 5540*2300*600 | |||
| wheelbase,mm | 4600 | |||
| Front/rear overhang(vehicle/chassis),mm | 1500/2277 | |||
| Wheel track(front/rear),mm | 2022/1830 | |||
| Approach/departure angle(vehicle/chassis) | 23/15 | |||
| Maximum speed,km/h | 90 | |||
| Maximum climbing ability,% | 20 | |||
| Minimum turning diameter,m | 24 | |||
| Typical vehicle model | ZZ1047D3414C145 | |||
| Cab | Model | HW76 | ||
| Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
| Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
| Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
| Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
| Displacement,L | 9.726 | |||
| Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
| Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
| Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
| Front axle | HF9 drum-type,rated load of 9T | |||
| Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
| Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
| Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
| Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
| Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
| Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
| Tank volume,L | 400 | |||

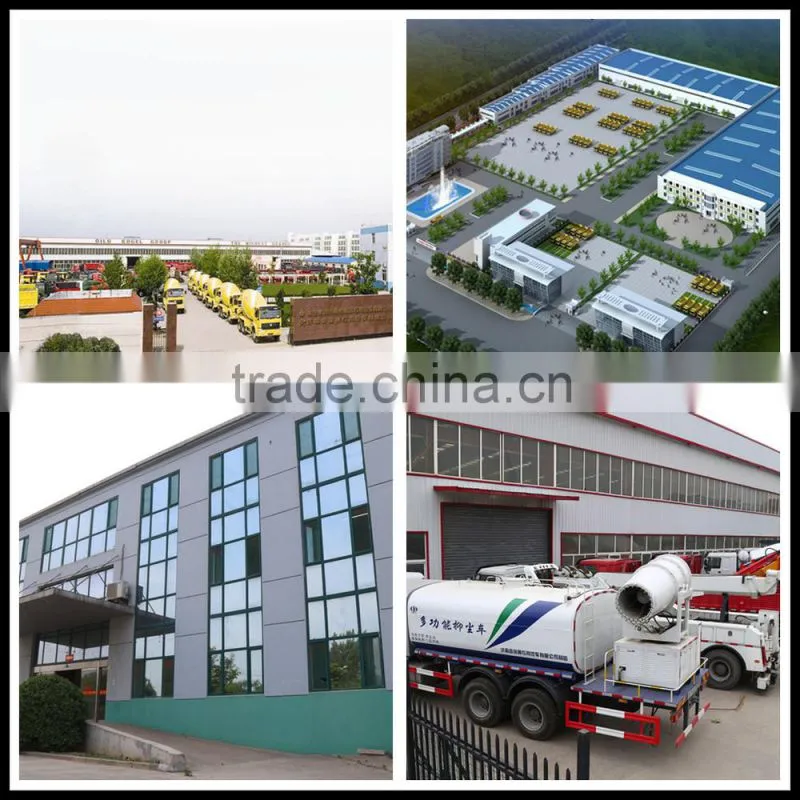

Zhongqi Group Jinan Kaogeer Special Truck Co., Ltd. and its holding company Jinan Haoruitong Special Truck Co., Ltd. (former Jinan Halle Automobile Manufacturing Co., Ltd.) are located in Jinan Industrial Development Park, that engaged in developing and manufacturing special truck and components, the modern professional enterprise is a public announcement management company of the Ministry of Industry and Information and is a major transportation equipment manufacturing enterprise in Jinan City.
The company mainly manufacturing the dump truck, concrete mixer truck, compression garbage truck, sewage suction truck, sprinkling car, powder material truck, municipal engineering vehicles, semi-trailers, new energy automobile, product ramified all over the country and Southeast Asia, Africa, North America, the Middle East, Russia and other markets.
The company has more than 10 years of special truck Research & Development and manufacturing experience, and fully absorbs the leading international technology and innovates independently, to establish the industry-leading system of technical innovation, product development, process development, manufacturing and quality assurance.
The company basis for technological innovation, market demand-oriented, customer-centric, supporting excellent team, to create the world famous special truck brand and build first-class truck manufacturing base.
The company continuous innovation and development, and constantly bring new products into the market, also innovates and manufacturing customized-design products. Sincerely welcome dealers and customers to contact with us and thanks for your patronage!
Package:Nud/waxing
Shipping tools: By RORO ships under the deck.
Shipping terms:FOB / CFR / CIF
Payment conditions: 30% by T/T in advance, the balance shall be effected 7 working days before the shipment.
Delivery Period: within 30 working days after receiving above mentioned deposit or letter of credit.
