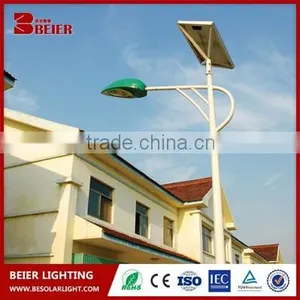

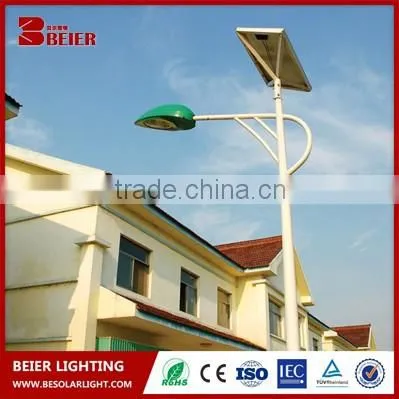

High Efficiency high brightness 12W 3m solar led street light with CE certification 12V solar lighting system
Beier Advantage:
23 years solar designing and exporting experience
Successfully appiled in more than 50 countries
15 working days delivery time
IS09001, CE, RoHS, IEC, FCC, SONCAP, SASO, CCPIT, CCC
- OEM/ODM avaliable
Skilled manufacturer, quality control and technical team
Solar street light features:
1. Above system configurations are designed to allow the lamp to work for 10hrs per night, battery capacity with continuous 3 days backup. The configuration is based on scientific calculation and engineering project experience. For clients' specific project, please tell us the exact installation location and working hours, so that we can provide customized solution and quotation accordingly.
2. The batteries are suggested to be placed in a underground buried PVC battery box. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter. It's wateproofand, heat-dissipative and theftproof, easy for replacement in late period.
3. The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.
4. All Parts are CE/ROHS certified, with high quality level meeting European standards.
5. Please contact us for more detailed technical specification of each part of the system, which can be sent upon client's email request.
System No. |
BE-TYN-001 |
LED Lamp |
12W DC12V; superbright Bridgelux 45mil led chips, led luminance efficiency >120lm/W, IP66 guard level, aluminum housing, 50,000hrs lifespan. |
Solar Panel |
40W 17V, high-efficiency crystalline PV module, IP65 junction box, A class; 20 years continuous power output guarantee |
Controller |
12V auto-sensing, 8A; light/time intelligent control, high-efficient and accurate charging control; IP68 waterproof type, various protections |
Battery |
1pcs*12V40AH, solar special use valve-regulated fully sealed lead-acid battery, deep cycle, free maintenance type; 5-6 years lifespan |
Battery Box |
PVC material, underground-buried type, waterproof and heat-dissipative design; including PVC cable tube |
Pole Set |
3m high, Q235 steel grade; hot-dip galvanized and spray coated treatment, including solar panel bracket, lamp arm and base plate (foundation not included) |
Cable |
RVV2*2.5, international standard, |
Suggestion |
This configuration is recommended for road within 12m~14m width |
How it works:
The solar lamp post 3m produces electricity with two solar modules. The energy is stored during the day in two maintenance-free solar batteries, and used at night to power a 12W high efficency LED light.
Installation of the product:
The 7m solar street lamp post can be installed on the roadside, public parks, car parkings, footpaths, etc. Installation is simple and fast, as it does not require trenching. The 3m solar lamp post is designed to be fixed to the ground on a massive traditional parallelepiped concrete. The lamp stand is shipped with all the bolts and anchor bolts.
Jiangsu Beier Lighting Electrical Co., Ltd.
Beier Lighting established in 1993 and located in Yangzhou,Jiangsu Province China, is an ISO9001:2000, ISO14001, “CCC” & “CQC” ,AAA,CE, SGS approved manufacturer and exporter of solar street lights, LED streetlight, LED housing, solar battery, solar panel and solar system.
We are good at:
1: Designing, producing solar 10W-120W LED street lights
2: Designing, producing 10W-120W Solar Street Lights for outdoor lighting.
3: Producing solar panel from 40W to 300W
OEM Service for solar lighting and PV panel is available.
Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling.
[Q:] Why to choose led solar street light?
[A:] LED solar street light has the advantage of energy-saving, environment-friendly, easy to install, maintenance-free, etc.
[Q:] How to choose solar led street light?
[A:] Our technician will design solar street light according to listed factors:
1. The height of pole
2. The working time of solar street light each night you need
3. The proportion of the rainy and cloudy days in installation place of solar street light
[Q:] Can I have the sample of solar street light?
[A:] Suer, you can order the sample for testing the quality of solar street light, but the price of sample is different from the large quantity.
[Q:] Can I have my own logo on the solar street light?
[A:] Yes, OEM service is available for us!
