High Precision Wax Injection Moulding Machine Casting Machine
Machine features:
1. This machine is applied in investment casting industry to shape many kinds of medium and small scale wax patterns of complicated shape, high quality and great precision;
2. Model MMY11-2-10 adopts PLC electric control and has strong adaptability to environments and low malfunction ratio;
3.It can well coordinate different wax injection pressures to improve the surface quality of wax pattern to the highest extend.
Main Technical Parameter:
Name
| Double site no replacement cylinder hydraulic wax injector machine | |
Model | MMY6.3-2-8 | MMY6.3-2-10 |
Rated pressure,Mpa | 6.3 | 6.3 |
Power, V | 380VAC | 380VAC |
Installed power, KW | 5.5 | 14.5 |
Mold closing force, T | 8 | 10 |
Temperature control range,0C | 30-80 | 30-80 |
System pressure, MPa | 7.0 | 14.0 |
Wax injection pressure, MPa | 2-6.3 | 2-11 |
Wax injection TMPE, | 3090 | 3090 |
Wax cylinder volume, L | 80 | 80 |
Platen speed close, mm/S | 34 | 42 |
Injection wax speed, L/S | 0-0.3 | 0-0.3 |
Injection wax time, S | 0-99 (can adjust) | 0-99 (can adjust) |
Wax injection quantity per time, L | 0-2.4 | 0-2.4 |
Work Area Size(L*W*H), mm | 500*400*300 | 520*400*360 |
Contour Size(L*W*H), mm | 2000*800*1600 | 2350*1270*1800 |
Weight, KG | 1500 | 1700 |
The investment casting (Lost wax casting )Method can any complicated structure,
precision product and high production product.

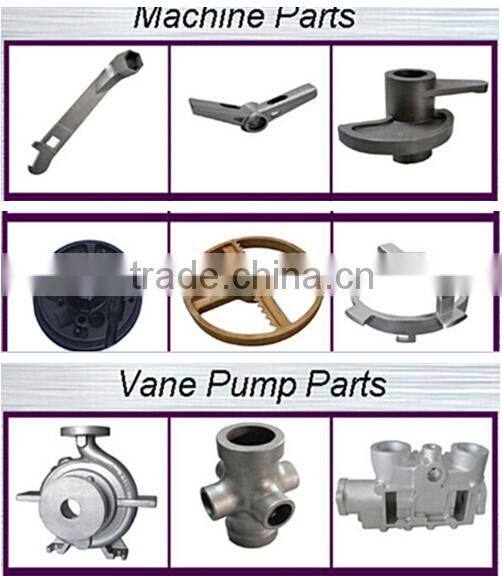

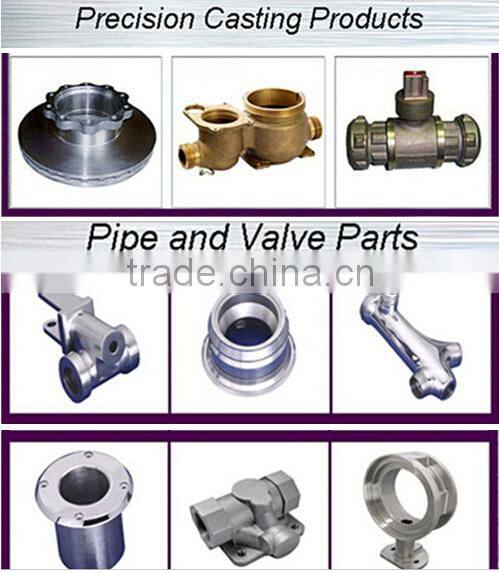

The products material can be stainless steel,copper,iron,steel,Ti alloy etc.
Finish products feature:high precision and good surface quality also good
mechanical properties.
We provide the whole investment casting process equipment,
include moulding design,making,teach casting
method and technical support also hot-sell and with a high
reputation in Vietnam,Malaysia,Iran,Dubai,Philippines etc.
1, One year warranty service.
2, Sending professional engineer to installation,
debugging and training.
3, Provide video for teaching, installation instruction, and other
relevant technical documents.
4, We have more than 20 years experienced casting engineer to
solve any your problem.
