Standalone reader for paid services SmartCryptoCredit

Specifications

If you really need high security level for your access control system you have found it! The solution is Smart Crypto series devices made by Polimex Holding Ltd. Our specialized team has developed a new and unique technology for high security protection of the communication between RFID reader and
RFID card. This new technology gives you ability to protect the data transfer between card and reader, which is additional security against doubling/copying RFID cards and increases the service quality.

The Smart Crypto system consists 3 types of devices :

• RFID reader with high security level - SmartCryptoReader – this is a reader with standard wiegand 34 bit communication for integration with existing system.

• Standalone reader for paid services SmartCryptoCredit – this is a standalone reader with internal controller for direct control of paid services

• USB RFID reader with read and write function SmartCryptoUSB – this reader is used for programing, adding and deleting balance in RFID cards.

Proximity (RFID) reader with high security level - SmartCrypto Reader

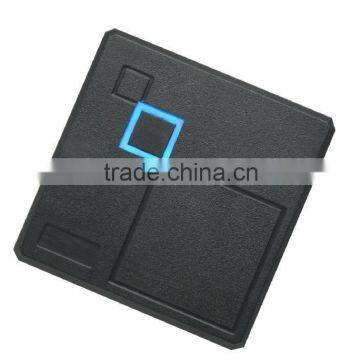

SmartCryptoReader is a high-tech RFID reader with high security level. It is designed for buildings which need higher security level . Its communication with cards is protected - encrypted with the help of specially developed algorithm. The reader has standard output Wiegand 34bit output which means it can be connected with most of the controllers produced all over the world.

The device is personally locked with special code which is individual for each client . Only specially programmed cards can work with each SmartCrypto reader. When you purchase this type of reader we make a “master” card with special code saved in the internal memory. Later this code is used for creating personal cards and readers which can work only together. Other cards can not work with the encrypted reader. Thus you can be sure that your system is highly secured because your card can not be copied / duplicated and the SmartCrypto reader works only with your encrypted cards.

AUTONOMOUS RFID READER FOR MANAGEMENT OF PAYED SERVICES – SMARTCRYPTO CREDIT

SmartCryptoCredit reader is a high-tech device which is developed by Polimex Holding Ltd. It is used for managing payed services in places where there is no possibility for wiring or building a permanent communication line . The reader has RS232 and 485 communication port, OC output and input. This makes it suitable for standalone mode or for communication mode with other devices or software. The built in outputs and inputs makes the control of locking devices possible.

SmartCryptoCredit contains all the credit distributed between all SmartCrypto Cards. Also it works only with SmartCrypto Cards which have a loaded credit inside for payed services. This credit is loaded by using SmartCryptoUSB programmer which is described below.

Each reader can be set to take different credit from user cards. This makes SmartCrypto suitable for many services with various prices.

Also you can be sure that you system is highly secured because your card can not be copied / duplicated and the SmartCrypto reader works only with your encrypted cards.

USB PROXIMITY READER PROGRAMER - SMARTCRYPTO USB

SmartCryptoUSB is proximity high-tech desktop reader which is developed by Polimex Holding Ltd. It is used for two operations: reading and writing data in user cards which are working with SmartCryptoCredit. The device uses standard USB cable for communication and power supply which makes it compatible with any mobile or desktop PCs without using additional hardware.

A specialized software is used to manage SmartCryptoUSB device. It gives the possibility to load or take credit from SmartCrypto Cards. Also the total credit balance can be stored in the reader. When a user card is loaded the credit balance is taken from the SmartCryptoUSB reader. When the USB reader's credit is empty you can not load user cards any more until you load the SmartCryptoUSB.

This coherence gives a lot of companies the ability to take control of payed services and products connected with their distributors or other contractors.

Example:

A distributor receives an equipment with installed SmartCrypto device and a SmartCryptoUSB for loading user credit in RFID cards. When SmartCryptoUSB's total credit is finished the distributor can load it only from his provider.
