Specifications
New SKT-100 SUPER KEY TOOLWidely auto accessories range
high quality
wholesales and retail
New SKT-100 SUPER KEY TOOL
The STK-100 is a device for programming of the transponders. The SKT-100 performs the following functions:
1, Reading and writing keys with transponders, operating at 125 kHz and 134,2 kHz frequency with AM (amplitude modulation) and PM (phase modulation). That chips are transponders produced by Texas Instrument, Atmel, Sokymat, Phillips and other companies.
Supported transponder type:
Read-Only (Fixed-code)
MEGAMOS (13) (copy to T5, PCF7930, PCF7935)
PHILIPS (33) (copy to T5, PCF7930, PCF7935)
TEMIC (11) (copy to T5)
TEMIC (12) (copy to T5) >> MAZDA, MB Spriner
TEXAS (4C) (Read-Only; copy to Silca EH1, EH2 / Keyline Emulators) >> TOYOTA, FORD, etc.
Read-Write
MEGAMOS - CRYPTO - (48, 48M)
PHILIPS - CRYPTO - (40) >> OPEL
PHILIPS - CRYPTO - (42) >> VAG, FORD Galaxy
PHILIPS - CRYPTO - (44) >> VW
PHILIPS - CRYPTO - (45) >> PEUGEOT
PHILIPS - CRYPTO2 - (46)
T5 (for coping 11,12,13,33)
TEXAS - CRYPTO DST (4D) (ID 60,61,62,63,xx)
TEXAS - CRYPTO DST+ (4E) (ID 64)
2. Recovering the lost keys(transponders) with data read from the car immobilizers memory using built-in calculators.
3. Generationing prepared keys for binding key to immobilizers by means of dealer equipment or other.
Software Setup
It is strongly recommended to study transponder’s datasheet before using SKT-100 device.
The software comes in two versions: portable and with installer. Version with installer, after you run it, installs the necessary drivers and itself to the computer. Portable version consists two files: the first - the installation driver, the second - the program itself, which requires no installation and takes place on any computer. It can be placed on any external storage device.
Consider working with the software. After starting the software you see the operating field. In the upper part is the main menu. Main menu allows you to download the data previously read from the transponder, or store the read data in the file, it is the same choice of the window to work with the internal memory of the device.
Menu RFID-Device is intended for:
Select transponder - select operation windows with a transponder (depending on the type of transponder).
Calc - a choice of calculator for restoration of transponder lost data
Keygen - select generator of the prepared transponder by the type of vehicle
FUNCTION AND SUPPORT
FUNCTION:
1. Read-Only (Fixed-code)
MEGAMOS (13) (copy to T5, PCF7930, PCF7935)
PHILIPS (33) (copy to T5, PCF7930, PCF7935)
TEMIC (11) (copy to T5)
TEMIC (12) (copy to T5) >> MAZDA, MB Spriner
TEXAS (4C) (Read-Only; copy to Silca EH1, EH2 / Keyline Emulators) >> TOYOTA, FORD, etc.
2. Read-Write
MEGAMOS - CRYPTO - (48, 48M)
PHILIPS - CRYPTO - (40) >> OPEL
PHILIPS - CRYPTO - (42) >> VAG, FORD Galaxy
PHILIPS - CRYPTO - (44) >> VW
PHILIPS - CRYPTO - (45) >> PEUGEOT
PHILIPS - CRYPTO2 - (46)
T5 (for coping 11,12,13,33)
TEXAS - CRYPTO DST (4D) (ID 60,61,62,63,xx)
TEXAS - CRYPTO DST+ (4E) (ID 64)
3.generant special transponder for following car.
AUDI A8 new (PCF7936)
BMW E60,E65 (PCF7936)
PORSCHE CAYENNE (PCF7936)
MITSUBISHI (HITAG2, biphase)
IVECO DAILY, TRUCKs (PCF7936)
OPEL ASTRA H (PCF7946, HITAG2)
HONDA CIVIC 2006 (HITAG2)
MEGAMOS VDO (SILCA , T5)
MEGAMOS HONDA /USA/ (SILCA , T5)
MEGAMOS 13 (SILCA , T5)
OPEL IMMO2 (ID40)(PCF7935)
NISSAN NATS4 (ID41)(PCF7935)
VAG/FORD GALAXY (ID42, ID44)(PCF7935)
MITSUBISHI/VOLVO (ID44)(PCF7935)
PEUGEOT 206/406 (ID45)(PCF7935)
YAMAHA MOTOs (ID60)(DST)
SUZUKI MOTOs (ID62)(DST)
KAWASAKI MOTOs (ID60)(DST)
Generant 4D 60 to 61,62,63,65
4. read some locked transponder, and check cryto from dump.
5.immo pin code calc by dump.

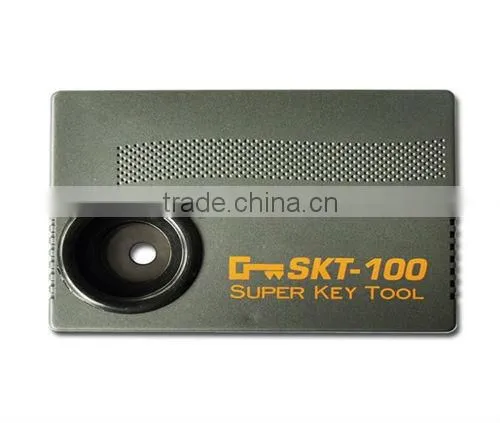

Product Picture
