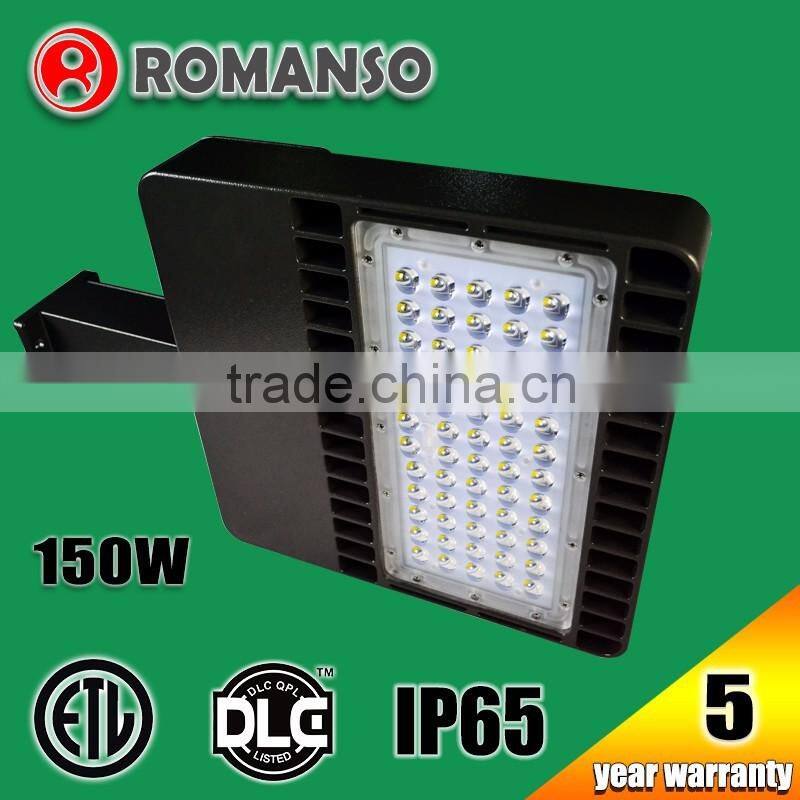

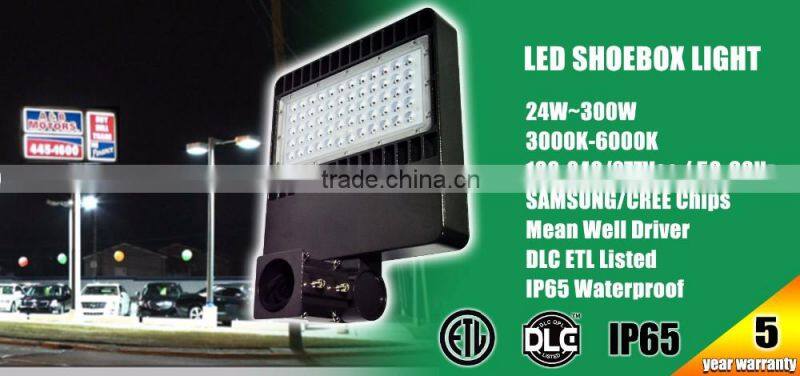

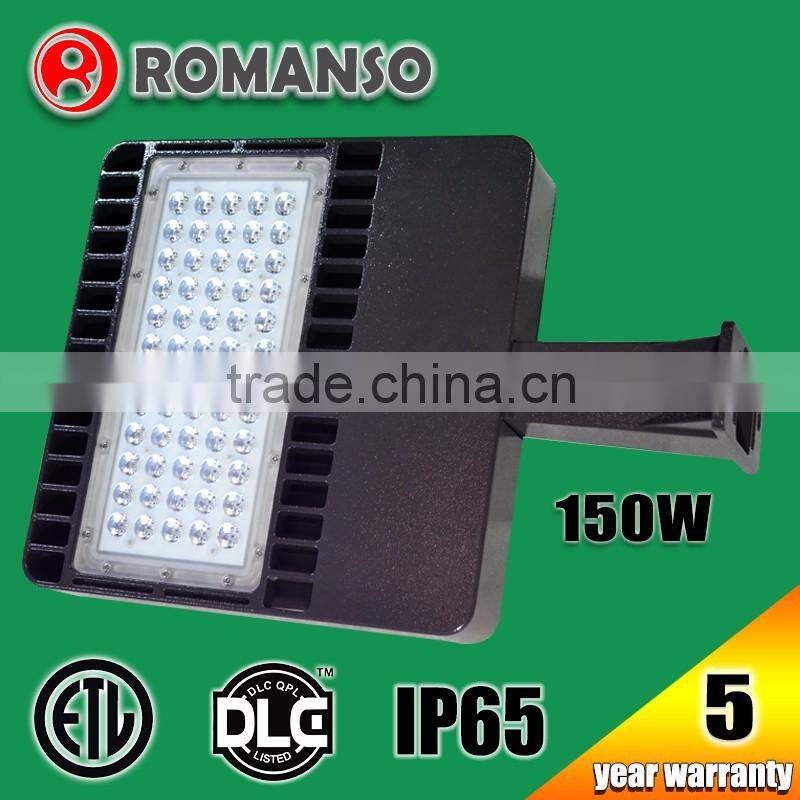

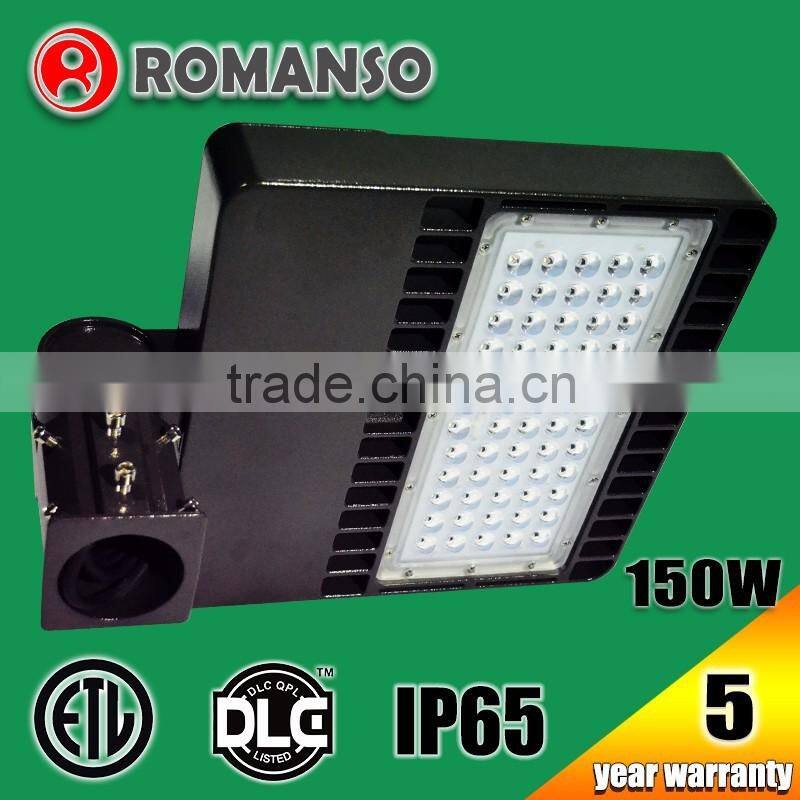

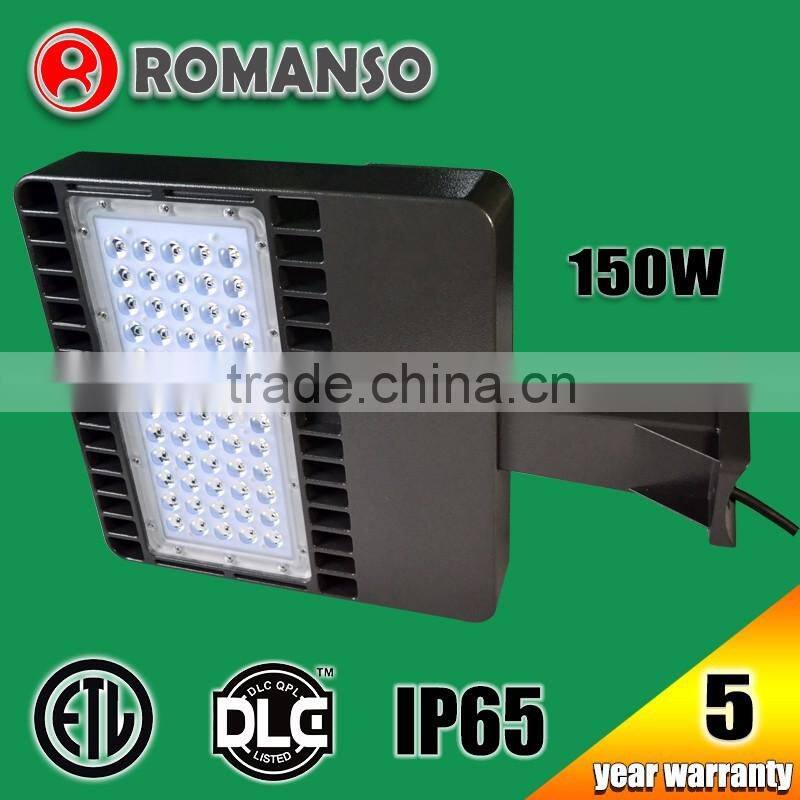

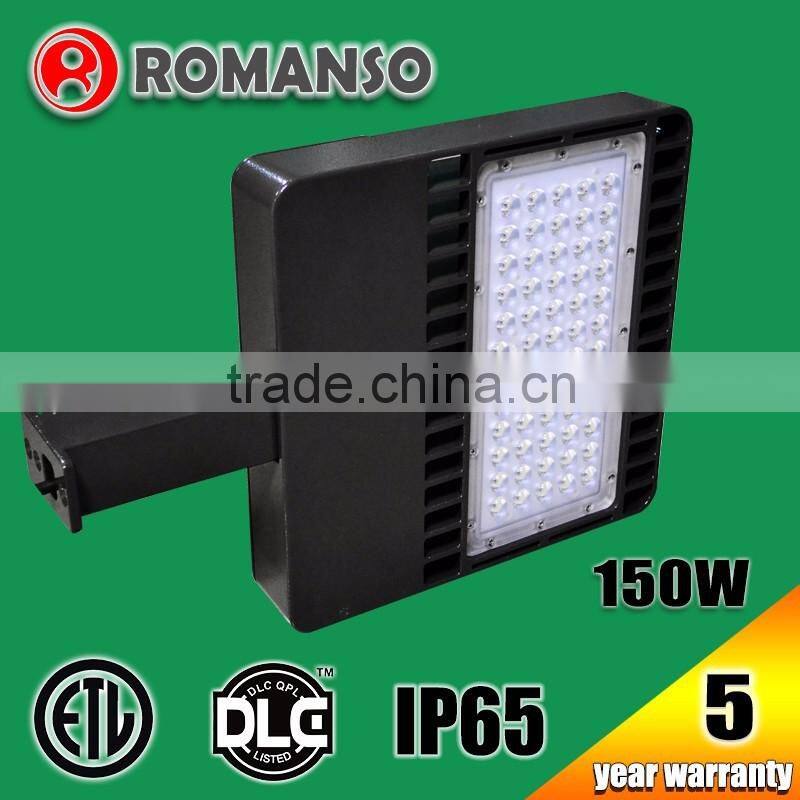

DLC ETL Listed 150w Tennis Court LED Shoebox Light with Meanwell Driver
| Product Parameters: |
| Input Voltage | 100-240/277VAC / 50-60Hz |
| Power | 150W |
| PF | >0.90 |
| Operating Temperature | -40 ~ 50°C |
| Beam Angle | 90*120° / 85*135° ° |
| Light Source/Count | Samsumg or Cree, 60pcs |
| Lamp Driver | MEAN WELL |
| LED Luminous Efficiency | 14250lm |
| IP Rating | IP65 |
| Lamp's Efficiency ( %) | >95 % |
| Color Temperature Standard | Warm White: 2,700 ~ 3,500 K |
| Natural White:4,000~5,000 K | |
| Cool White: 5,500~6,500K | |
| Color Rendering Index(CRI) | Ra>70 |
| LED Emitter Life | 50,000 hours |
| Weight | 6.8KG |
| Size | 343*433*176mm |
| Applications | Road, parking area, highway, residential area etc. |
| Products Advantage: |
1. Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
2. Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
3. Installation beam angle -90°~ +90° changeable.
4. Unique and Beautiful appearance,using imported Samsung/Cree LED, more than 120lm/w.
5. Lamp luminous efficiency reaches 90lm/w
6. Meanwell Driver are applied.
7. Six kinds of installation brackets.
8. IP65 Waterproof for outdoor application.

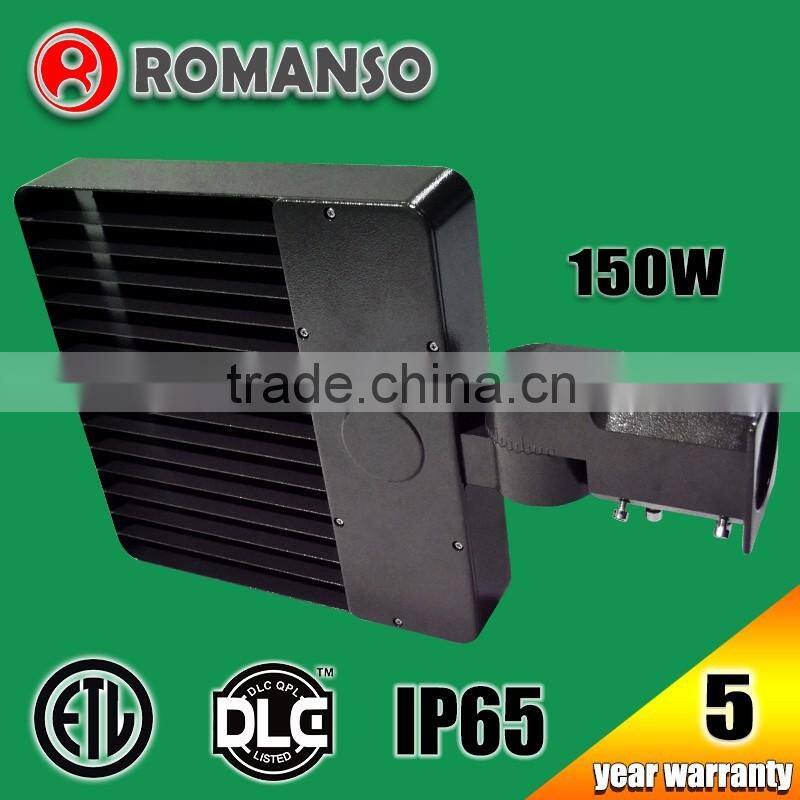

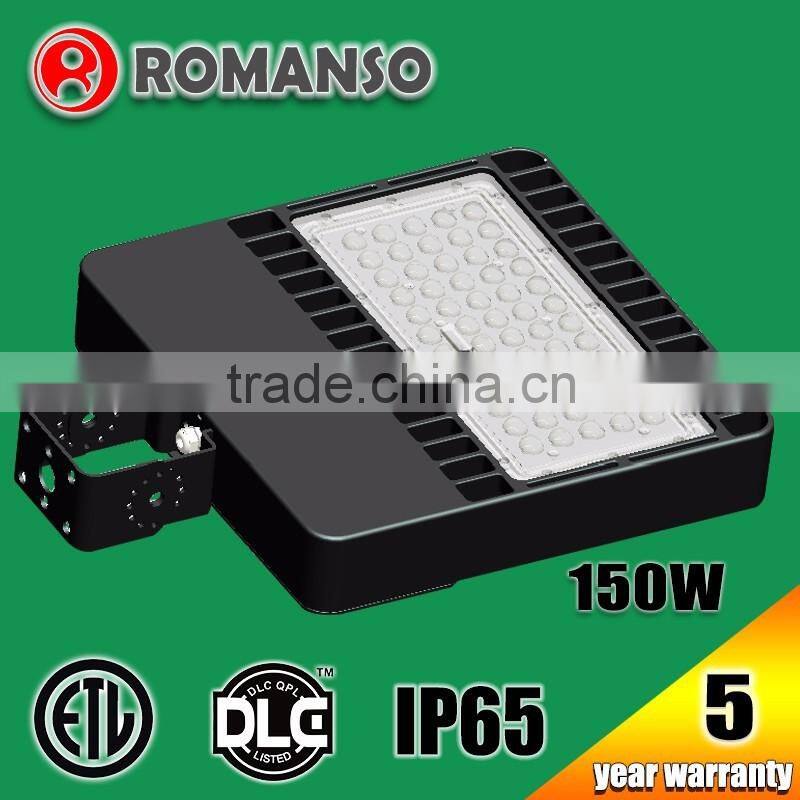

| 150W LED Shoebox Pictures for Six Kinds of Connector: |
A Kinds Connector:

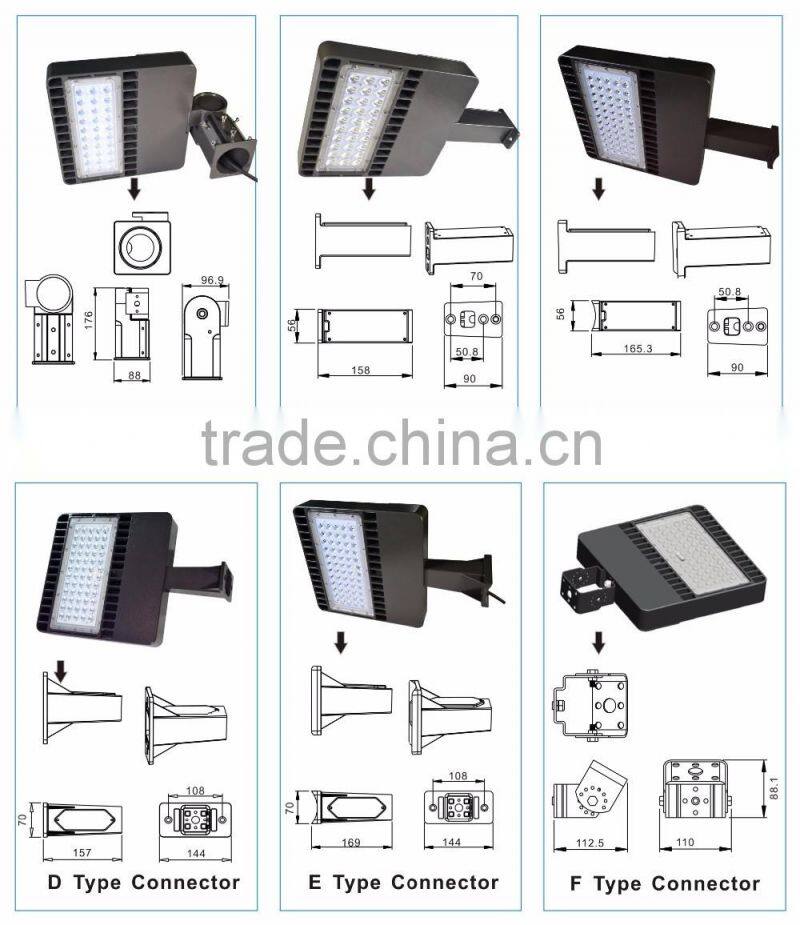

| The Size for Six Kinds of Connector: |
led shoebox light / led parking lot lighting / parking lot led lights

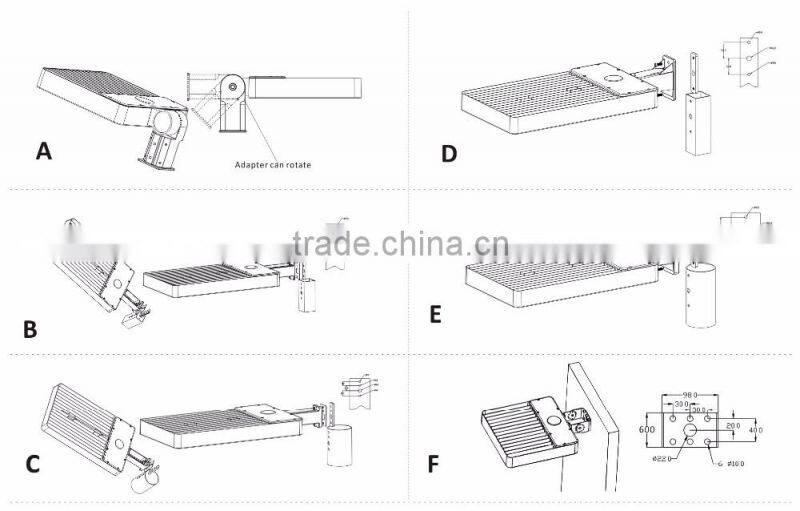

| Installation for Six Kinds of Connector: |

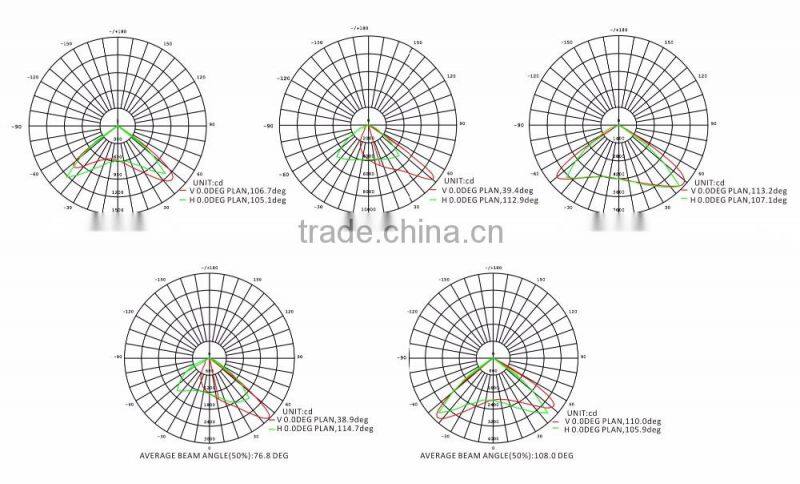

| Light Distribution Curve: |
If you want more information about product installation image or Size image, and other questions, please contact me now!

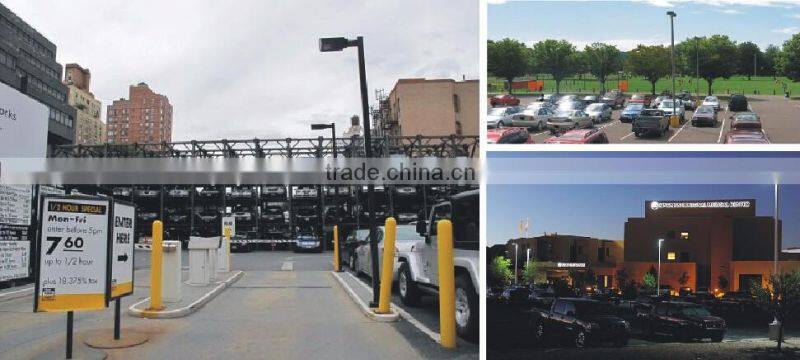

| Application of LED Shoebox Light: |
LED shoebox light ideal for parking areas, courtyards, commercial area and site lighting, airports, roadways, campuses and streetscapes.
| Abuot US: |
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples need 3-5 working days, mass products need 7-10 days.
Q3. How do you ship the goods and how long does it take to arrive?
A:Express(DHL,UPS,Fedex or TNT.), Air or Sea shipment is available depends on your need. It usually takes 3-5 days to arrive except Sea transportation.
Q4. How to proceed an order for led light?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If mockup is ok, finally we will go to mass production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, our defective rate is less than 0.2%, so there is no big problem to the lights. Secondly, we usually offer 2 years warranty for our lights. Thirdly, during the guarantee period, we will resend new lights with the new order for small quantity. If there are many lights don't work, we can repair them, then resend them to you.
