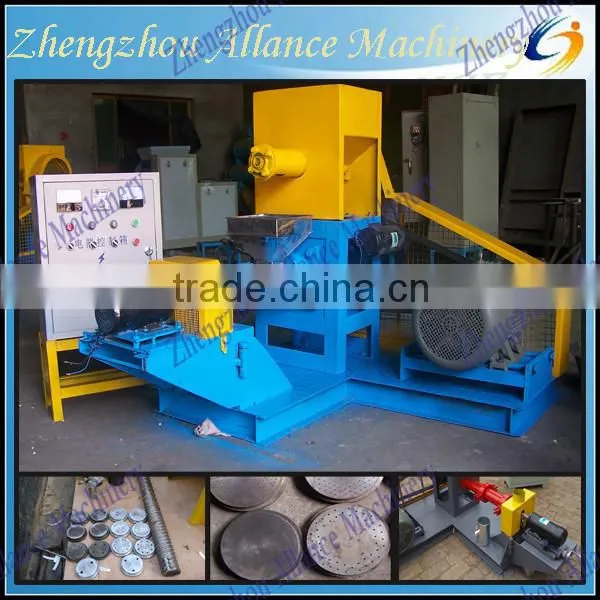

Zhengzhou Allance Fish Feed Pellet Extruder Machine
I. Introduction for Fish Feed Pellet Extruder Machine
It is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. The puffing fish feed pellets can float on the water surface for over12 hours without water polution. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.
II. Working principle for Fish Feed Pellet Extruder Machine
After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.
III.Features for Fish Feed Pellet Extruder Machine
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc
2.The finished pellets can keep floating for 12 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment
4.Floating fish feed machine can make pellet from diameter 1mm-12mm just by changing the mould.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
IV.Technical datas for Fish Feed Pellet Extruder Machine
Dry Type Fish Feed Pellet Extruder Machine
| Model | Capacity (t/h) | Main Motor Power(kw) | Screw Feeder Power(kw) | Screw Diameter(mm) | Cutter Power(kw) |
| DGP50 | 0.06-0.08 | 11 | 0.4 | φ50 | 0.4 |
| DGP60 | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 |
| DGP70 | 0.18-0.25 | 18.5 | 0.4 | φ70 | 0.4 |
| DGP80 | 0.3-0.35 | 22 | 0.4 | φ80 | 0.6 |
| DGP90 | 0.4-0.45 | 37 | 0.4 | φ90 | 1.5 |
| DGP120 | 0.5-0.7 | 55 | 0.4 | φ120 | 2.2 |
| DGP135 | 0.8-1.0 | 75 | 0.4 | φ133 | 2.2 |
| DGP160 | 1.2-1.5 | 90 | 0.75-1.1 | φ155 | 3.0 |
| DGP200 | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0-4.0 |
Wet Type Fish Feed Pellet Extruder Machine
| Model | Capacity(t/h) | Main Power(kw) | Feeding Power(kw) | Screw Diameter(mm) | Cutter Power(kw) | ConditionerPower(kw) |
| DSP60 | 0.18-0.20 | 15 | 0.4 | 60 | 0.4 | 0.37 |
| DSP70 | 0.30-0.35 | 18.5 | 0.75 | 70 | 0.4 | 1.1-1.5 |
| DSP80 | 0.40-0.45 | 22 | 0.75 | 80 | 1.5 | 1.5-2.2 |
| DSP90 | 0.50-0.55 | 37 | 1.1 | 90 | 2.2 | 2.2-3.0 |
| DSP120 | 0.7-0.8 | 55 | 1.1 | 120 | 2.2 | 2.2-3.0 |
| DSP135 | 1.0-1.2 | 75 | 1.5 | 135 | 3.0 | 3.0-4.0 |
| DSP160 | 1.8-2.0 | 90 | 2.2 | 155 | 3.0 | 4.0 |
| DSP200 | 3.0-5.0 | 132 | 2.2 | 195 | 4.0 | 5.5 |
V. Complete line for Fish Feed Pellet Extruder Machine
Popular final products for Fish Feed Pellet Extruder Machine
We will provide you with enthusiasm, patience and considerate service!
1. Professional solution design, high quality machines, competitive prie.
2. Consult and answer all your questions within 24 hours.
3. Factory layout design according to your requirement.
4. Formulation available.
5. Fast delivery:
15 working days for single machine
40 working days for complete line
6. Professional engineer, overseas installtion and commissioning, trainning.
7. Warranty: 3 years
8. Service life long technical support.
9. Payment: We accept TT, Western Union,L/C,Trade Assurance,etc.
Warmly welcome your visit to our factory for investigation & test-run on the machine!
We are professional manufacturer for feed pellet machines with decades experience. Main machines have CE,BV approval. We have exported widely to Southeast Asia, Africa, America market. Below are the pics for certificate and our delivered plants.
Q: What kind of fish feed pellet machine do we supply?
A: We have two types floating fish feed pellet machine, one is dry tye fish feed extruder and the other is
wet type fish feed machine. If you want to make sinking fish feed, We recommend ring die and flat die
feed pellet mill .
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also
can make pellets for cat, dog, etc.
Q: What size of pellet can be made by your fish feed pellet machine?
A: The size of pellet is based on the diameter of the die moulds. We can customized die moulds with
diameter of 0.9-15mm.
Q: Do you supply the whole fish feed product line?
A: Yes. We can supply a fish feed product line include feed hammer mill, powder mixer, fish feed pellet
extruder, feed pellet dryer, fish feed pellet cooler, fish feed pellet weighing and packing machine.The capacity
is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: It totally based on the situation of your fish. We can offer free formula to our customers.
